Machine vision lenses

35 mm, 2/3", 10 MP, C-mount Machine Vision Lens, F2.8 (LS-FFL-0722)

Model LS-FFL-0722

Focal length35 mm
MountC-mount
Sensor2/3"
ApertureF2.8
Resolution10 MP

$359.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

35 mm, 2/3", 10 MP, C-mount Machine Vision Lens. FA C/CS: Industrial FA machine vision lens C mount'. At a glance: focal length 35 mm; format 2/3"; resolution 10 MP; aperture F2.8; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0722
Format	2/3"
Angle of view (2/3", DxHxV)	16.3 x 10 x 13.1 deg

Optics

Focal length	35 mm
Aperture	F2.8
Distortion	<0.1%
Back focal length	16.5 mm
M.O.D.	0.1 m
Filter thread	M27 x 0.5

Sensor and imaging

Resolution	10 MP

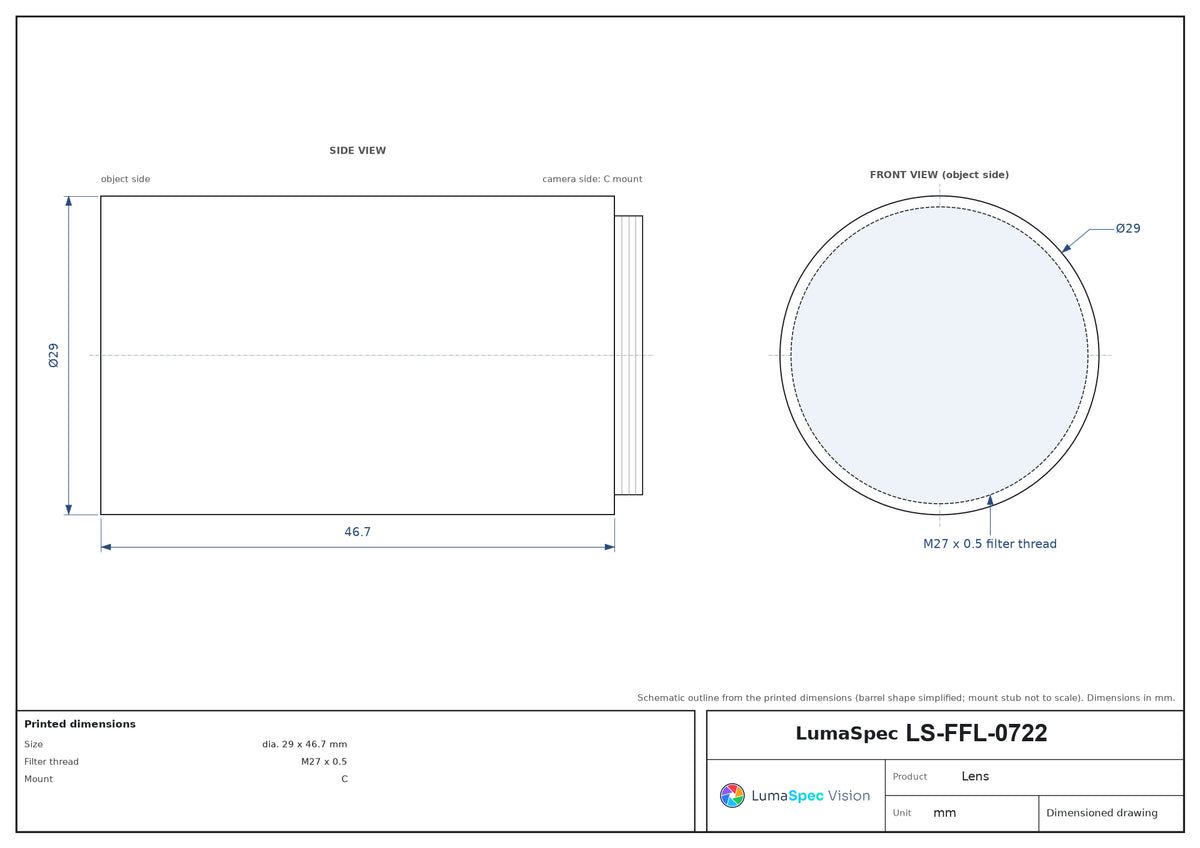

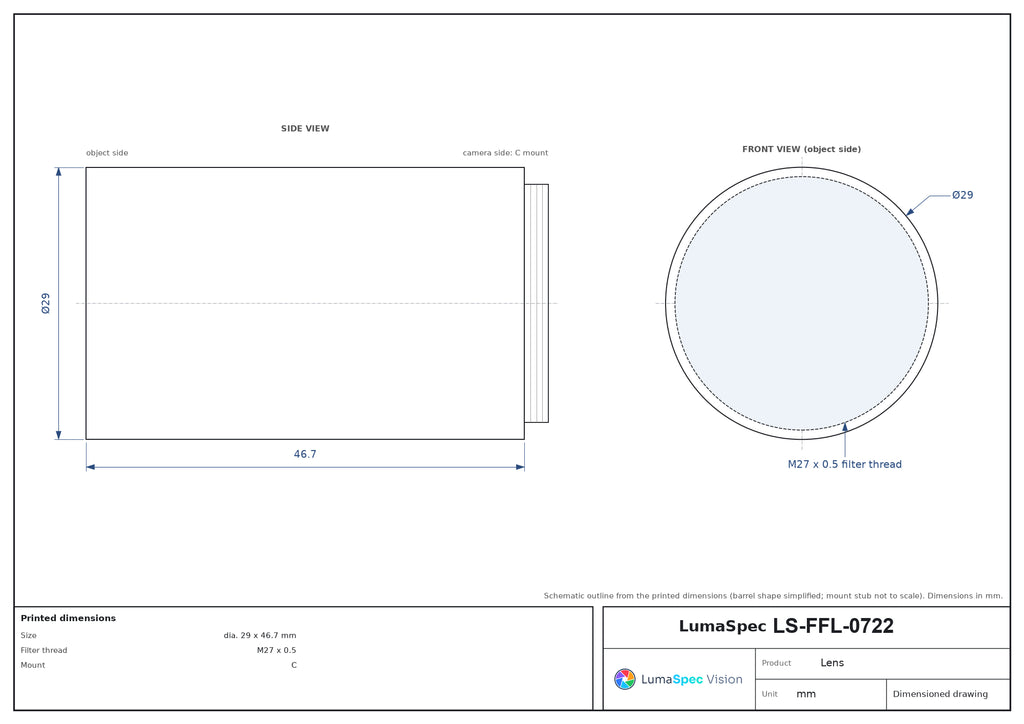

Mechanical

Optical total length	64.2 mm
Size	dia. 29 x 46.7 mm
Mount	C
Shipping weight (estimated)	0.31 kg

Photo shows a representative model of this series; see the specifications for this model.

Other models in the Industrial FA machine vision lens, C mount - machine vision fixed lens (LS-FFL-S95) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-FFL-0718	8 mm, 2/3", 10 MP, C-mount	$309.00	Ships in 2-3 weeks	View
LS-FFL-0719	12 mm, 2/3", 10 MP, C-mount	$309.00	Ships in 2-3 weeks	View
LS-FFL-0720	16 mm, 2/3", 10 MP, C-mount	$319.00	Ships in 2-3 weeks	View
LS-FFL-0721	25 mm, 2/3", 10 MP, C-mount	$339.00	Ships in 2-3 weeks	View
LS-FFL-0723	50 mm, 2/3", 10 MP, C-mount	$389.00	Ships in 2-3 weeks	View
