Machine vision lenses
6 mm F1.6 6 MP C-Mount Machine Vision Lens, 1/1.7" (LS-FFL-0354)
Model LS-FFL-0354
- Focal length6.0 mm
- MountC-mount
- Sensor1/1.7"
- ApertureF1.6
- Resolution6 MP
$189.00
Ships in 2-3 weeks
0.24 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6 mm, 1/1.7", 6 MP C-mount machine vision lens. F1.6 with manual iris and focus locks, 0.15 m minimum object distance and 0.35% distortion in a 39 mm aluminium body with 9 glass elements.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0354 |
|---|---|
| Angle of view, 1/1.8" (H x V) | 69.13 x 54.28 deg |
| Angle of view, 1/2" (H x V) | 61.59 x 48.35 deg |
| Angle of view, 1/3" (H x V) | 46.20 x 36.27 deg |
| Minimum object distance (m) | 0.15 |
| Construction | Aluminium alloy, 9 glass elements |
Optics
| Focal length | 6.0 mm |
|---|---|
| Format size (") | 1/1.7 |
| Aperture | F1.6 |
| Back focal length (mm) | 17.53 |
| Iris | Manual, lockable |
| Distortion (%) | 0.35 |
| Filter screw size | M37 (pitch 0.5 per the spec sheet, 0.75 per the drawing) |
Sensor and imaging
| Resolution | 6 MP |
|---|
Mechanical
| Mount | C |
|---|---|
| Dimensions (mm) | dia. 39 x 41.5 |
| Weight (g) | 95.8 |

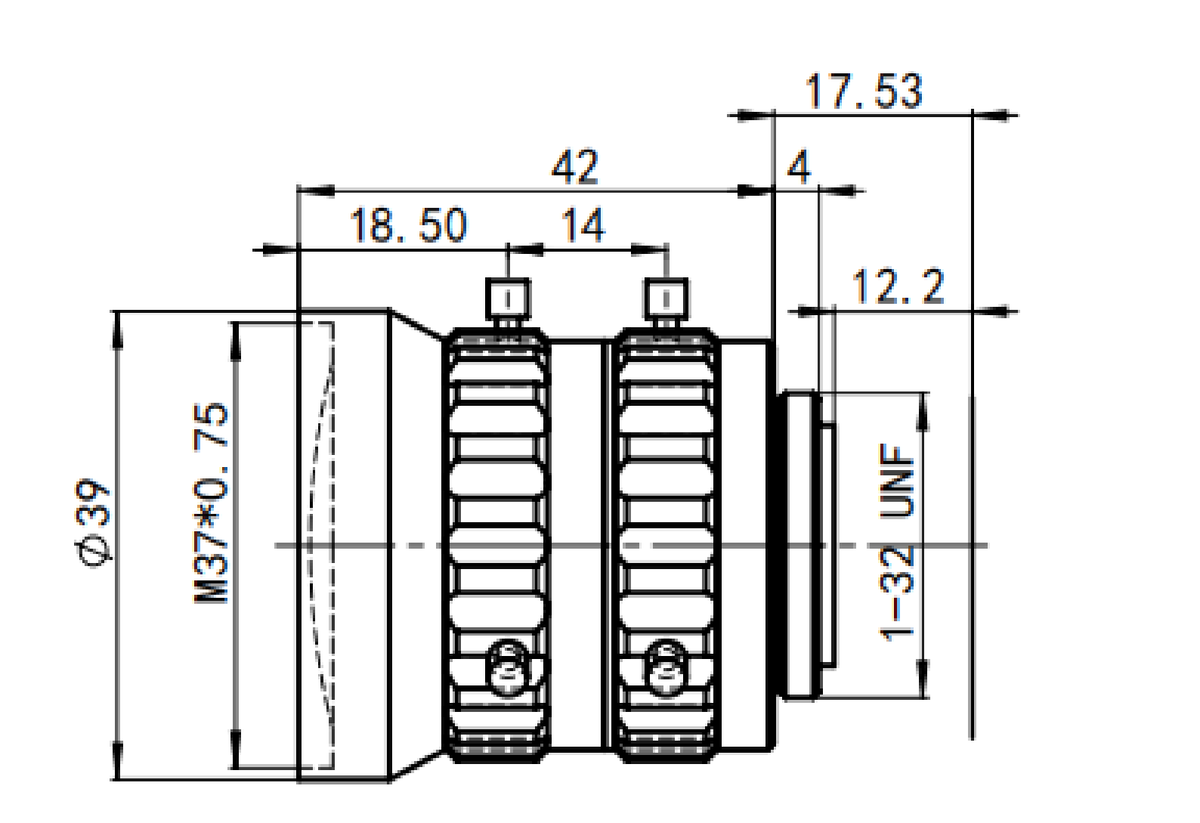

Photo shows a representative lens of this range; see the drawing and specifications for this model.
