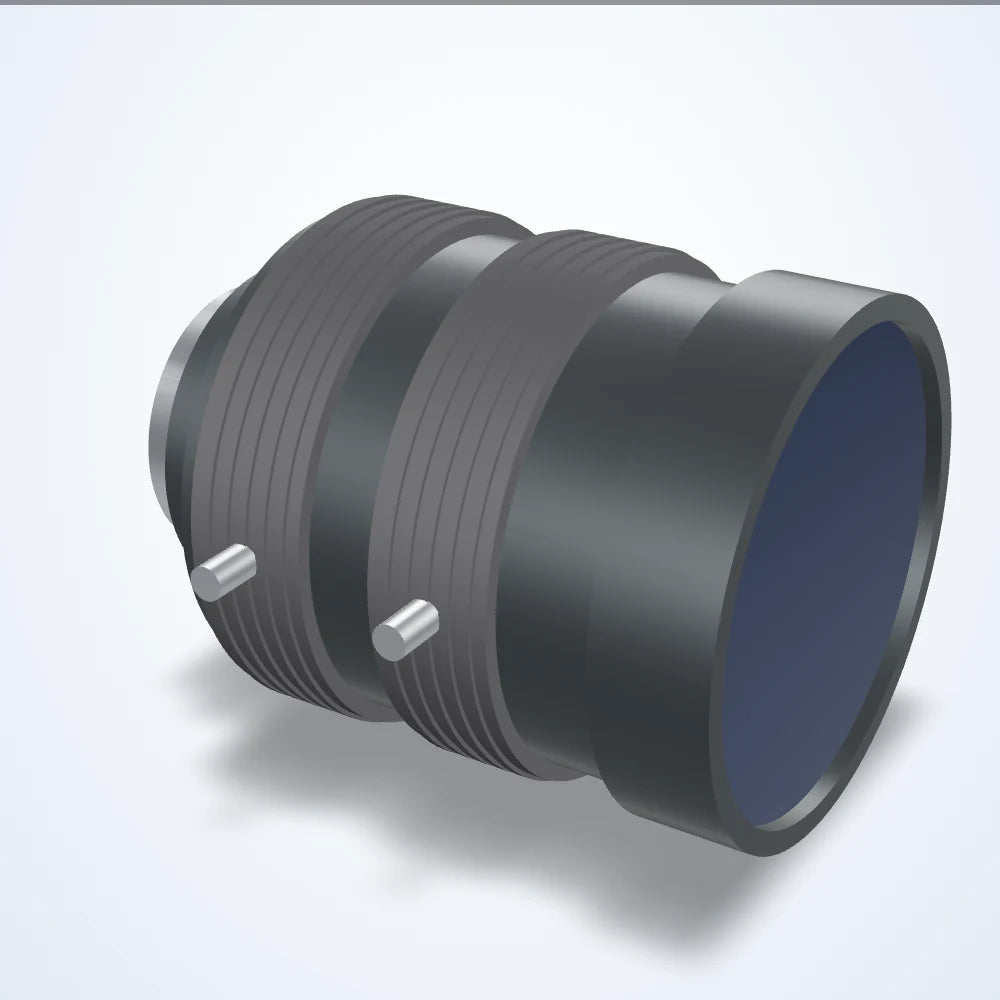

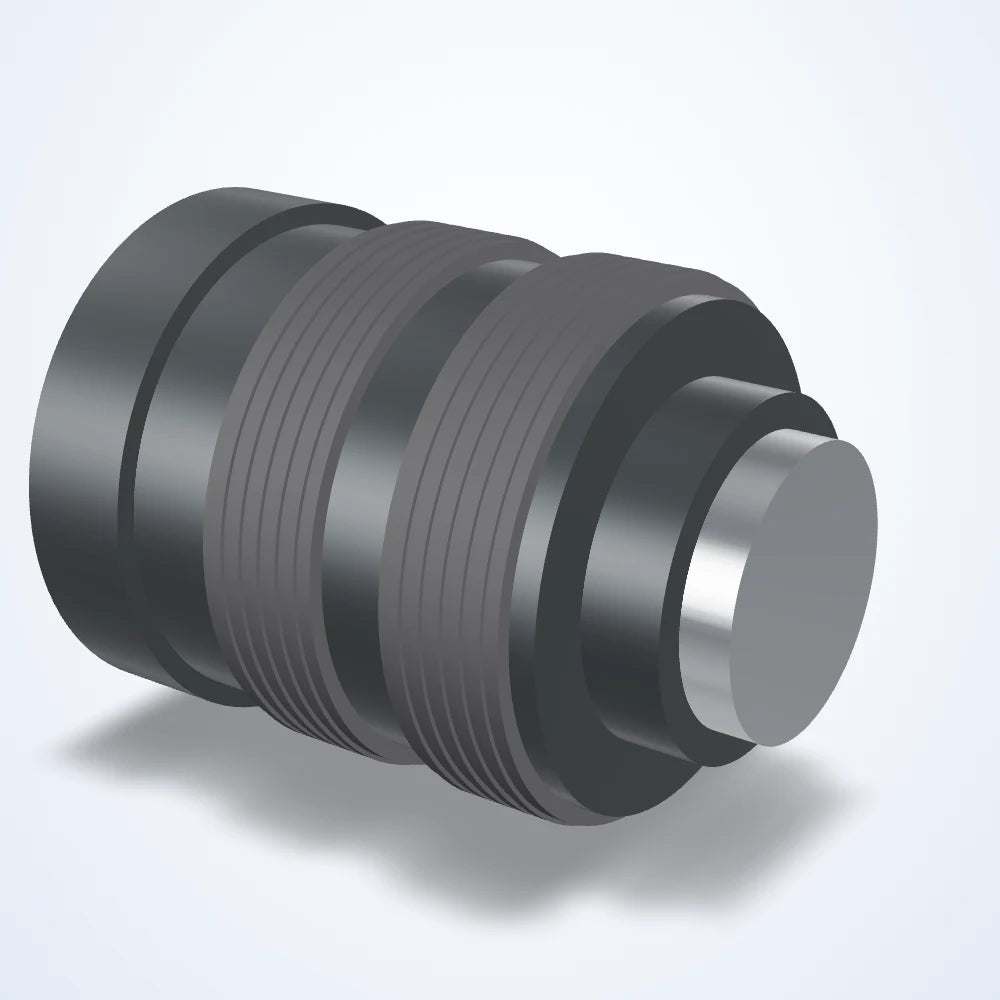

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
5 mm lens, 2/3", C-mount, back focus 10.3mm in air (LS-FFL-0210)
Model LS-FFL-0210
- Focal length5 mm
- MountC-mount
- Sensor2/3"
- Aperture1.8-16
- ResolutionCenter 200/mm, corner 140/mm
$1,259.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0210 |
|---|---|
| Angle of view | H 82.2 x V 66.5 deg (D 95.4 deg) |
| Angle of view @ 1/1.8″ | 71.1° × 56.5° |
| Angle of view @ 1/2″ | 64.9° × 51.1° |
| Angle of view @ 2/3″ | 82.2° × 66.5° |
| Element | 8 elements 9 groups |
| Entrance pupil position | 15.2 (E.P.) |
| Exit pupil | 332.4mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 27.5mm / Rear 14.3mm |
| Lens coating | Wide band multi coating |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Shooting range at mod | 197.0(H)×147.0(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 5 mm |
|---|---|
| Aperture (F) | 1.8-16 |
| Distortion | -0.33% (TV) |
| Back focus | 10.3mm in air |
| Filter thread | M46x0.75 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution center/corner | Center 200/mm, corner 140/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |
Mechanical
| Mount | C-mount |
|---|---|

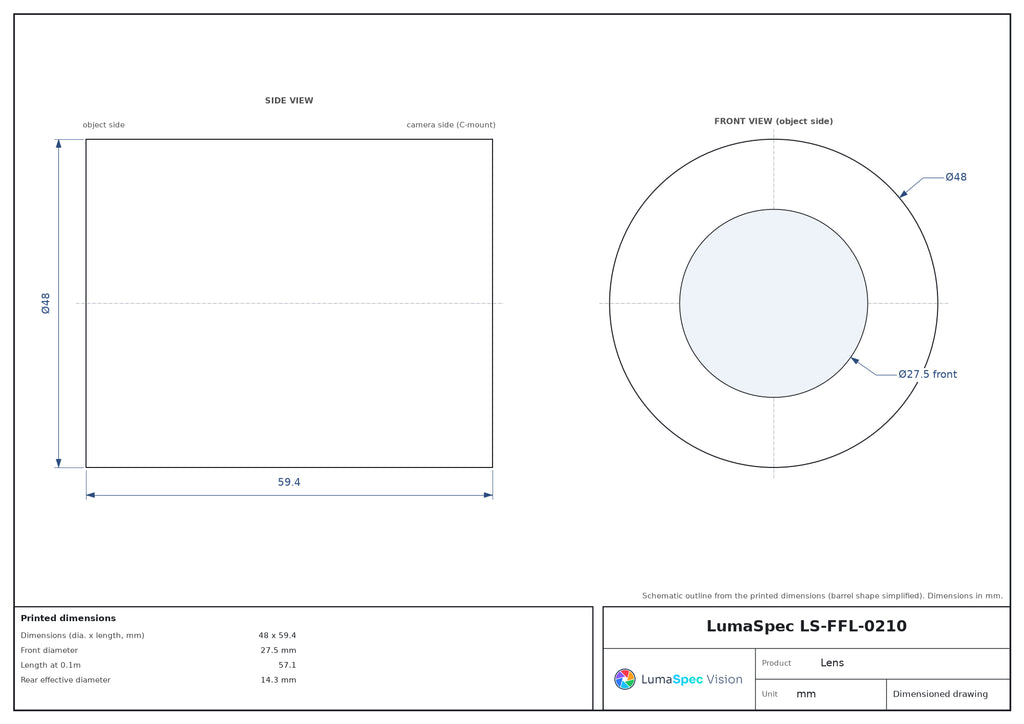

| Dimensions (dia. x length, mm) | 48 x 59.4 |
| Front diameter | 27.5 mm |
| Length at 0.1m | 57.1 |
| Picture size (largest format) | 6.6x8.8mm |
| Weight (g) | 120 |
