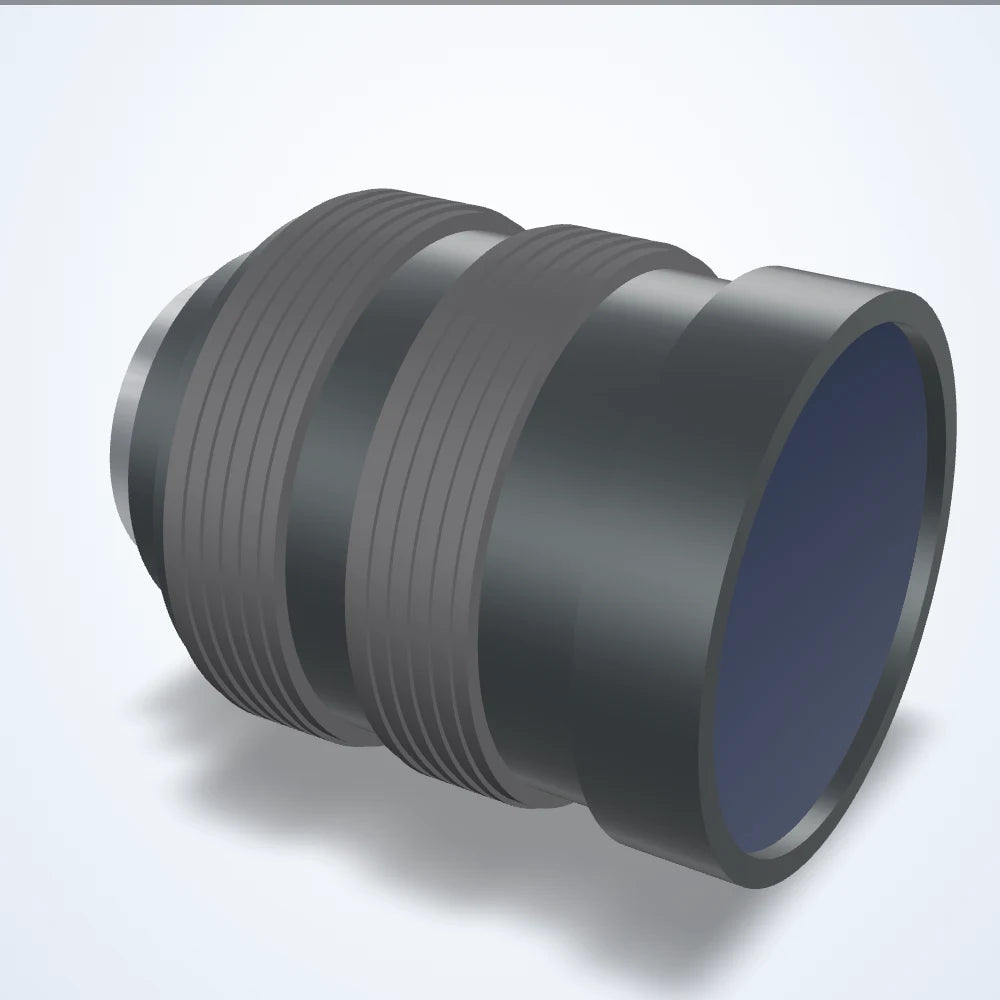

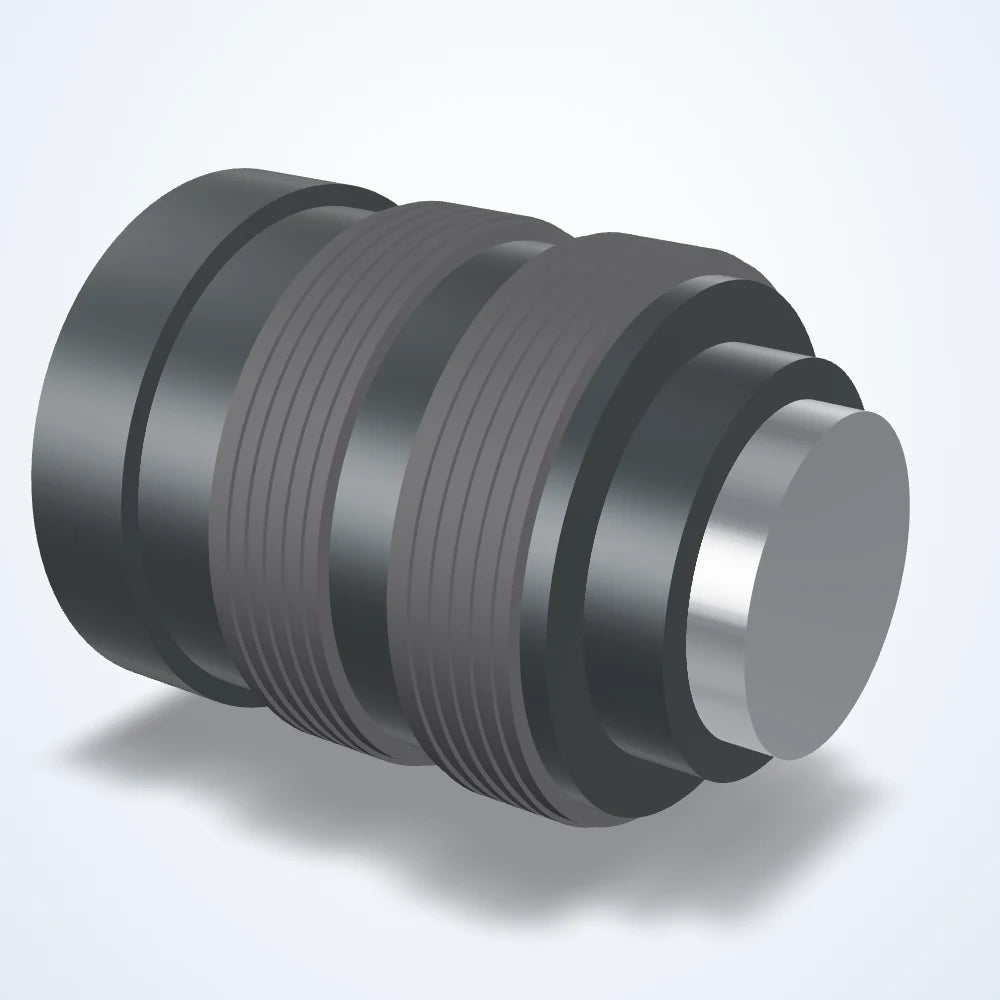

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 1", C-mount, F1.4, 2.8, 4, 8, Visible (LS-FFL-0145)
Model LS-FFL-0145
- Focal length16 mm
- MountC-mount
- Sensor1"
- Aperture1.4, 2.8, 4, 8
- ResolutionCenter 120 lp/mm / Corner 100 lp/mm
- Field of viewV 186.2mm, H 251.5mm, D 318.3mm
$449.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0145 |
|---|---|
| Angle of view | 44.3 x 33.6 deg (H x V), 54.3 deg diagonal |
| Angle of view @ 1/1.8″ | 25.3° × 19.0° |
| Angle of view @ 1″ | 44.3° × 33.6° |
| Angle of view @ 2/3″ | 30.8° × 23.2° |
| Exit pupil | -128.5mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 21.5mm / Rear 18.8mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Spectrum | Visible |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 1.4, 2.8, 4, 8 |
| Distortion | -1.0% (TV) |
| Back focus | 12.6mm in air |
| Field of view at mod (1") | V 186.2mm, H 251.5mm, D 318.3mm |
| Filter thread | M35.5x0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 1" |
|---|---|
| Resolution center/corner | Center 120 lp/mm / Corner 100 lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

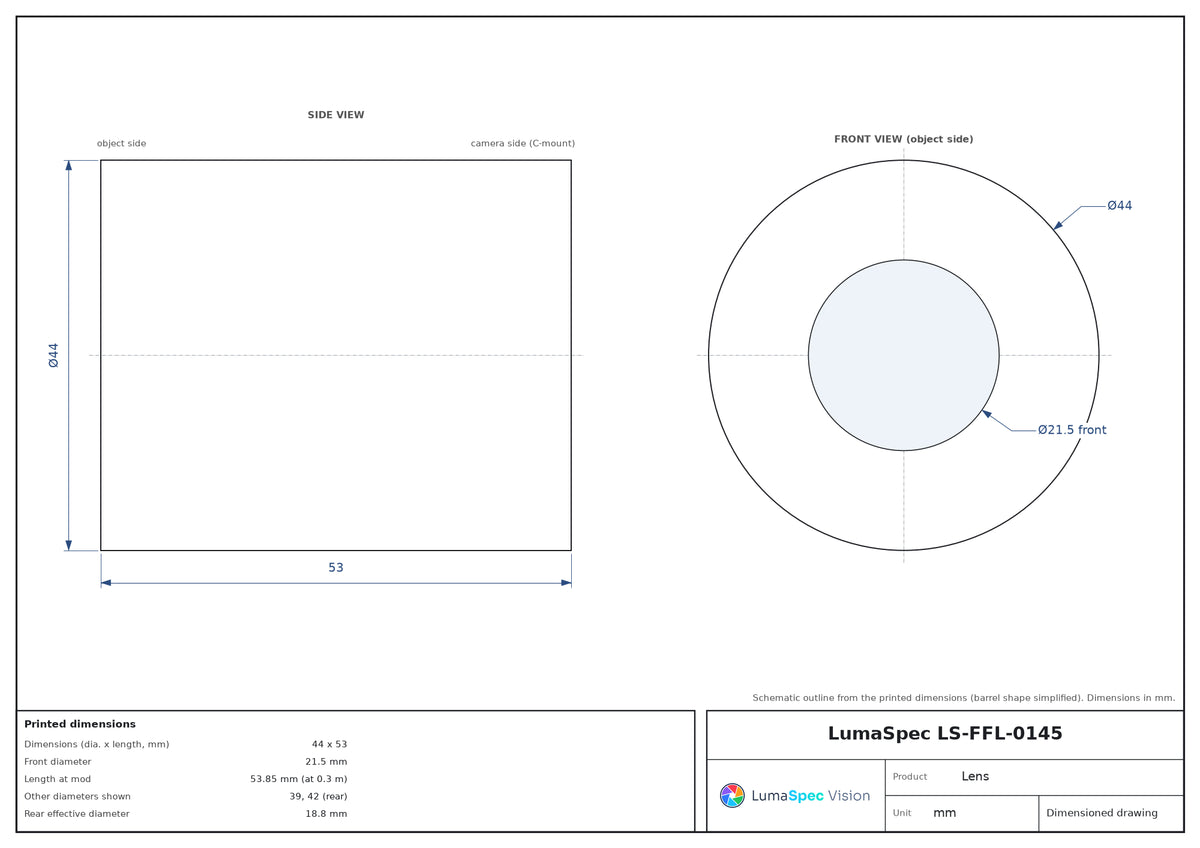

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 44 x 53 |
| Front diameter | 21.5 mm |
| Length at mod | 53.85 mm (at 0.3 m) |
| Mount thread | 1-32UNF |
| Weight (g) | 120 |
