Shadowless lights

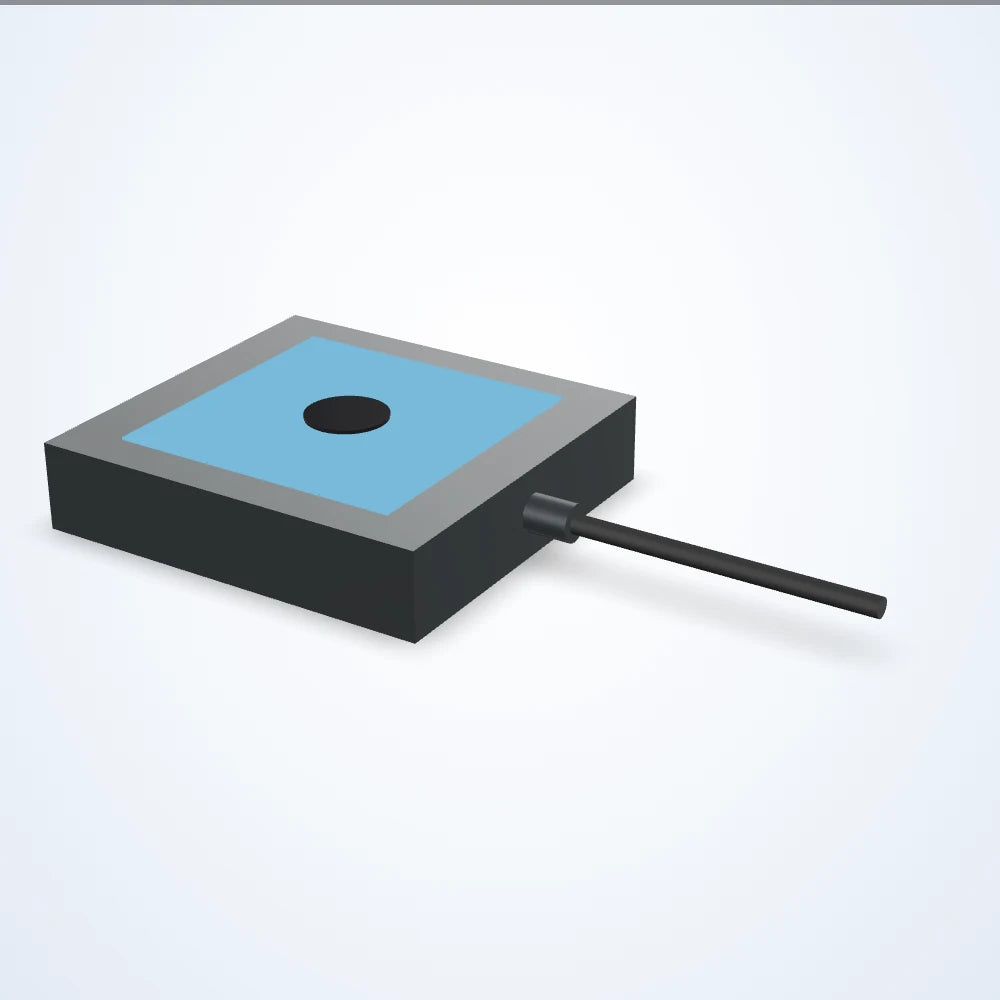

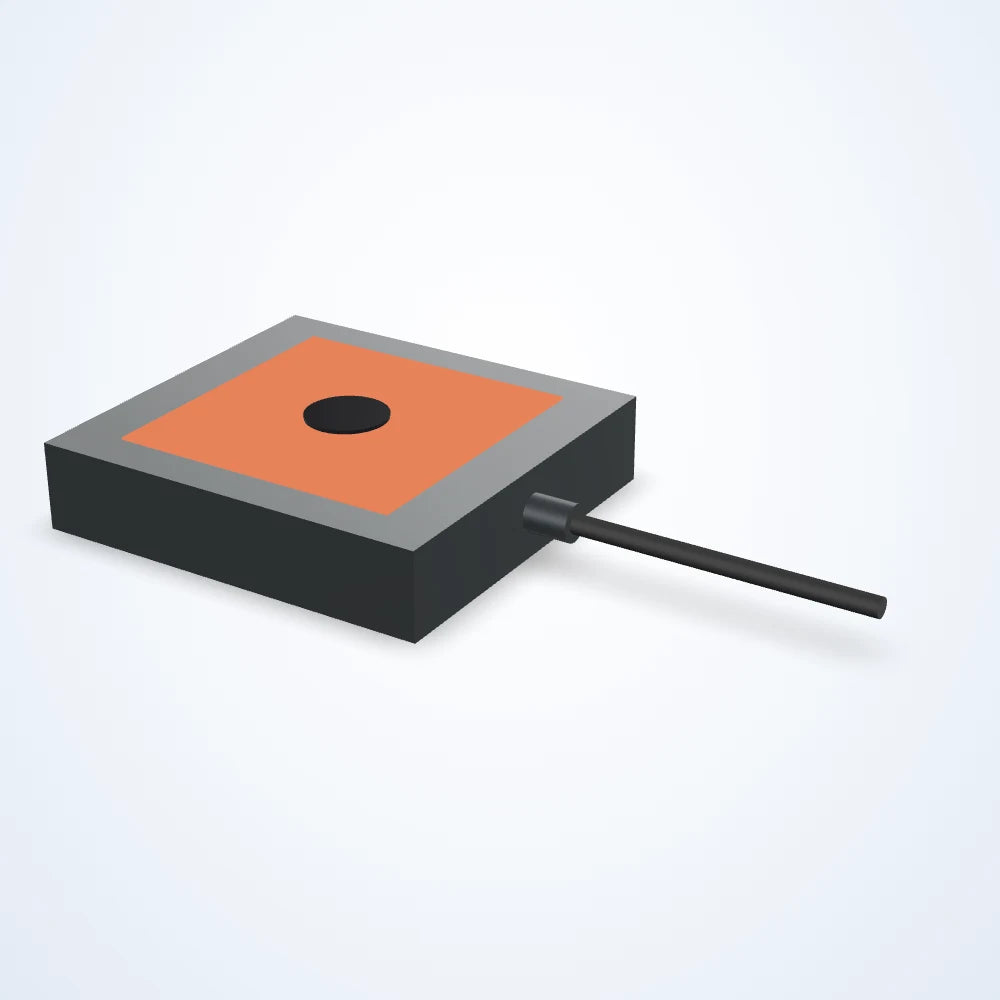

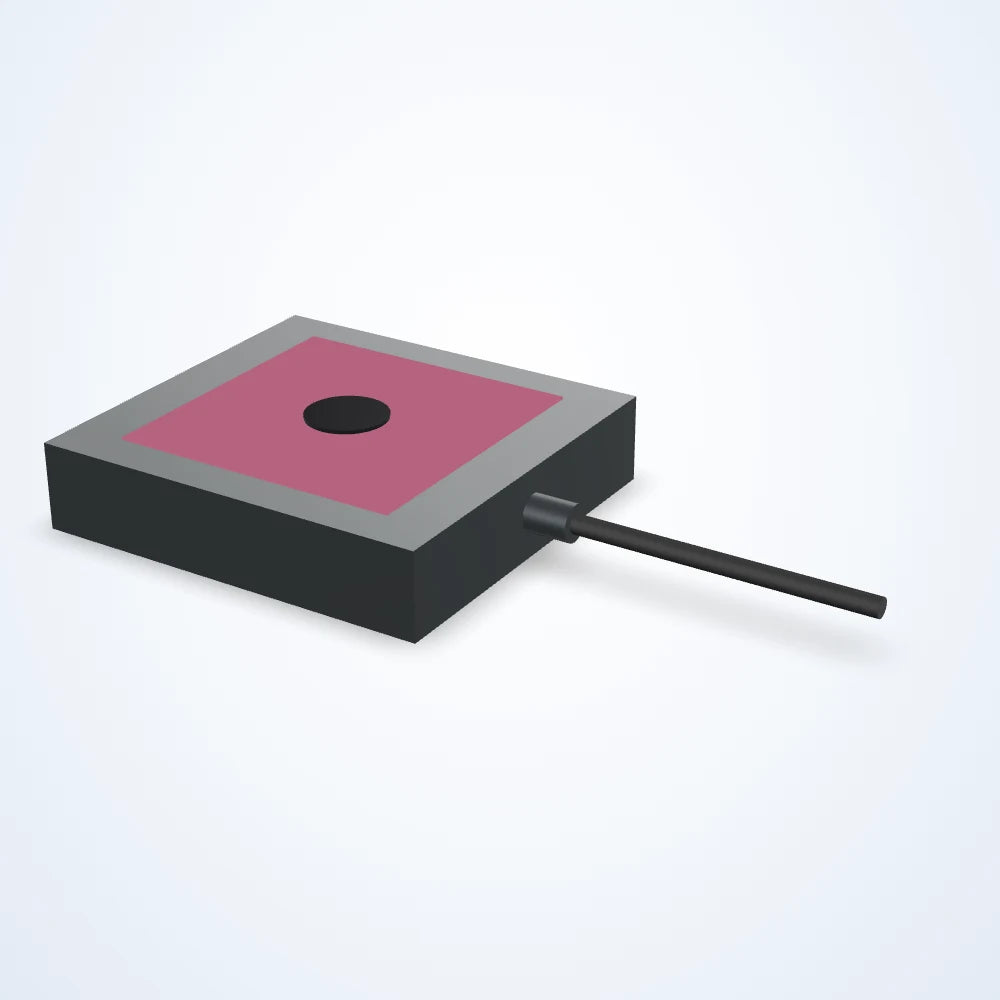

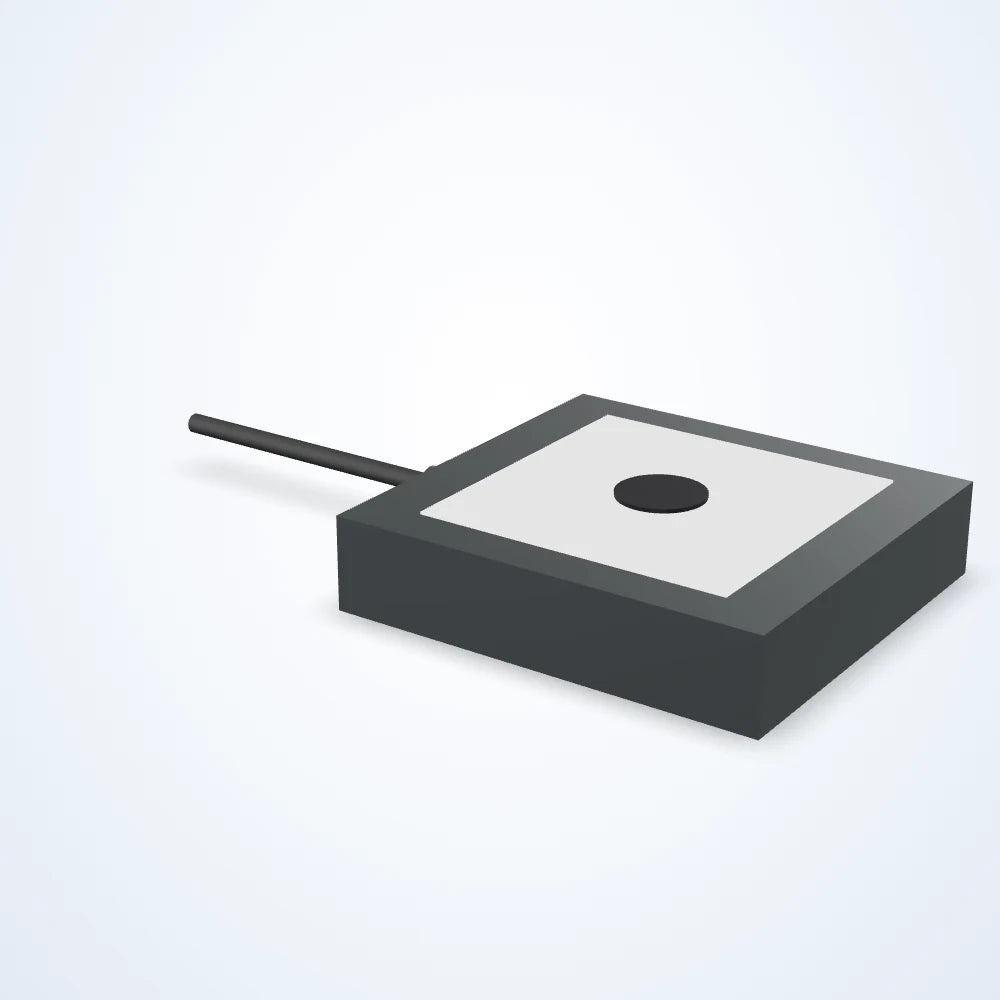

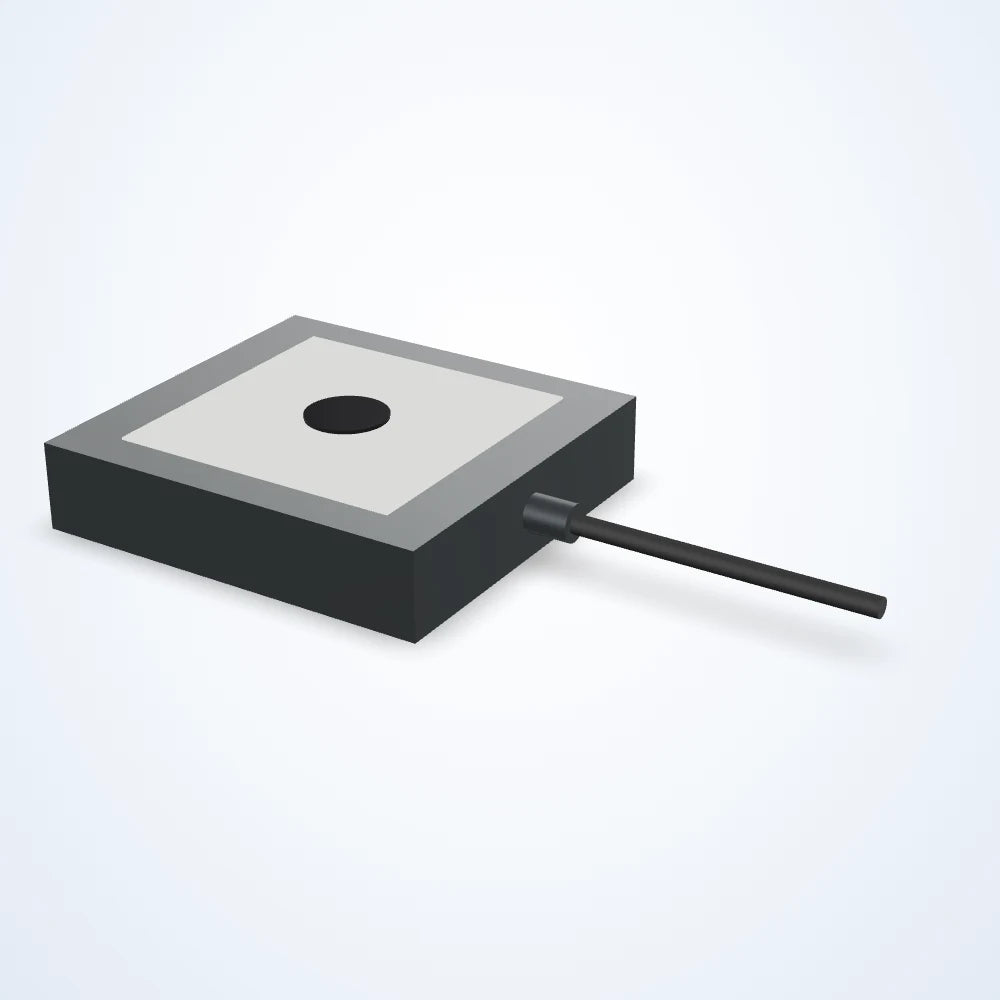

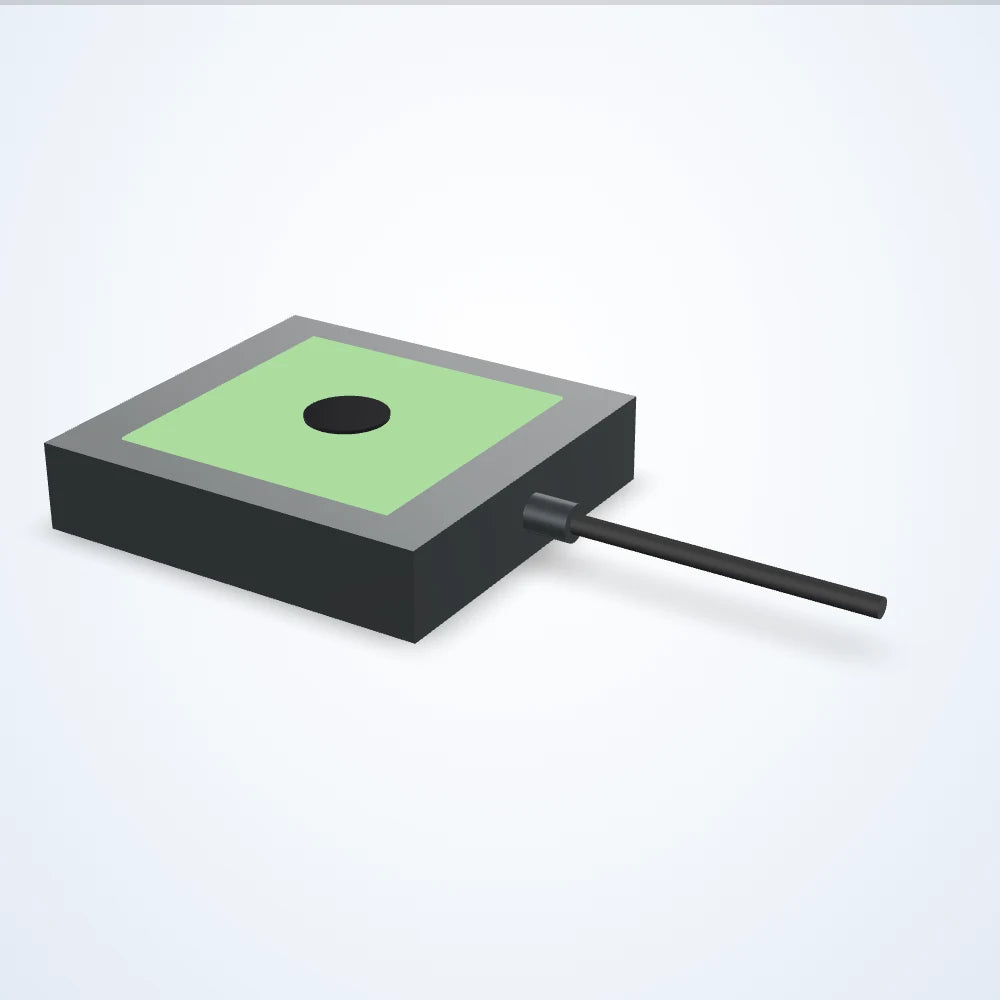

Flat dome light, 80.4-690 x 80.4-690 mm lit area (LS-FDL-0001)
Model LS-FDL-0001
- ColourWhite, Red, Green, Infrared, Blue
- Voltage24 VDC
- Wavelength850 nm
- Lit width80.4 to 690 (by configuration)
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 250 available
Configuration LS-FDL-0001-001 $1,389.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Flat dome (shadowless) light: diffuse on-axis illumination from a thin panel with a camera viewport, for flat shiny parts and labels under film. 24 VDC supply; connection: flying leads. Choose colour, lit length, length, width, driver included below (250 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FDL-0001 |
|---|---|
| Connection at light | Hardwired |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP67 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 151 to 11073 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 3.6 to 265.8 (by configuration) |
| Maximum input power overcurrent strobe (W) | 125 / 150 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 20 / 60 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical
| Lit width (mm) | 80.4 to 690 (by configuration) |
|---|---|
| Height (mm) | 23.9 |
| Viewport diameter (mm) | 22.2 / 44.5 (by configuration) |
| Housing | Aluminum |
| Mounting | Tapped Holes |
LS-FDL-0001
See this component from every angle.
Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.
Dimension-based 3D
FROM THE PRINTED SPECIFICATIONS
- Lit width (mm)
- 80.4 to 690 (by configuration)
- Voltage
- 24 VDC
- Height (mm)
- 23.9
- Viewport diameter (mm)
- 22.2 / 44.5 (by configuration)
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
