Dome lights

90 x 90 mm Flat Dome Light (LS-DOM-0126)

Model LS-DOM-0126

ColourRed, Green, Blue, White
Voltage24 V
Power R8 W
Power G/B/W10 W

$489.00

Ships in 2-3 weeks

0.25 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

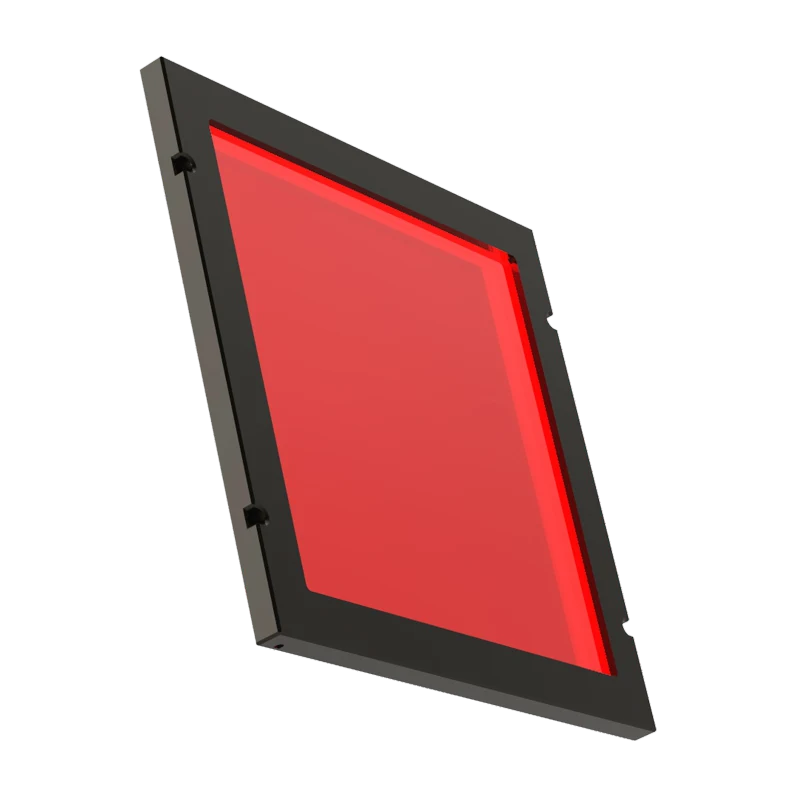

90 x 90 mm Flat Dome Light. Flat dome light: a thin square panel that lights the part through a light-guide diffuser plate. High output suits high-speed inspection, in a lightweight, compact design that installs with screw-thread grooves.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-DOM-0126
L x W x H (mm)	130x130x11

Light

Colours	Red, Green, Blue, White

Electrical

Voltage (V)	24
Power R (W)	8
Power G/B/W (W)	10

Mechanical

Shipping weight (estimated)	0.25 kg

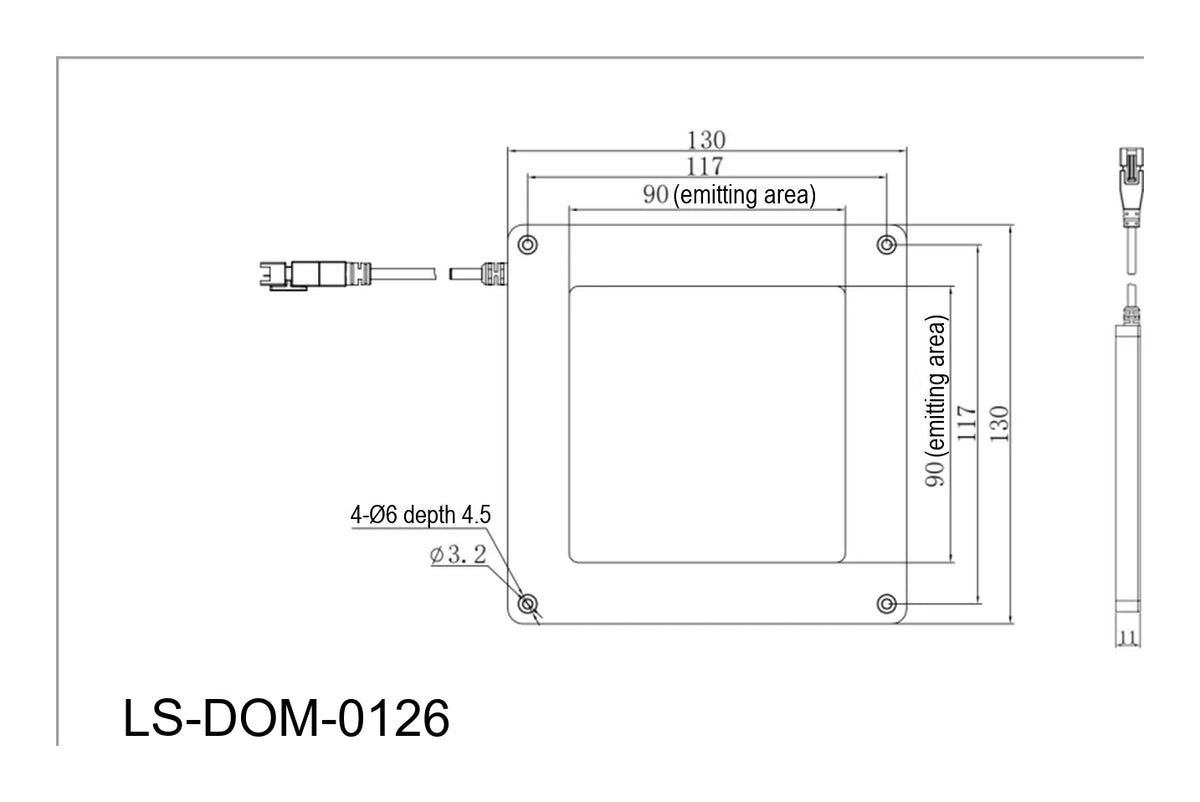

Mounting and drawing data

emitting area 90 x 90; drawing: 4 x dia 6 depth 4.5 counterbores with dia 3.2 holes, 117 x 117 pattern; cable with in-line connector

Other models in the Flat dome light (LS-DOM-S21) series

See all 3 models

Model	Size / key data	Price	Availability	Link
LS-DOM-0127	150 x 150 mm	$779.00	Ships in 2-3 weeks	View
LS-DOM-0128	190 x 190 mm	$1,019.00	Ships in 2-3 weeks	View
