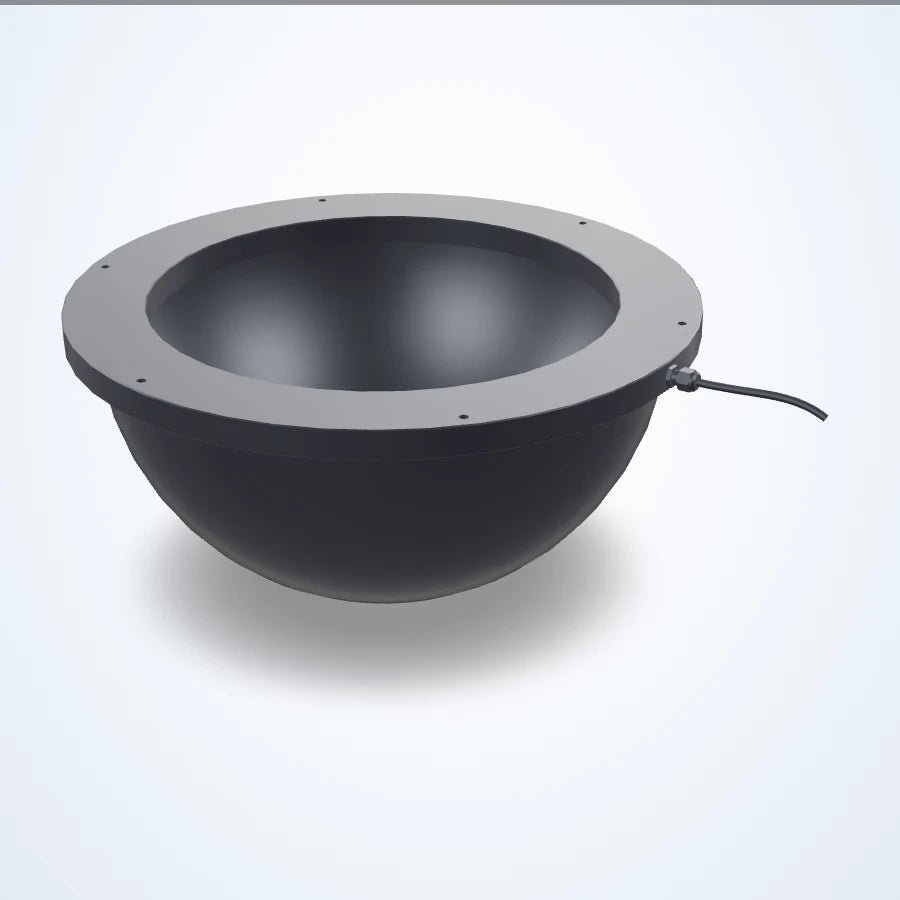

LS-DOM-0125 3D render
  • LS-DOM-0125 3D render

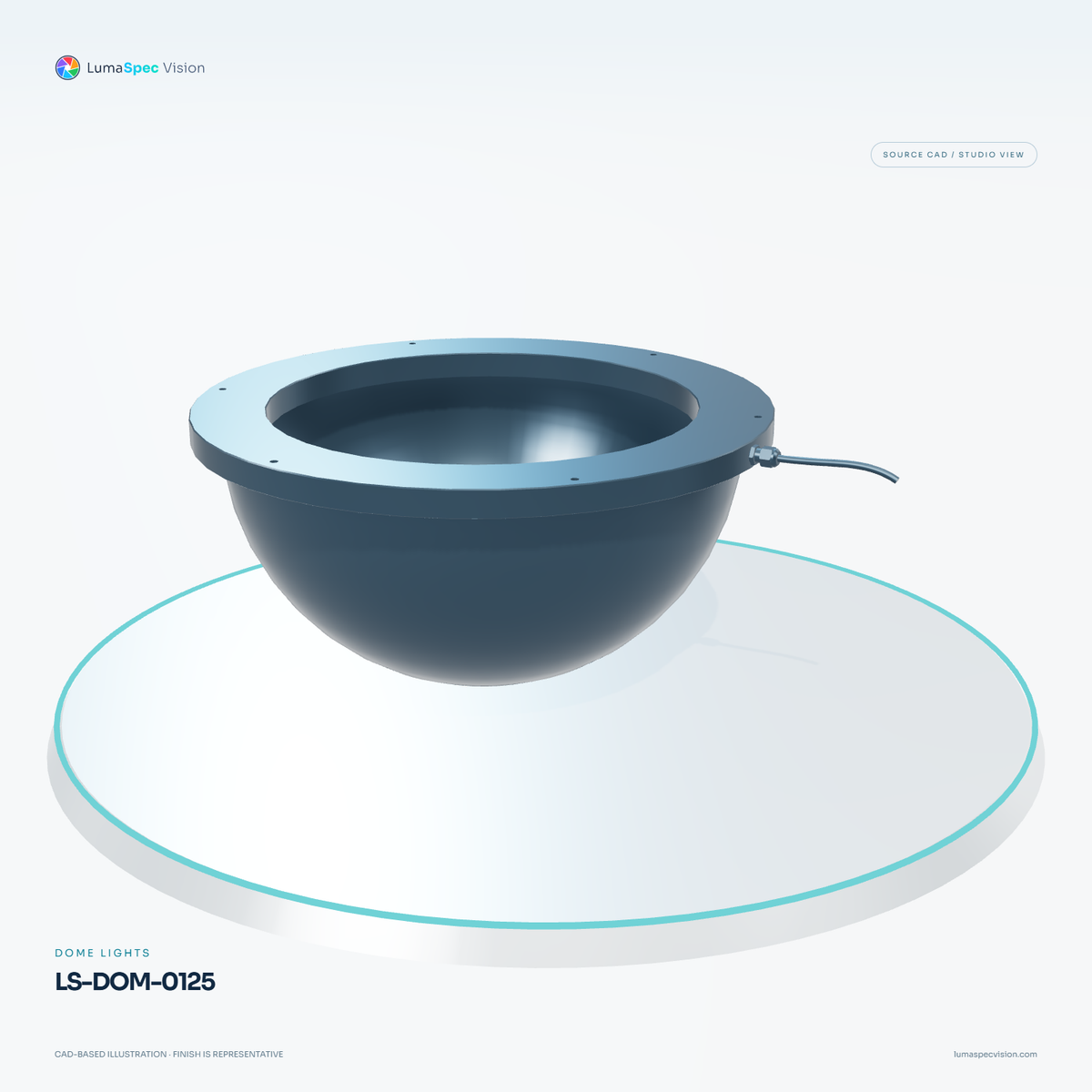

  • LS-DOM-0125 — Dome lights, 3D view 1. CAD-based illustration; finish is representative.

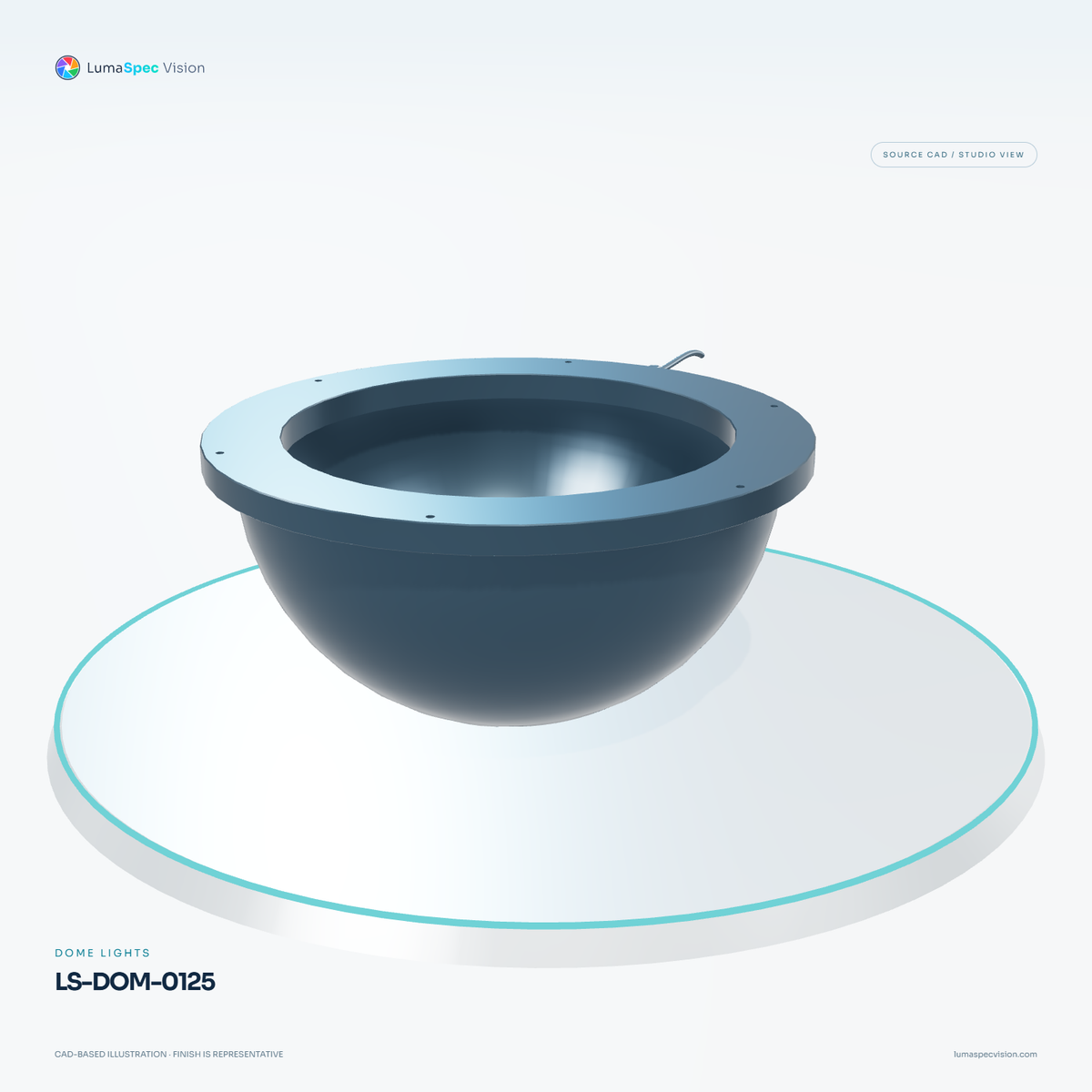

  • LS-DOM-0125 — Dome lights, 3D view 2. CAD-based illustration; finish is representative.

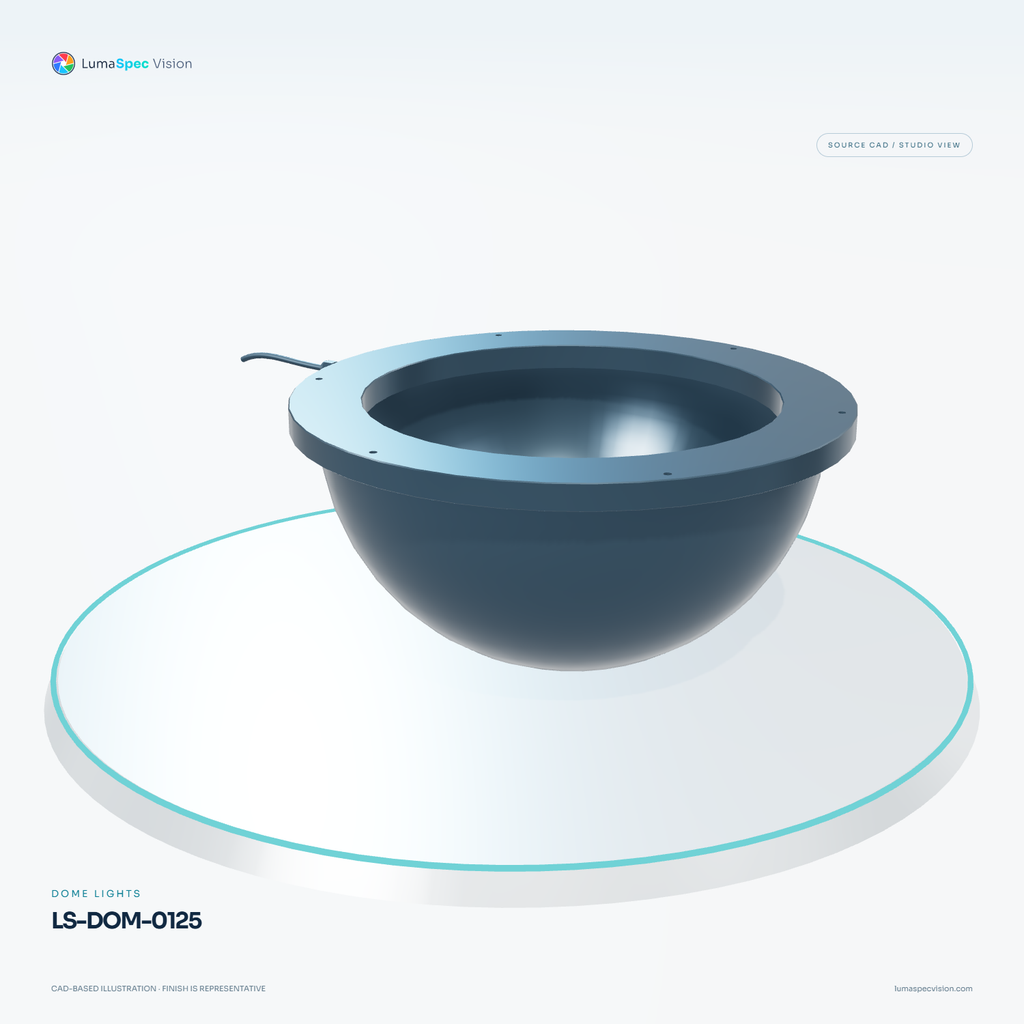

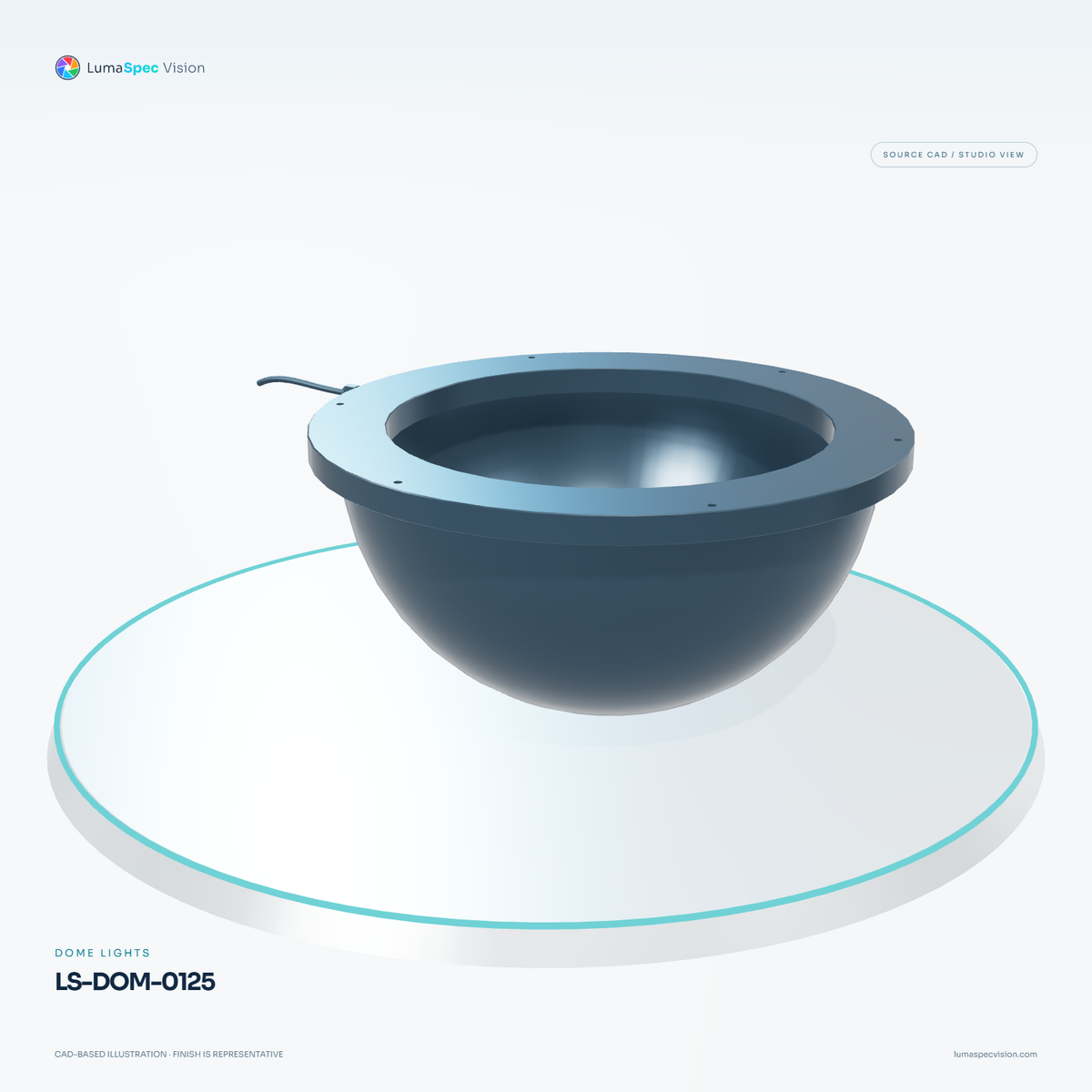

  • LS-DOM-0125 — Dome lights, 3D view 3. CAD-based illustration; finish is representative.

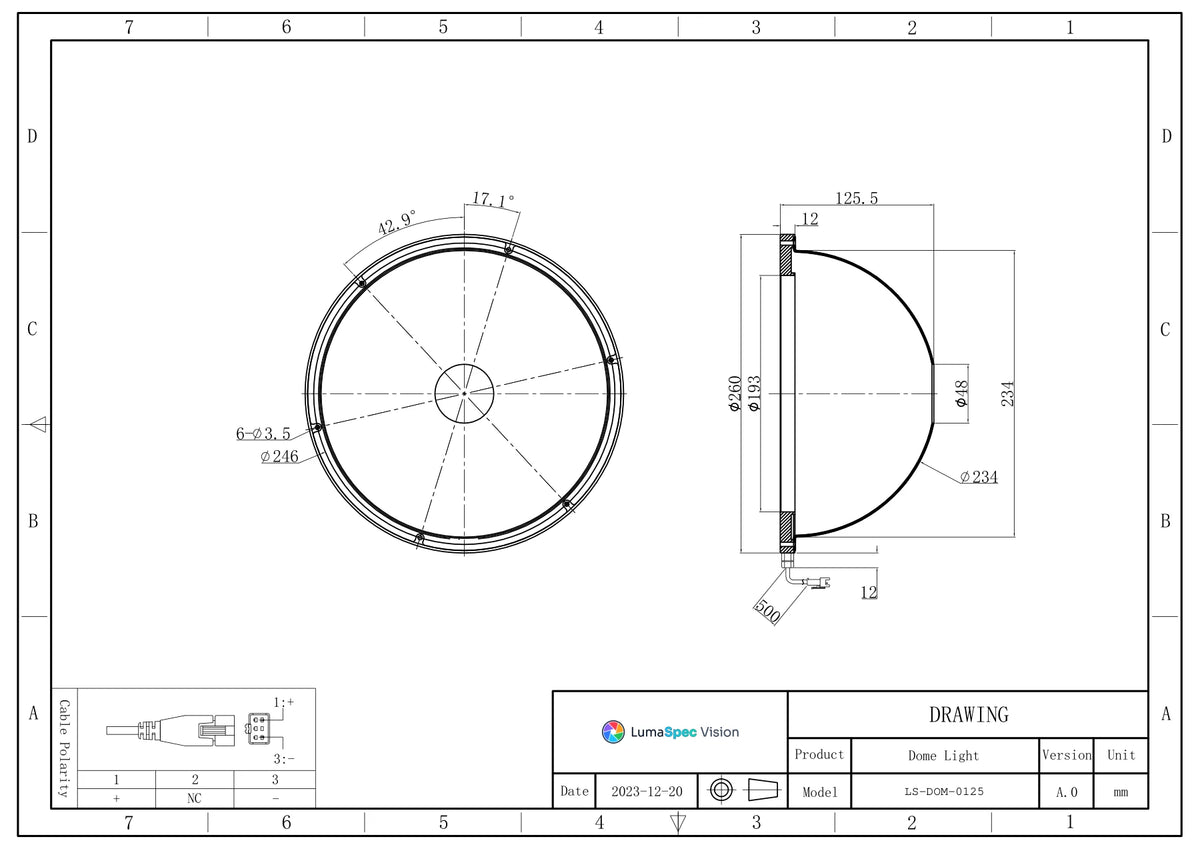

  • LS-DOM-0125 dimensions (mm)

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Dome lights

260 mm OD Dome Light (LS-DOM-0125)

Model LS-DOM-0125

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power R30 W
  • Power G/B/W38 W
$1,479.00

Ships in 2-3 weeks

2.85 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

260 mm OD Dome Light (LS-DOM-0125)LS-DOM-0125

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

260 mm OD Dome Light. Hemispherical dome light with an excellent shadow-free effect, a large illumination area and high uniformity. Each model has a camera hole in the top of the dome (hole diameter listed per model).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0125
Hole dia (mm)48
OD x H (mm)260x125.5

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)30
Power G/B/W (W)38

Mechanical

Shipping weight (estimated)2.85 kg

Mounting and drawing data

drawing: 6 x dia 3.5 holes on dia 246; dome dia 234; base opening dia 193

LS-DOM-0125

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-DOM-0125 — Dome lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Voltage (V)
24
Power R (W)
30
Power G/B/W (W)
38
Hole dia (mm)
48

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
