Dome lights

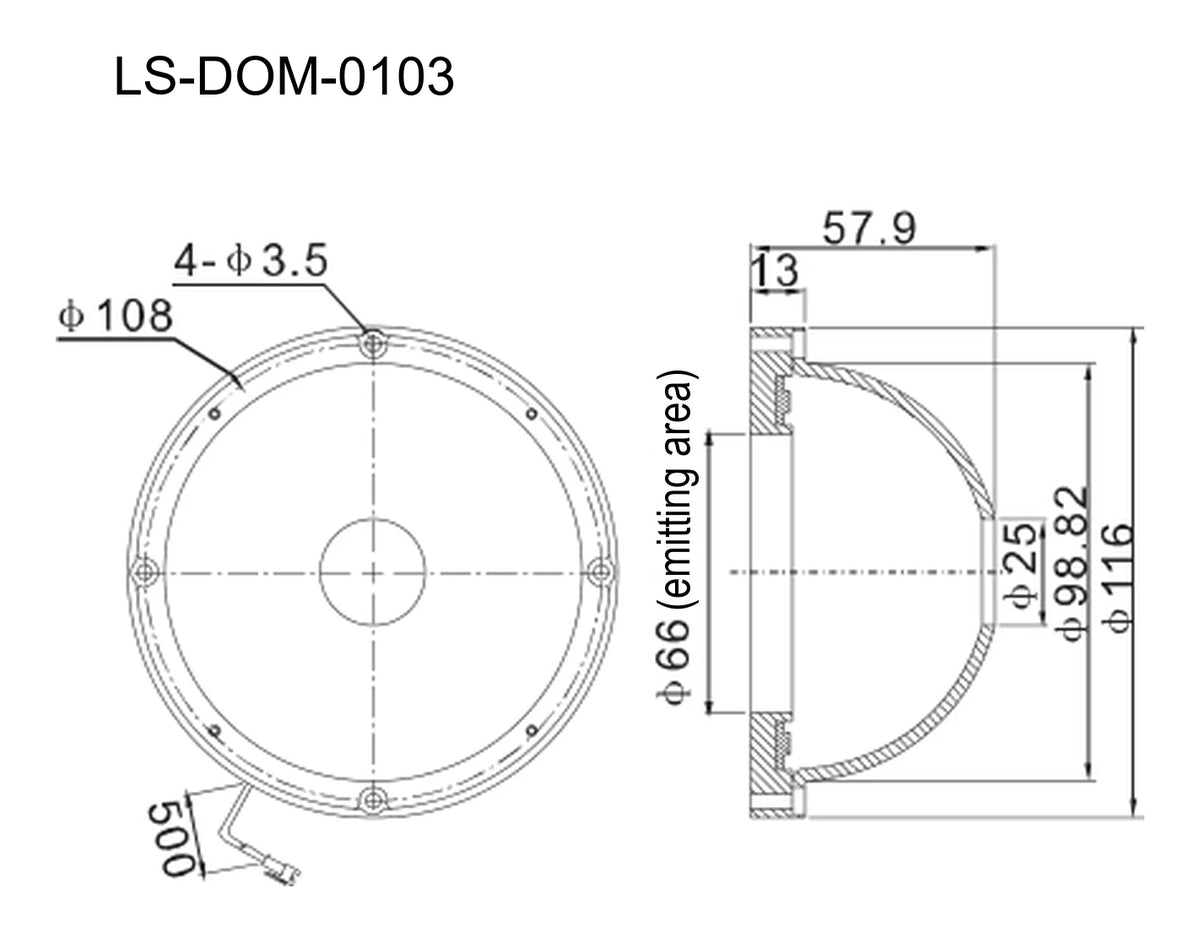

100 mm IR light (LS-DOM-0103)

Model LS-DOM-0103

Emitting areaEmitting area 100
Power7.5 W
WavelengthIR 850-940 nm
Voltage24 V

$469.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Infrared light sources providing near-infrared 850 nm and 940 nm illumination; shape and lighting mode can be customised. Infrared light penetrates more strongly than ordinary light and works well for inspecting translucent samples.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-DOM-0103
Expected lifetime	Can be lit continuously for 30000 hours with light decay of 45% (about 8-10% decay after one year of normal lighting)
Support	All products come with one year of standard free technical support and can be customised to the object features, working distance, lighting angle and field of view

Light

Peak wavelength	IR 850-940 nm
Emitting size (mm)	Emitting area 100

Environment and compliance

Operating environment	Ambient about 22 °C; operating temperature within 25 °C

Electrical

Suggested controller	LS-CTL-0140, -2T / LS-CTL-0333, -4T, -6T, -8T
Power (W)	7.5
Supply voltage (derived)	24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0333

Mechanical

Shipping weight	0.50 kg

Photo shows the visible-light version of this light; this model emits 850 nm infrared light - see the specifications.
