Representative photo of this series
Dome lights
33 mm Dome light (LS-DOM-0097)
Model LS-DOM-0097
- ColourRed, Green, Blue, White
- Voltage24 V
- Cable length500 mm
- Emitting dia.33 mm
$139.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Dome light is a diffuse-reflection shadowless light: optimally arranged LEDs shine into a spherical diffuse reflector, which spreads the light smoothly and evenly over the object surface. Its large diffusing surface lights the object evenly from all directions; suited to uneven, reflective objects, even curved metal surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

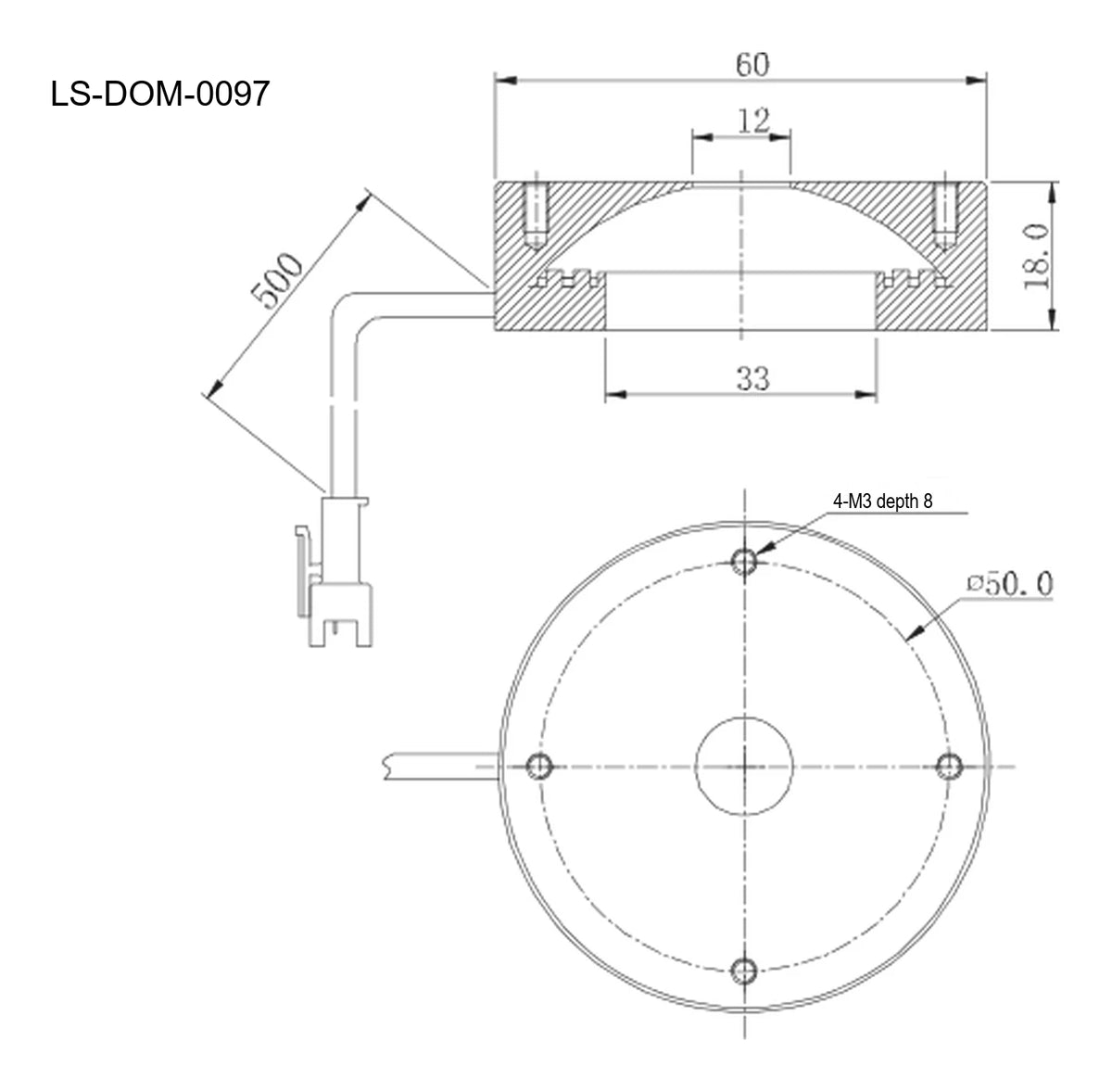

Specifications
General
| Model | LS-DOM-0097 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Outer dia. (mm) | 60 |
| Camera hole dia. (mm) | 12 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting dia. (mm) | 33 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Power, green / blue / white (W) | 3.0 |
|---|---|
| Power, red (W) | 3.0 |
| Recommended controllers | LS-CTL-0508, -2T / LS-CTL-0140, -2T |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0508, LS-CTL-0140 |
Mechanical
| Height (mm) | 18 |
|---|---|
| Shipping weight | 0.20 kg |
Other models in the Dome light (LS-DOM-S16) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-DOM-0098 | 66 mm | $329.00 | Ships in 2-3 weeks | View |
| LS-DOM-0099 | 116 mm | $439.00 | Ships in 2-3 weeks | View |
| LS-DOM-0100 | 138 mm | $559.00 | Ships in 2-3 weeks | View |
| LS-DOM-0101 | 193 mm | $819.00 | Ships in 2-3 weeks | View |
| LS-DOM-0102 | 260 mm | $1,249.00 | Ships in 2-3 weeks | View |
