Arch light source (LS-DOM-S12)
  • Arch light source (LS-DOM-S12)

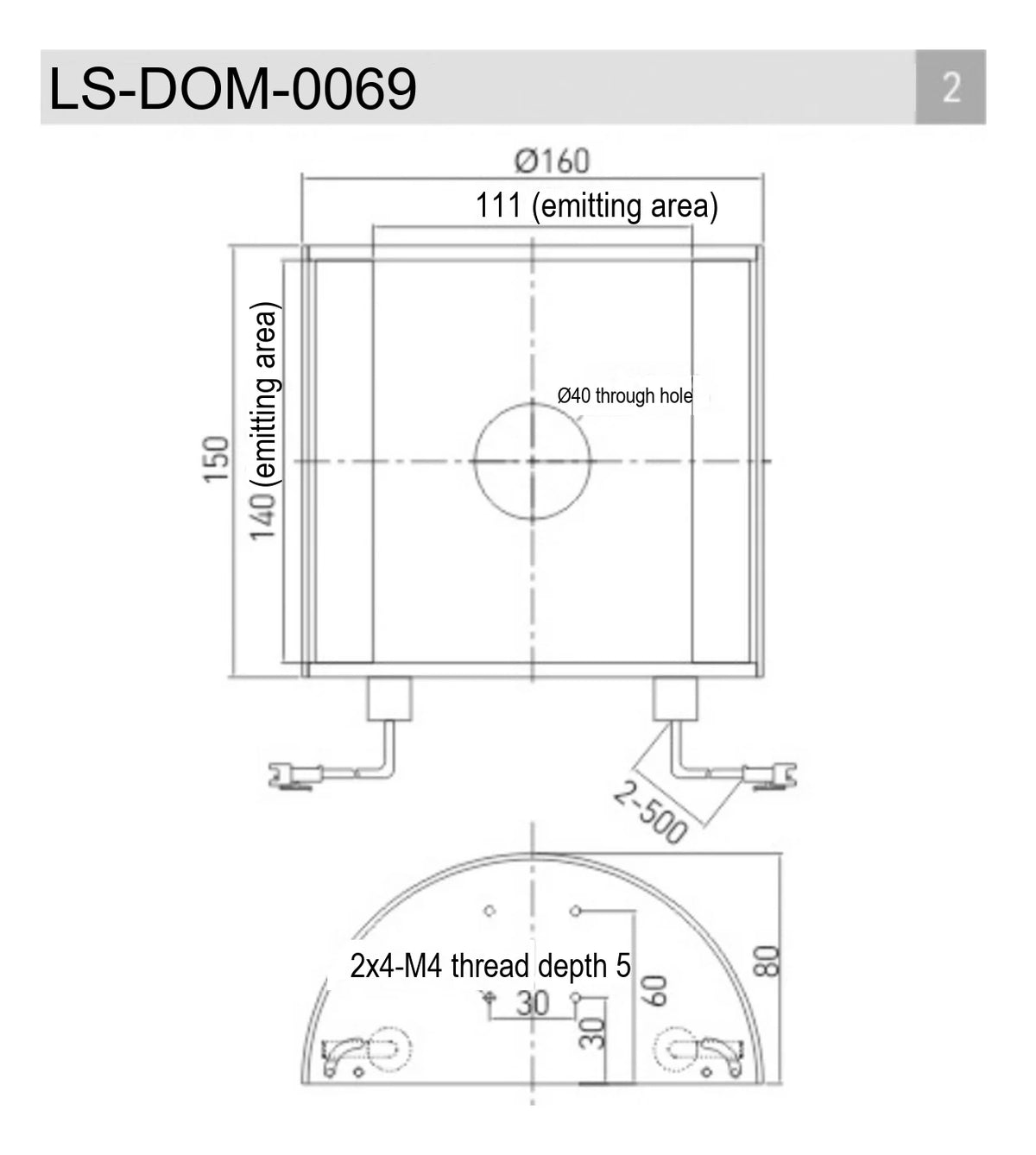

  • LS-DOM-0069 dimensions (mm)

Representative photo of this series

Dome lights

111 x 140 mm Arch light source (LS-DOM-0069)

Model LS-DOM-0069

  • ColourWhite
  • Emitting area111 x 140 mm
  • Power30 W
  • Voltage24 V
$639.00

Ships in 2-3 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

111 x 140 mm Arch light source (LS-DOM-0069)LS-DOM-0069

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Arch-shaped light source: the arch material reflects the light diffusely so the illumination angle covers 180 degrees; a special diffusing material spreads the light evenly and eliminates interference from uneven surfaces and reflections.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0069
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Camera holedia. 40 through hole

Interfaces and I/O

Cable2 x 500 mm

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Emitting area (mm)111 x 140

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power (W)30
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Outer length (mm)160
Outer width (mm)150
Outer height (mm)80
Mounting2 x 4-M4 depth 5
Shipping weight1.00 kg

Other models in the Arch light source (LS-DOM-S12) series

See all 7 models
ModelSize / key dataPriceAvailabilityLink
LS-DOM-0068 72 x 110 mm $449.00 Ships in 2-3 weeks View
LS-DOM-0070 111 x 190 mm $639.00 Ships in 2-3 weeks View
LS-DOM-0071 151 x 140 mm $849.00 Ships in 2-3 weeks View
LS-DOM-0072 150 x 170 mm $849.00 Ships in 2-3 weeks View
LS-DOM-0073 152 x 190 mm $849.00 Ships in 2-3 weeks View
LS-DOM-0074 140 x 240 mm $1,539.00 Ships in 2-3 weeks View
