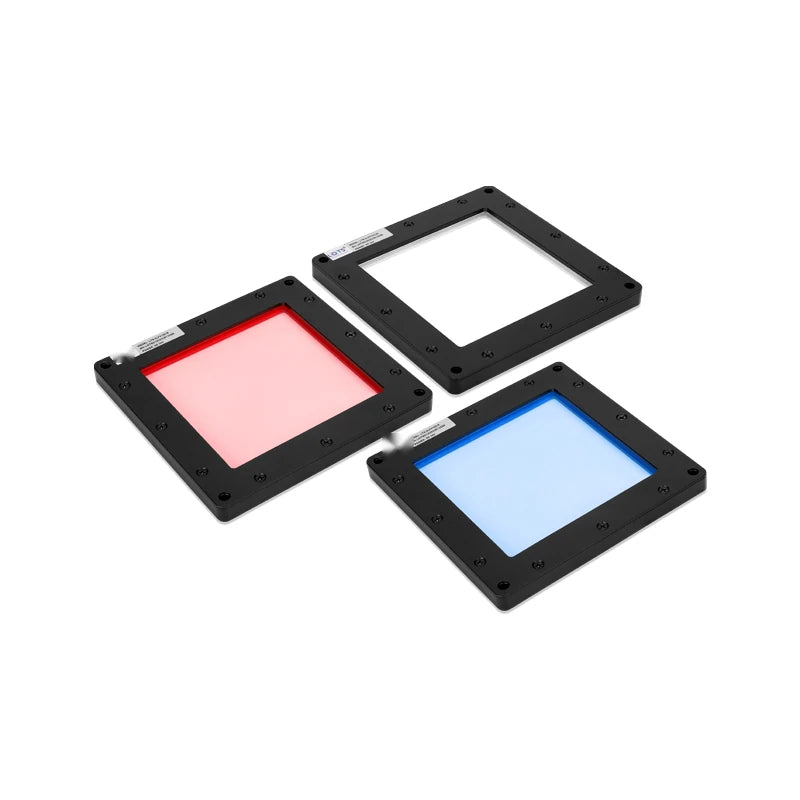

Representative photo of this series
Dome lights
Flat dome light, 190 x 190 x 11.5 mm (LS-DOM-0051)
Model LS-DOM-0051
- ColourRed, Blue, Green, White
- Emitting area150 x 150 mm
- SizeL190xW190xH11.5(mm)
- Voltage24V
- Power25.0W/31.2W
$779.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Suitable for a wide range of applications from high to low WD. No dot pattern or Moire ripple. 5 times brighter than LFX.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DOM-0051 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

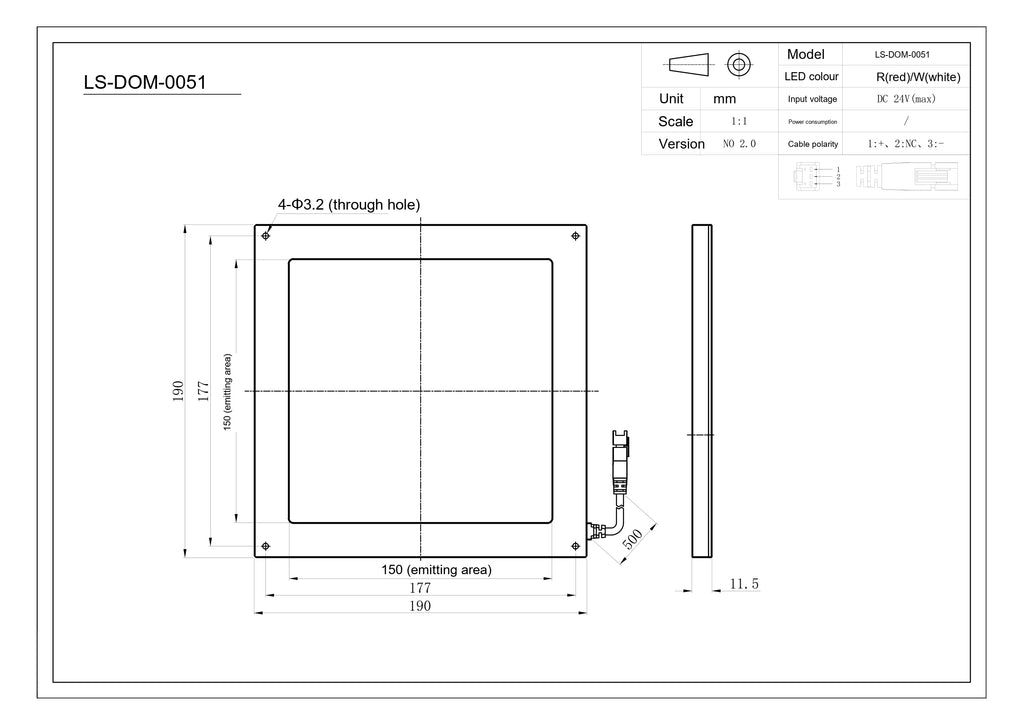

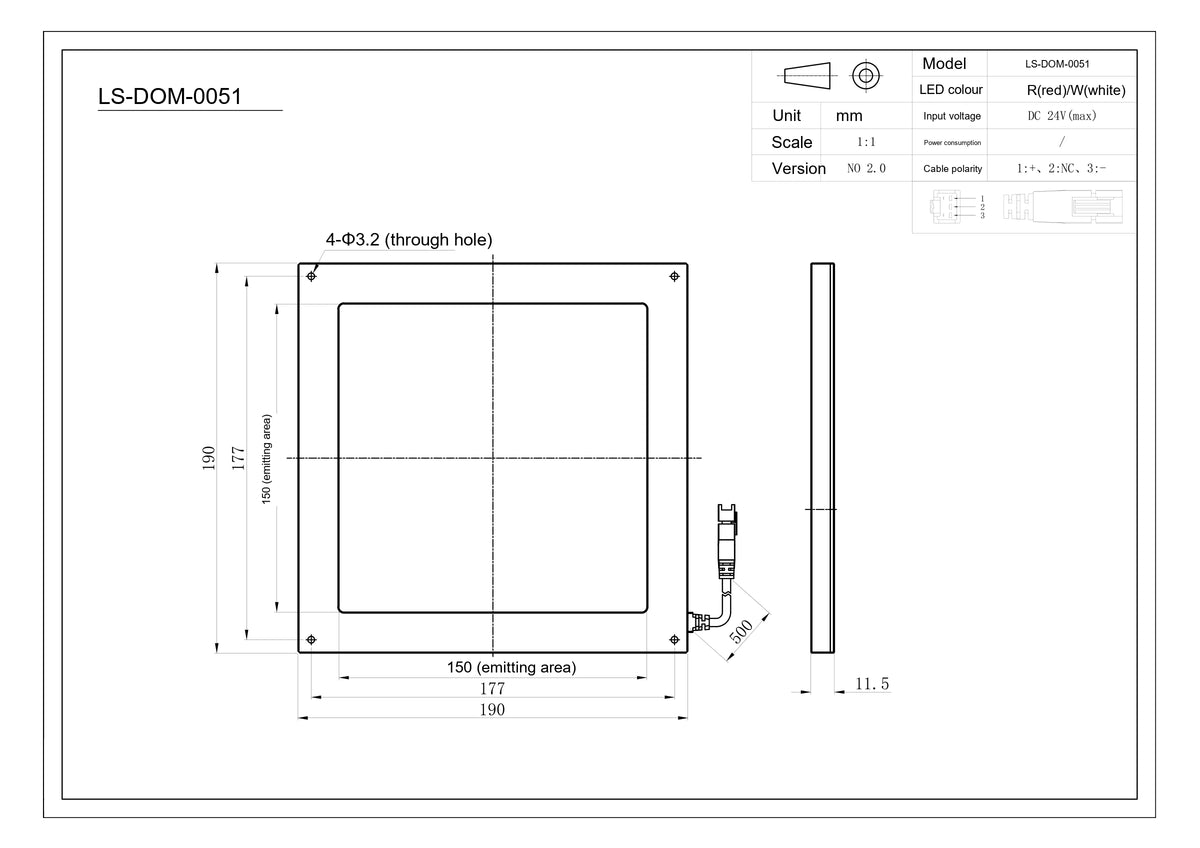

| Cable (mm) | 500 (drawing) |
|---|
Light
| Emitting surface (mm) | 150 x 150 |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power | 25.0W/31.2W |
Mechanical
| Dimension | L190xW190xH11.5(mm) |
|---|---|
| Shipping weight | 0.40 kg |
Other models in the Flat dome light (LS-DOM-S09) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-DOM-0048 | Red, Blue, Green, White · 50 x 50 mm | $319.00 | Ships in 2-3 weeks | View |
| LS-DOM-0049 | Red, Blue, Green, White · 75 x 75 mm | $429.00 | Ships in 2-3 weeks | View |
| LS-DOM-0050 | Red, Blue, Green, White · 100 x 100 mm | $539.00 | Ships in 2-3 weeks | View |
| LS-DOM-0052 | Red, Blue, Green, White · 200 x 200 mm | $1,079.00 | Ships in 2-3 weeks | View |
