Dome light, 155.2 mm (LS-DOM-0003)

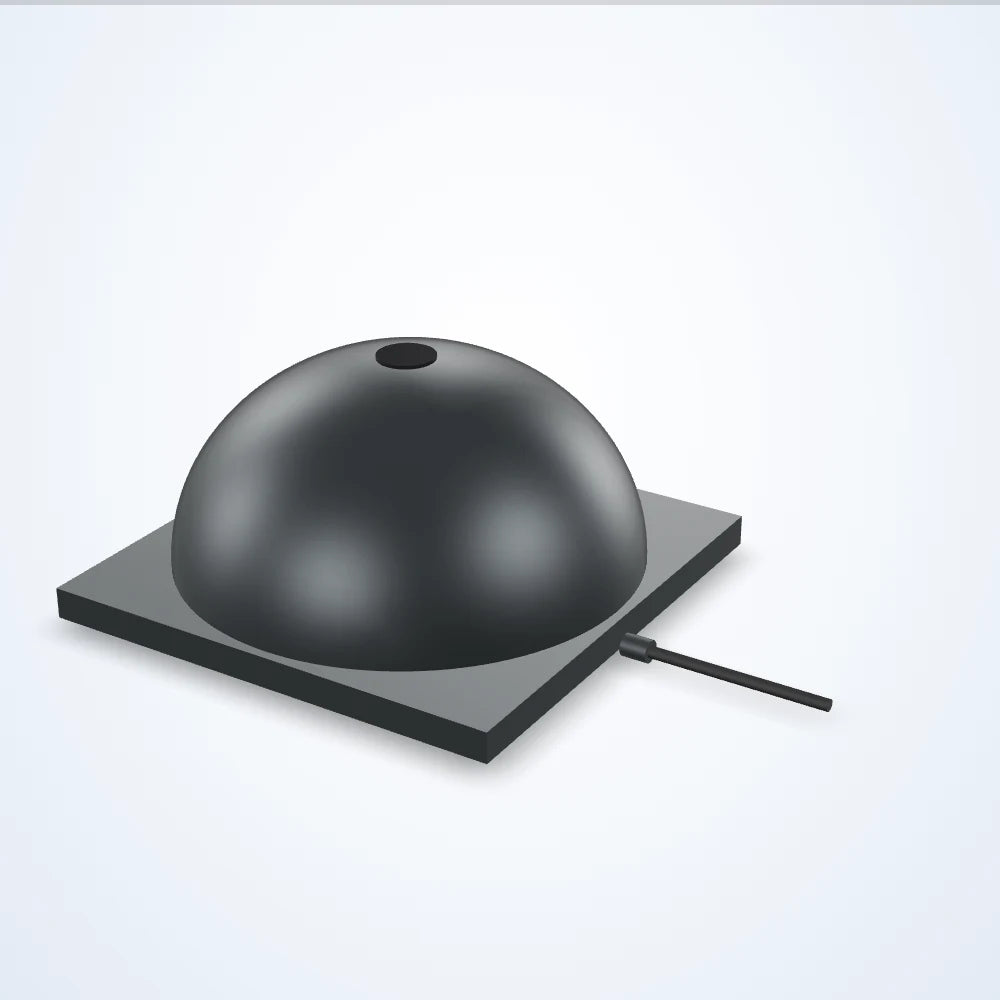

  • Dome light, 155.2 mm (LS-DOM-0003)

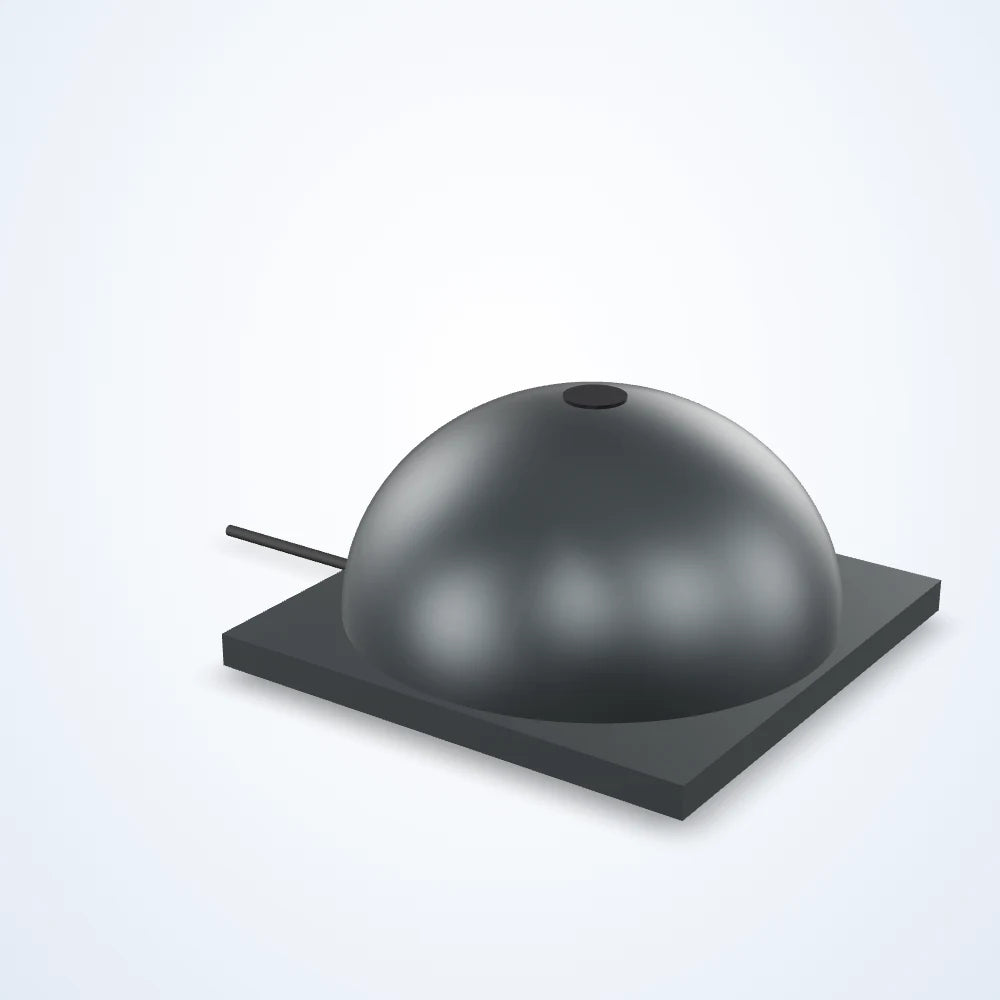

  • Dome light, 155.2 mm (LS-DOM-0003) - view 2
  • Dome light, 155.2 mm (LS-DOM-0003) - view 3
  • Dome light, 155.2 mm (LS-DOM-0003) - view 4

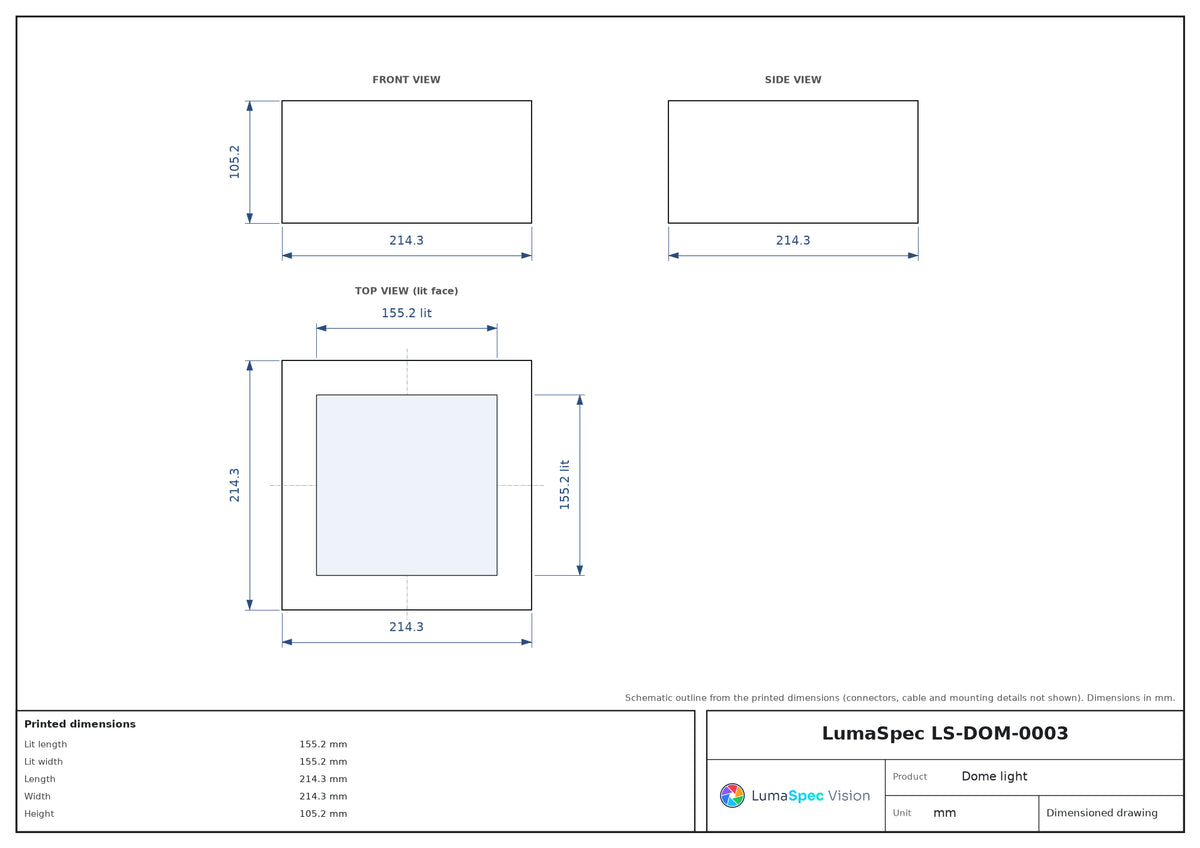

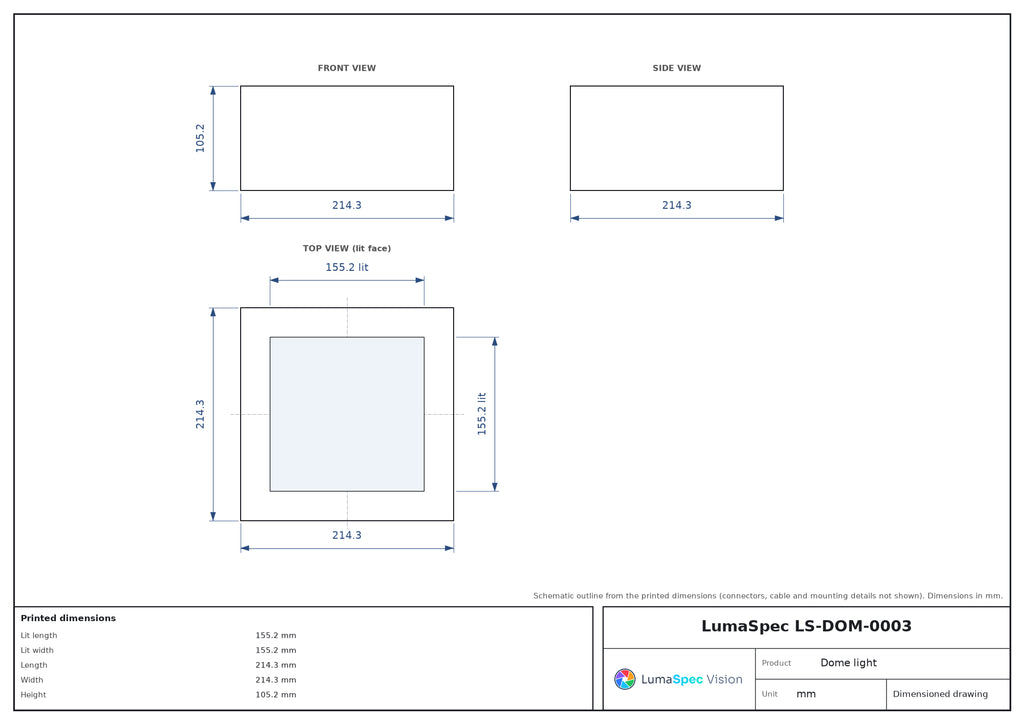

  • LS-DOM-0003 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Dome lights

Dome light, 155.2 mm (LS-DOM-0003)

Model LS-DOM-0003

  • ColourWhite, Infrared, Red, Green, Blue
  • Voltage24 VDC
  • Wavelength730 nm, 850 nm, 940 nm
  • Lit length155.2 mm
from $1,599.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 48 available

Driver included
Driver location
Intensity control
Strobe trigger input
Version

Configuration LS-DOM-0003-01 $1,659.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Dome light, 155.2 mm (LS-DOM-0003)LS-DOM-0003

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Dome light for diffuse, cloudy-day illumination of curved, shiny and reflective parts; the camera looks through the viewport. Lit area 155.2 x 155.2 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (48 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-DOM-0003
Connection at lightHardwired
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperatureup to 60 °C
IP ratingIP67
ComplianceCE, IEC 62471, RoHS
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Maximum constant on current (mA)720 / 1080 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)17.3 / 25.9 (by configuration)
Maximum input power overcurrent strobe (W)125 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)60 (by configuration)
Minimum overcurrent strobe duration (µs)30 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit length (mm)155.2
Lit width (mm)155.2
Length (mm)214.3
Width (mm)214.3
Height (mm)105.2
HousingAluminum
MountingTapped Holes

LS-DOM-0003

See this component from every angle.

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.

Explore the visual library
LS-DOM-0003 — Dome lights, View 1 Dimension-based 3D

FROM THE PRINTED SPECIFICATIONS

Connector
Flying Leads
Lit length (mm)
155.2
Lit width (mm)
155.2
Voltage
24 VDC

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
