Rendered illustration: the actual product may differ in appearance.
Coaxial lights
44 x 40 mm coaxial light (LS-CXL-0163)
Model LS-CXL-0163
- ColourRed, Blue, White, Green, Infrared, UV
- Emitting area44 x 40 mm
- Size86 × 50 × 48 mm
- Voltage24 VDC
$220.00
Ships in 3-4 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial light for flat, shiny and engraved surfaces. Emitting area 44 x 40 mm; 24 V DC supply; available in red, blue, white, green, infrared (850 / 940 nm), UV.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0163 |
|---|---|
| Service life | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
| Pin assignment | 1: (+), 2: NC, 3: (-) |
Interfaces and I/O
| Connector | SMR-03 V-B |
|---|---|
| Cable length | 500 mm |
Light
| Emitting area (mm) | 44 x 40 |
|---|---|
| Wavelength | Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm |
| Colour temperature (white) | 5800-7500K |
Environment and compliance
| Operating environment | Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation) |
|---|
Electrical
| Supply voltage | 24 VDC |
|---|
Mechanical
| Housing material | Aluminum alloy, Resin |
|---|---|

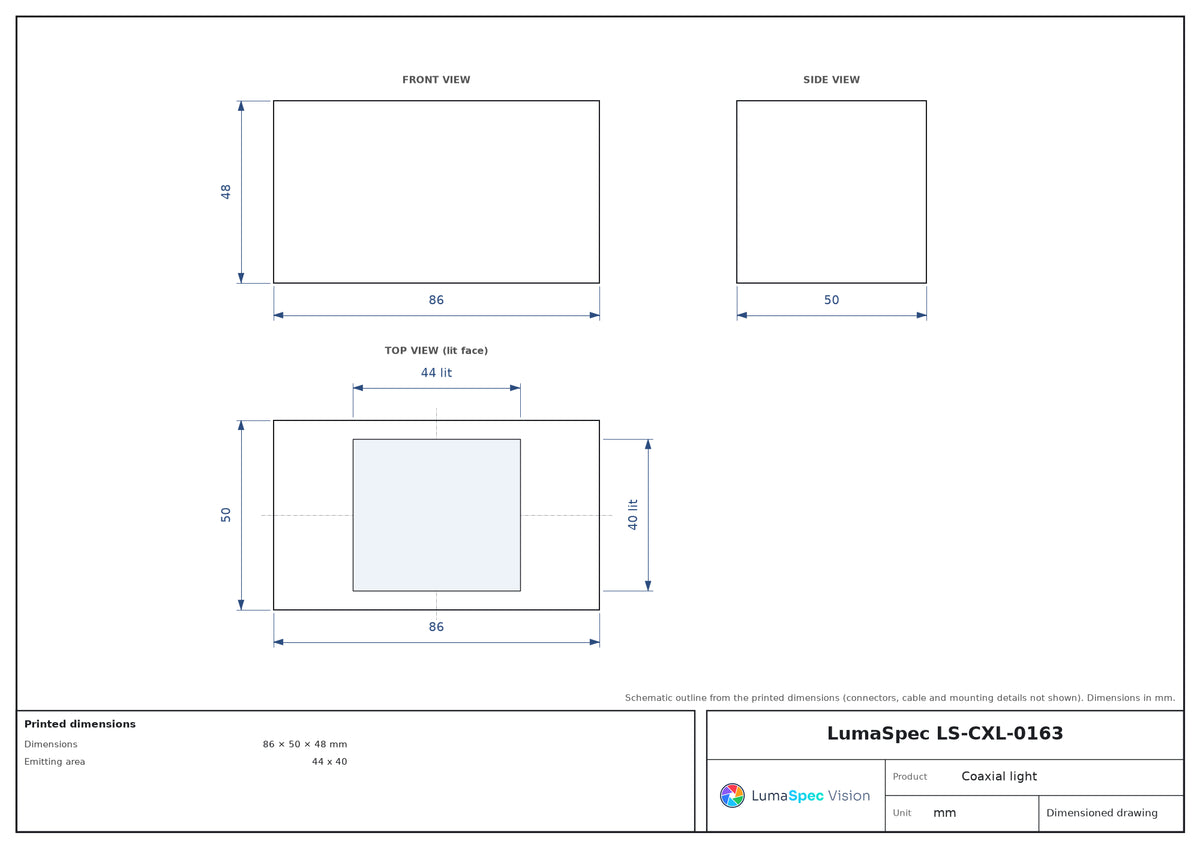

| Dimensions (mm) | 86 × 50 × 48 mm |
| Shipping weight | 0.50 kg |
Other models in the Coaxial lights (LS-CXL-S25) series
See all 18 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0159 | 20 x 20 mm | from $155.00 | Ships in 3-4 weeks | View |
| LS-CXL-0160 | 30 x 30 mm | from $165.00 | Ships in 3-4 weeks | View |
| LS-CXL-0161 | 40 x 38 mm | from $210.00 | Ships in 3-4 weeks | View |
| LS-CXL-0162 | 40 x 40 mm | from $210.00 | Ships in 3-4 weeks | View |
| LS-CXL-0164 | 50 x 50 mm | from $230.00 | Ships in 3-4 weeks | View |
| LS-CXL-0165 | 54 x 50 mm | from $240.00 | Ships in 3-4 weeks | View |
| LS-CXL-0166 | 60 x 60 mm | from $305.00 | Ships in 3-4 weeks | View |
| LS-CXL-0167 | 64 x 60 mm | from $305.00 | Ships in 3-4 weeks | View |
| LS-CXL-0168 | 75 x 73 mm | from $340.00 | Ships in 3-4 weeks | View |
| LS-CXL-0169 | 85 x 83 mm | from $350.00 | Ships in 3-4 weeks | View |
| LS-CXL-0171 | 100 x 100 mm | from $500.00 | Ships in 3-4 weeks | View |
| LS-CXL-0172 | 126 x 126 mm | from $660.00 | Ships in 3-4 weeks | View |
| LS-CXL-0173 | 150 x 120 mm | from $695.00 | Ships in 3-4 weeks | View |
| LS-CXL-0174 | 200 x 180 mm | from $825.00 | Ships in 3-4 weeks | View |
| LS-CXL-0175 | 250 x 190 mm | from $900.00 | Ships in 3-4 weeks | View |
| LS-CXL-0176 | 320 x 200 mm | from $1,300.00 | Ships in 3-4 weeks | View |
| LS-CXL-0170 | 500 x 80 mm | from $1,300.00 | Ships in 3-4 weeks | View |
