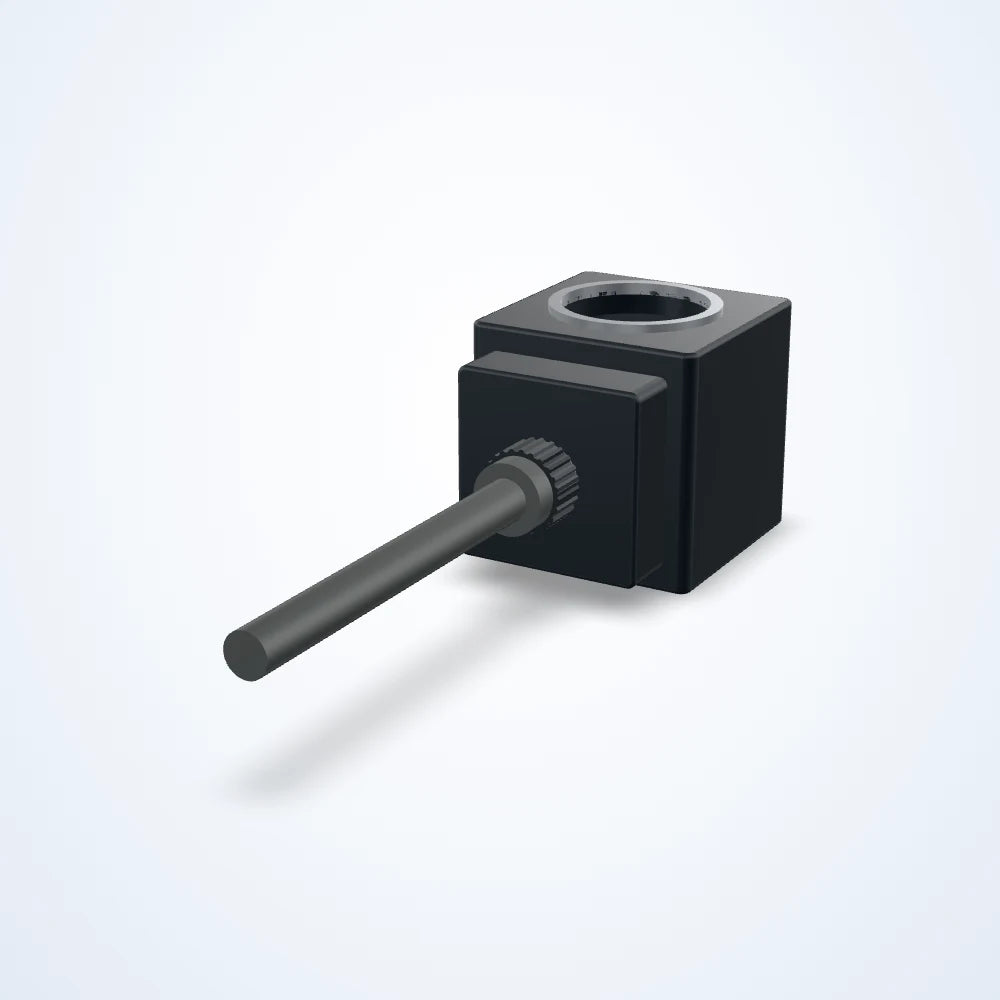

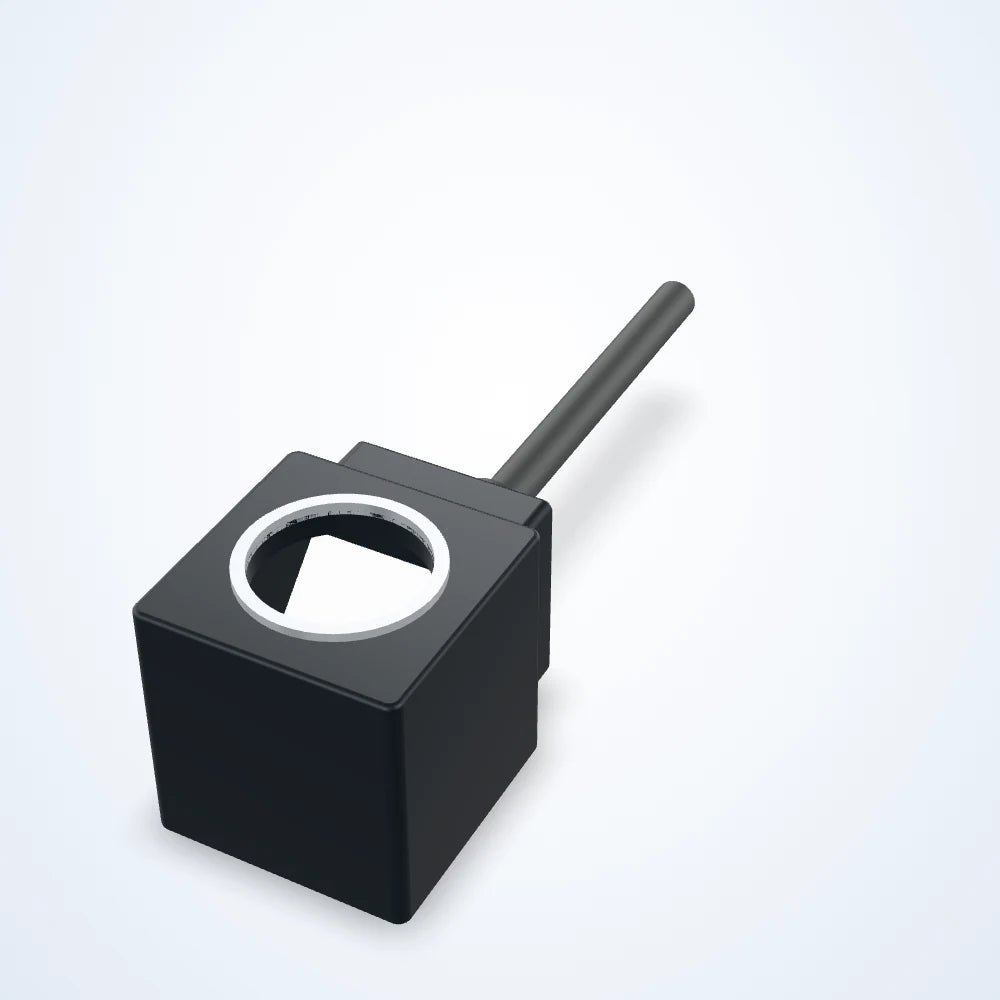

Rendered illustration: the actual product may differ in appearance.

Coaxial lights

60 x 60 mm parallel coaxial light (LS-CXL-0158)

Model LS-CXL-0158

ColourRed, Blue, White, Green, Infrared, UV
Emitting area60 x 60 mm
Size223.5 × 78 × 82 mm
Voltage24 VDC

$490.00

Ships in 3-4 weeks

1.0 kg shipping weight

Color Red Blue White Green Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Parallel coaxial light for flat, shiny and engraved surfaces. Emitting area 60 x 60 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CXL-0158
Service life	White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Interfaces and I/O

Connector	SMR-03 V-B

Light

Emitting area (mm)	60 x 60
Wavelength	Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm
Colour temperature (white)	6000-7500K

Environment and compliance

Operating environment	Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage	24 VDC

Mechanical

Housing material	Aluminum alloy, Resin

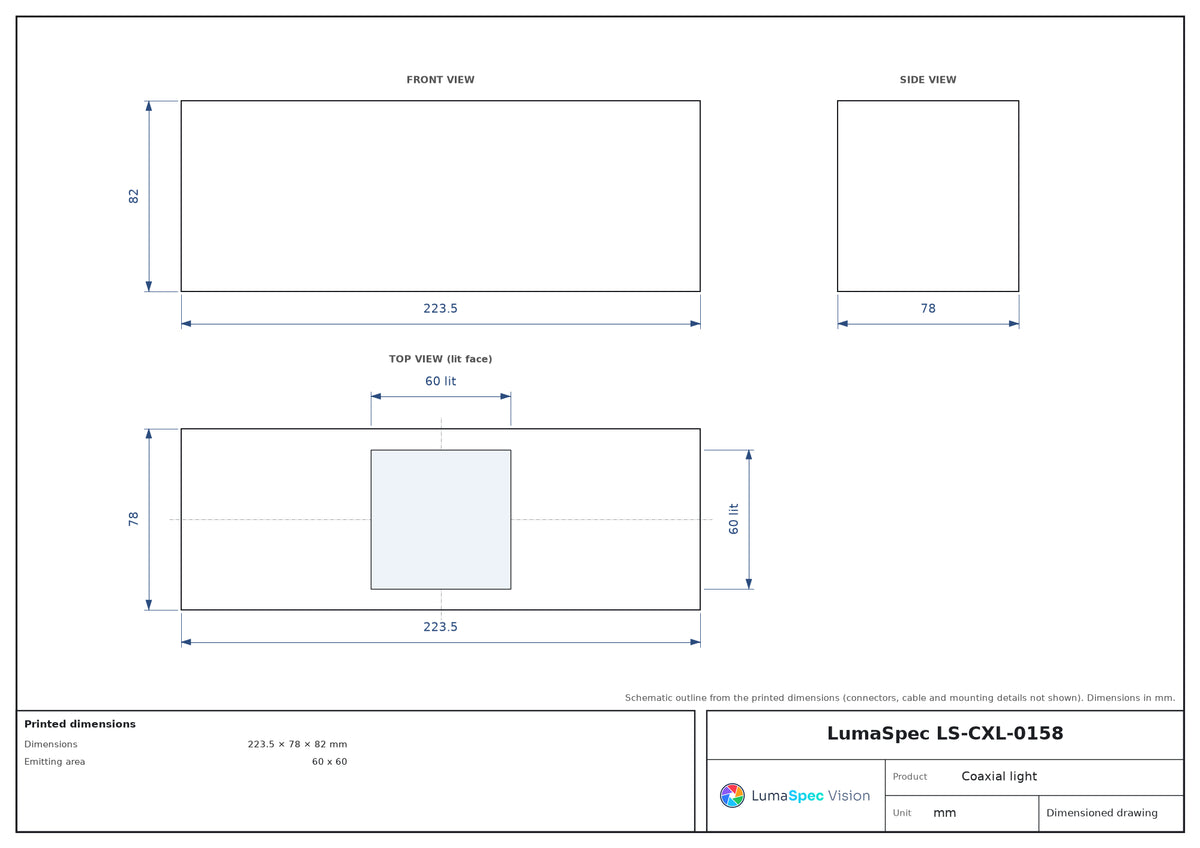

Dimensions (mm)	223.5 × 78 × 82 mm
Shipping weight	1.00 kg

Other models in the Parallel coaxial lights (LS-CXL-S24) series

See all 4 models

Model	Size / key data	Price	Availability	Link
LS-CXL-0155	30 x 30 mm	from $430.00	Ships in 3-4 weeks	View
LS-CXL-0156	40 x 40 mm	from $460.00	Ships in 3-4 weeks	View
LS-CXL-0157	50 x 50 mm	from $480.00	Ships in 3-4 weeks	View
