Representative photo of this series
Coaxial lights
60 x 61 mm Corner coaxial light (LS-CXL-0144)
Model LS-CXL-0144
- ColourRed, Green, Blue, White
- Voltage24 V

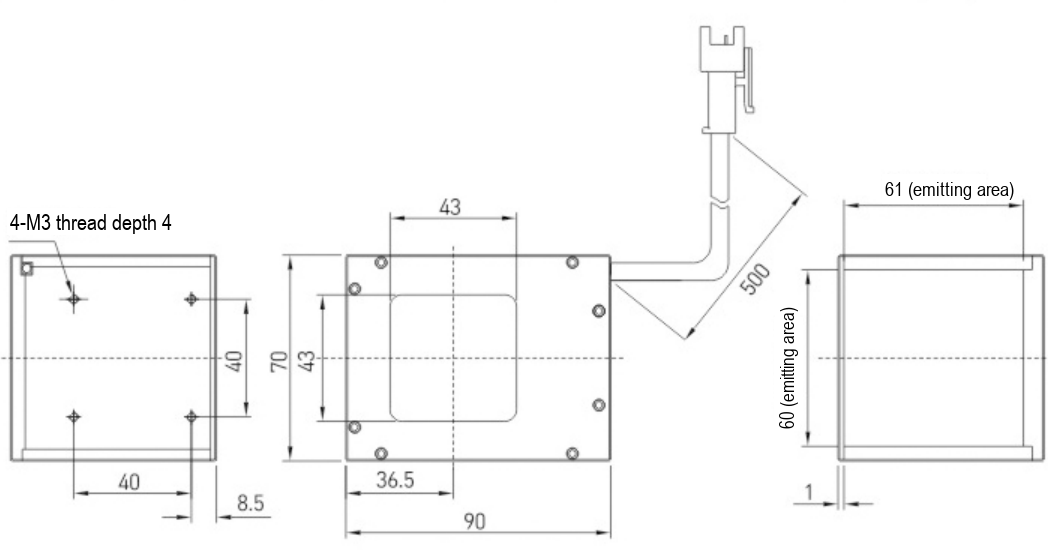

- Cable length500 mm (drawings)
- Power R7.2 W
$269.00
Ships in 2-3 weeks
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Corner coaxial light with a high-density LED array for high brightness and clear imaging. Its special coating eliminates image ghosting, and the camera mounts from the side to save installation space.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0144 |
|---|---|
| L (mm) | 90 |
| W (mm) | 70 |
| H (mm) | 70 |
Interfaces and I/O
| Cable length | 500 mm (drawings) |
|---|---|
| Cable length (mm) | 500 |
Light
| Luminous size (mm) | 60 x 61 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
Electrical
| Power R (W) | 7.2 |
|---|---|
| Power G/B/W (W) | 7.2 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical
| Mounting | 4-M3 depth 4 |
|---|---|
| Shipping weight | 0.55 kg |
Other models in the Corner coaxial light (LS-CXL-S21) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0141 | 20 x 20 mm | $119.00 | Ships in 2-3 weeks | View |
| LS-CXL-0142 | 24 x 24 mm | $129.00 | Ships in 2-3 weeks | View |
| LS-CXL-0145 | 32 x 25 mm | $149.00 | Ships in 2-3 weeks | View |
| LS-CXL-0143 | 40 x 40 mm | $179.00 | Ships in 2-3 weeks | View |
