Representative photo of this series
Coaxial lights
87 x 82 mm Coaxial parallel light (LS-CXL-0120)
Model LS-CXL-0120
- ColourRed, Green, Blue, White
- Emitting area87 x 82 mm
- Voltage24 V
- Wavelength red620-630 nm
$419.00
Ships in 2-3 weeks
1.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial parallel light with high brightness, high uniformity and a high degree of parallelism.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0120 |
|---|---|
| Optional accessories | Extension cable |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| L (mm) | 255 |
| W (mm) | 94.3 |
| H (mm) | 93 |
Interfaces and I/O

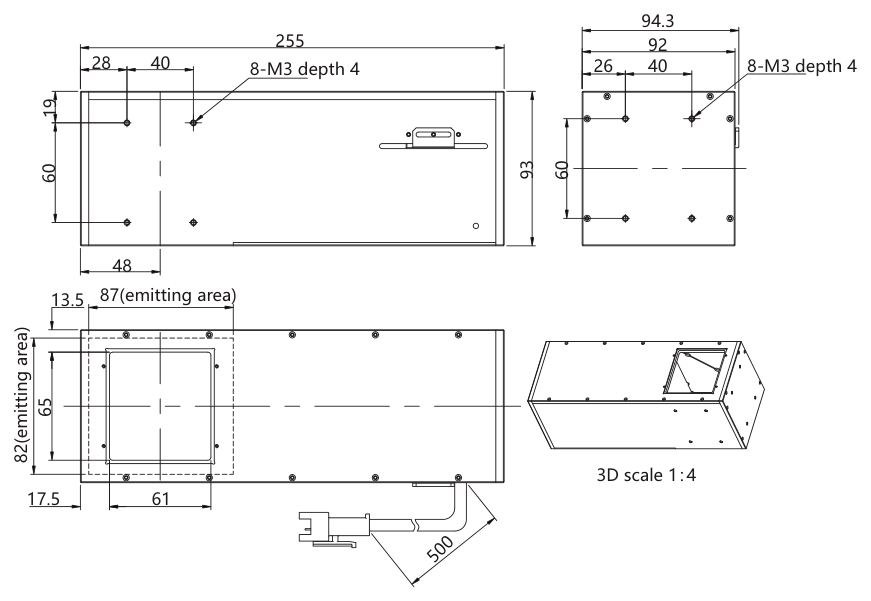

| Cable length | 500 mm (drawings) |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Emitting area (mm) | 87 x 82 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-0158 |
|---|---|
| Power R (W) | 3 |
| Power G/B/W (W) | 3 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical
| Shipping weight | 1.30 kg |
|---|
Other models in the Coaxial parallel light (LS-CXL-S18) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0116 | 30 x 30 mm | $149.00 | Ships in 2-3 weeks | View |
| LS-CXL-0117 | 40 x 40 mm | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0118 | 50 x 50 mm | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0119 | 60 x 60 mm | $269.00 | Ships in 2-3 weeks | View |
