Coaxial lights
67 x 67 mm Ring-Angle Coaxial Light (LS-CXL-0110)
Model LS-CXL-0110
- ColourRed, Green, Blue, White
- Emitting area67x67 mm
- Size102x75x72 mm
- Voltage24 V
$359.00
Ships in 2-3 weeks
0.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
67 x 67 mm Ring-Angle Coaxial Light. Ring angle coaxial light with 90 degrees between the light path and the camera, giving a compact, space-saving structure with high uniformity and high luminance.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0110 |
|---|
Light
| Emitting area (mm) | 67x67 |
|---|---|
| Colours | Red, Green, Blue, White |
| Illuminance (LS-CXL-0110, read from curve) | approx. 10,000 lx at 10 mm falling to approx. 1,200 lx at 130 mm working distance |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 8 |
| Power G/B/W (W) | 12 |
Mechanical

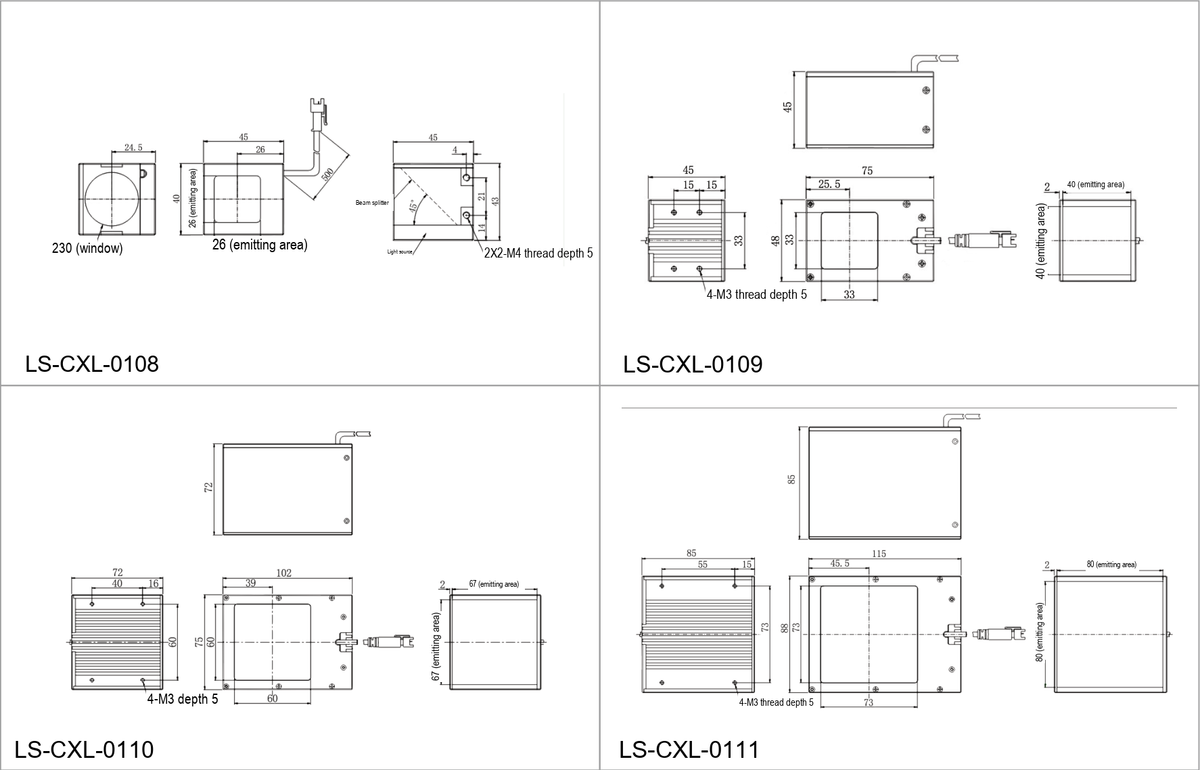

| Outer size L x W x H (mm) | 102x75x72 |
|---|---|
| Shipping weight (estimated) | 0.60 kg |
Other models in the Ring angle coaxial light (LS-CXL-S16) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0108 | 26 x 26 mm | $159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0109 | 40 x 40 mm | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0111 | 80 x 80 mm | $439.00 | Ships in 2-3 weeks | View |
