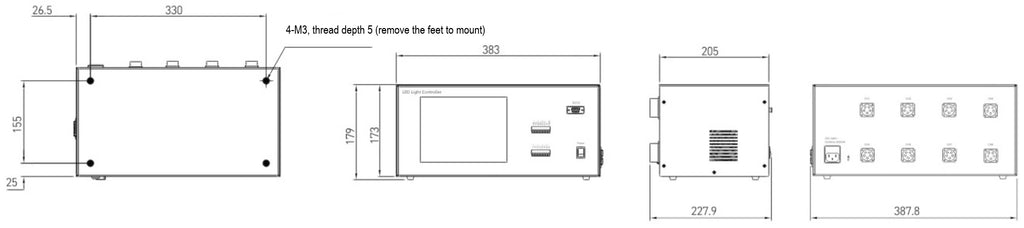

  • LS-CTL-0580 dimensions (mm)

Light controllers

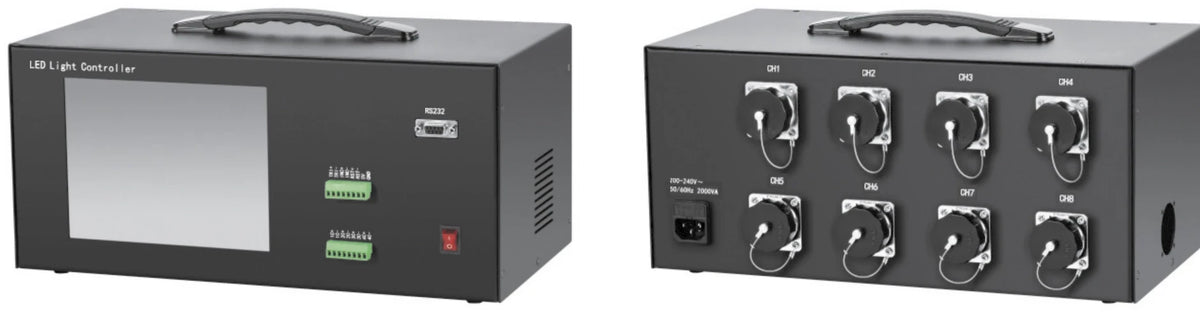

Time-division line-scan light controller, 8 ch, 1500 W (LS-CTL-0580)

Model LS-CTL-0580

  • Channels8
  • OutputDC 48V
  • InputAC100-240V 50/60Hz
  • Total output1500 W
$1,449.00

Ships in 2-3 weeks

4.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Time-division line-scan light controller, 8 ch, 1500 W (LS-CTL-0580)LS-CTL-0580

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Time-division line-scan light controller: one trigger input can freely combine the 8 channels for output; screen display, RS232 communication, screw mounting and high-speed optocoupler trigger input with a maximum trigger delay of 500 ns.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0580
Drive methodConstant voltage
Control modeRS232 communication
Cooling methodForced cooling
PanelDisplay screen (settings), RS232 socket, trigger port, AC switch; rear: 8 light outputs (dia.24-5 pin aviation connector, each independently controlled), AC socket

Environment and compliance

Operating temp/humidity0~40 °C, 20~85 %RH (non-condensing)
Storage temp/humidity-20~60 °C, 20~85 %RH (non-condensing)

Electrical

Input voltageAC100-240V 50/60Hz
Channels8
Output voltageDC 48V
Differential trigger voltage5V
Single-ended trigger voltageC12V~24V (current about 5.6mA) (as printed)
Camera output voltage5V
Reset voltageDC12V-24V
Total power1500W
Output portdia.24 5-pin aviation connector
Trigger delay<500ns
Trigger portTRI+/TRI- single-ended trigger input (DC12-24V, NPN or PNP); INC+/INC- differential trigger input (5V); RST+/RST- reset input (5-24V); 5V/GND 5V output; 1C+/1C- ... 4C+/4C- camera 1-4 outputs (5V differential)
Trigger timingReset signal held longer than 50μs; after reset the output restarts from the first combination
Total output (W)1500

Mechanical

Dimensions387.8 x 227.9 x 179 mm
Mounting4-M3 threads, depth 5 (remove the feet)

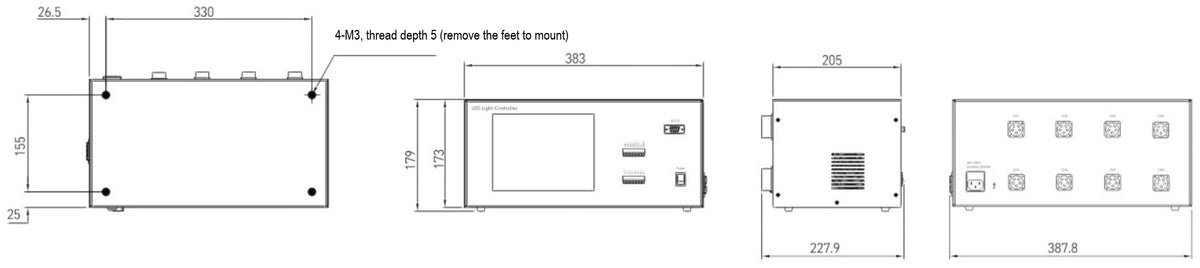

Dimensions (mm)383 W (330 + 26.5 base) x 179 H (173 body) x 205 D (227.9 overall); rear 387.8 wide
Shipping weight4.20 kg
