Light controllers

Digital constant-current light controller, 10W, 2 channels, SMR-03V-B connector, Spot light controller (LS-CTL-0571)

Model LS-CTL-0571

Output5 VDC
Input100 ~ 240 VAC, 50/60 Hz
ControlRS-232
Channels2 channels

$339.00

Ships in 2-3 weeks

0.86 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Digital constant-current light controller, 10W, 2 channels, SMR-03V-B connector, Spot light controller. 2+ channels for 5 V spot lights with 256 brightness levels Controlled via panel potentiometer or RS-232 serial communication

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0571
Lighting mode	Constant current
PWM frequency	Not supported
Dimming mode	Panel knob, Serial communication
Lighting response time	<150 μs
Cooling mode	Natural cooling

Interfaces and I/O

Communication protocol	RS-232
Applicable product	Spot light
Power supply interface	AC socket
Console interface	Serial port
Digital I/O	2 inputs, 1 internal power output
Lighting output connector	SMR-03V-BC

Light

Brightness level	Panel knob: 0 to 10; Serial communication: 0 to 255

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 85% RH (no condensation)
Ingress protection	IP30 (when properly installed)
Certification	CE, RoHS

Electrical

Drive mode	Constant current
Strobe overdrive	Not supported
Channel	2
Trigger mode	External trigger supported, Internal trigger
Input voltage	100 ~ 240 VAC, 50/60 Hz
Input current	0.2 A
Output current	1.4 A max
Output power	10 W max
Output current for each channel	0.7 A max
Trigger in	Level signal DC 5 to 24 V / 6 mA
Trigger out	Not supported
Output voltage	5 VDC

Mechanical

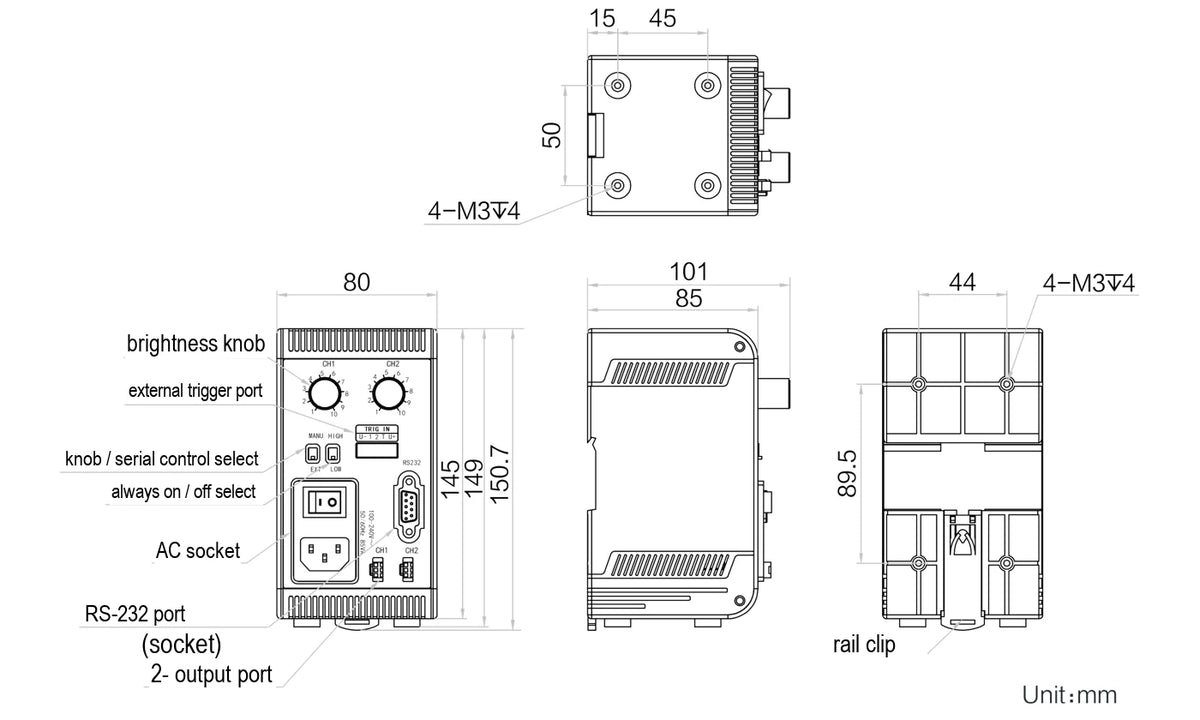

Dimension	150.7 mm × 80 mm × 101 mm
Shell material	Plastic
Weight	Approx. 540 g
Shipping weight (estimated)	0.86 kg
