Digital controller, high cost-effective (LS-CTL-S119)

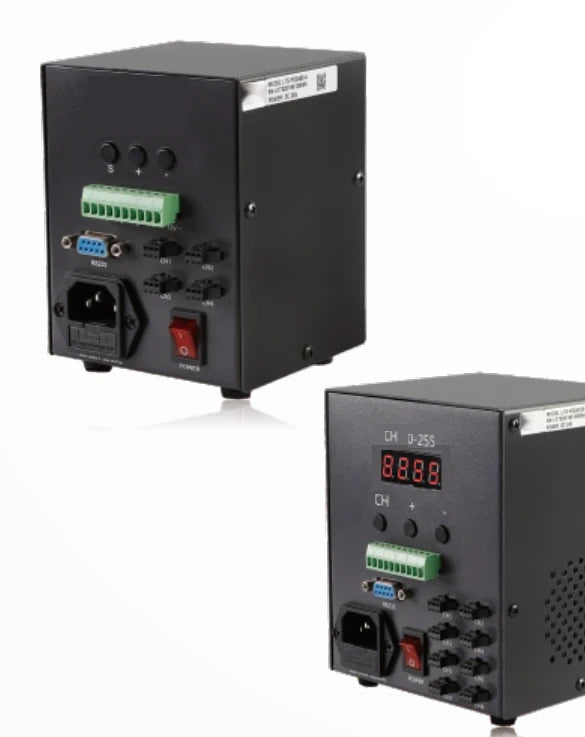

Representative photo of this series

Light controllers

Digital controller, high cost-effective, 8 ch, 120 W (LS-CTL-0562)

Model LS-CTL-0562

Channels8
Output0-24V
InputAC 100-240V
Total output120W
ControlRS232 serial port

$669.00

Ships in 2-3 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Digital controller: each channel controlled independently with high precision, digital display and button control, RS232 communication with PC, trigger input and power-off saving.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0562
Saving function	luminance kept when power off
Normal on/normal closed mode switch	change H mode by CH button (H1 normal on, H0 normal closed)

Interfaces and I/O

Communication	RS232 serial port

Light

Luminance control method	manual adjust by button, PC remote adjustment
Luminance control mode	PWM adjust (PWM duty ratio)
Luminance control level	256 level

Electrical

Input voltage	AC 100-240V
Input frequency	50/60Hz
Output voltage range	0-24V
External trigger voltage	5-24V
Channels	8
Output voltage	0-24V
One way max. output power	60W
Total output power	120W
External trigger support	Y

Mechanical

Mounting	DIN guide rail mounting base
Shipping weight	1.00 kg

Other models in the Digital controller, high cost-effective (LS-CTL-S119) series

See the category

Model	Size / key data	Price	Availability	Link
LS-CTL-0561	4 ch, 60 W	$459.00	Ships in 2-3 weeks	View
