Light controllers

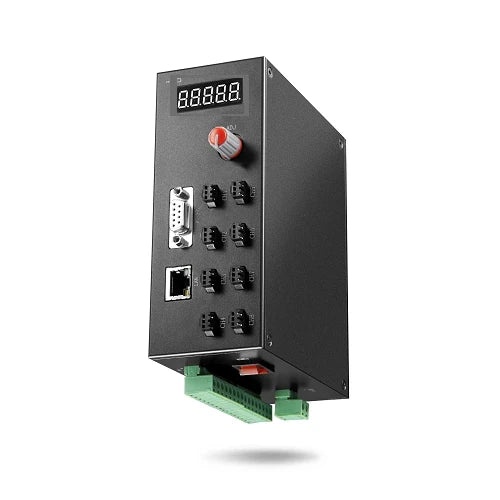

8 channel digital strobe light controller, 8 ch (LS-CTL-0559)
Model LS-CTL-0559
- Channels8
- ControlRS-232/LAN
- TriggerContinuous, Switched, Strobe
- FeatureStrobe
$519.00
Ships in 2-3 weeks
1.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 channel digital strobe light controller with power supply DC24V, each channel current range 0~1000mA, channels 8, intensity levels 0~255, external trigger mode Continuous, Switched, Strobe.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0559 |
|---|---|
| Intensity levels | 0~255 |
| Light short-circuit indicate | E01-08 |
| Control | Digital, 256 levels (0~255), RS-232/LAN |
Interfaces and I/O
| Communication port | RS-232/LAN |
|---|
Light
| High brightness/strobe mode | 1.5A Maximum working time 5ms Set up working time by communication port(100-5000us) |
|---|
Environment and compliance
| Operating environment | Temperature 0~40°C / Humidity 25%~85% |
|---|
Electrical
| Power supply | DC24V |
|---|---|
| Each channel current range | 0~1000mA |
| Channels | 8 |
| External trigger mode | Continuous, Switched, Strobe |
| External trigger voltage | 5~24V |
| Baud rate and data format | 9600/data bit, 8/stop bit, 1/no parity |
Mechanical
| Installation mode | DIN |
|---|---|

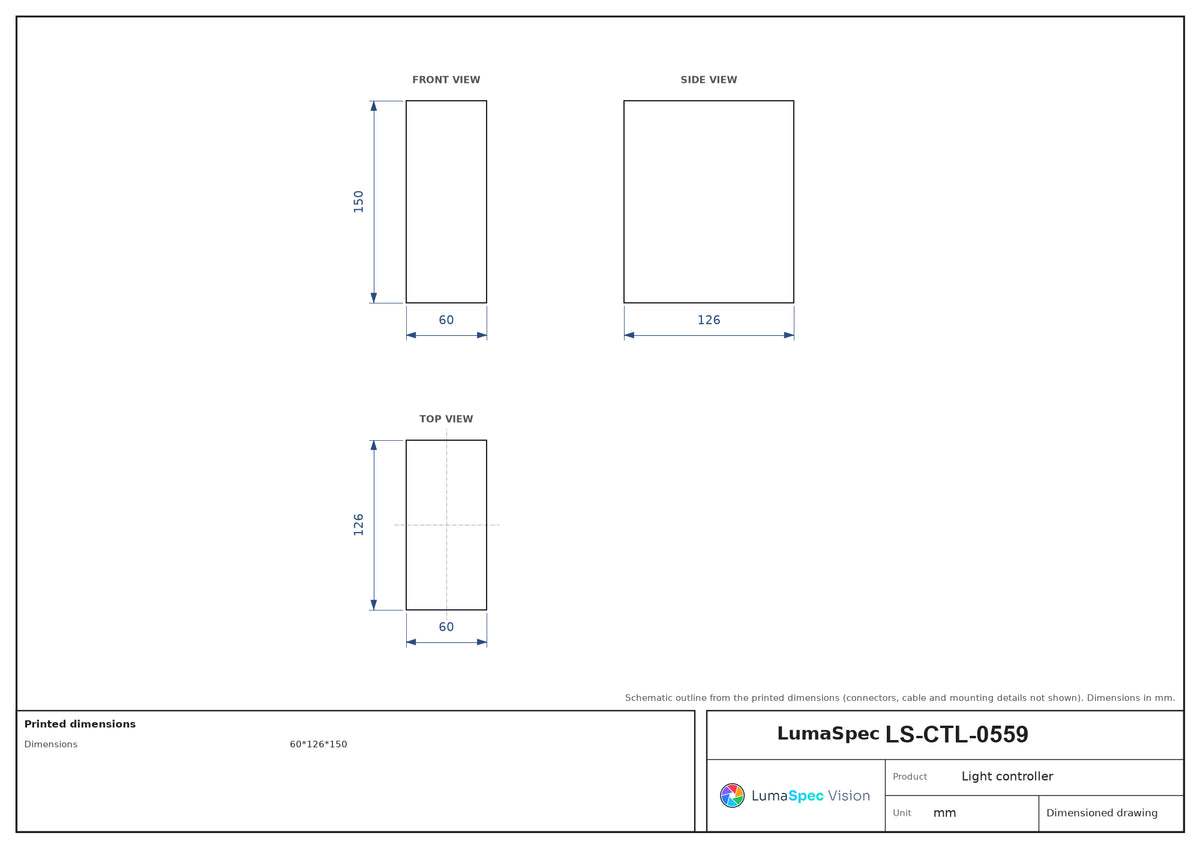

| Dimensions (mm) | 60*126*150 |
| Weight | 808g |
