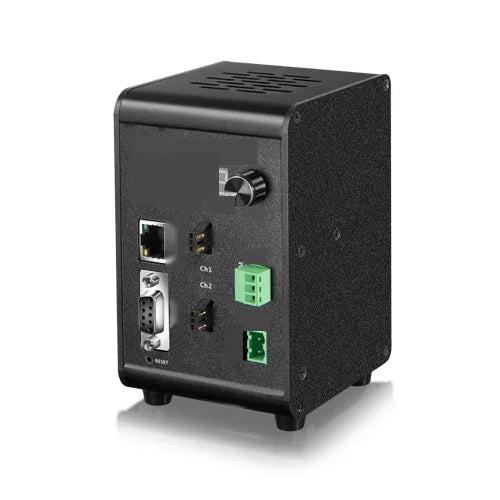

Digital light controller, 2 / 4 / 8 channel, 4 ch, 96 W (LS-CTL-0556)
Model LS-CTL-0556
- Channels4
- Total output96 W
- OutputConstant current
- ControlDigital
$329.00
Ships in 2-3 weeks
0.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Digital light controller, 2 / 4 / 8 channel with power input DC24V~30V 1A~4.5A, max output 24V1A ( each channel) 96W ( 4 channels in total), output terminal 2.54mm SM-3P Butt plug with empty pin in the middle, drive mode Constant Current Driving, intensity control 0~255(0 closed, 255 max ).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0556 |
|---|---|
| Intensity control | 0~255(0 closed, 255 max ) |
| Operating mode | Continuous and strobe (trigger voltage 5V ~ 24V) |
| Cooling method | Natural cooling |
| Accessories | DC5.5X2.1mmfemale wire (35cm, wire diameter 0.5mm²)X1 |
| Note | A patch cord is required when using spot light. |
Interfaces and I/O
| Communication mode | RS-232(9600, 8N1,default address : 253) 10/100M Ethernet ( default IP: 192.168.1.253, TCP port number: 502) |
|---|
Environment and compliance
| Use environment (indoor) | Temperature; 0℃~40℃ , humidity 25%~85%RH(No condensation) |
|---|---|
| Preservation environment (indoor) | Temperature -20℃~60℃ , humidity 25%~85%RH(No condensation) |
Electrical
| Power input | DC24V~30V 1A~4.5A |
|---|---|
| Power supply terminal | 5.08mm2EDGK-2P Butt plugs support 0.3mm²~2.5mm² wire diameter |
| Max output | 24V1A ( each channel) 96W ( 4 channels in total) |
| Output terminal | 2.54mm SM-3P Butt plug with empty pin in the middle |
| Drive mode | Constant Current Driving |
| Reverse power input protection | Yes |
| Output short circuit protection | Yes |
| Trigger delay response | ≤5us |
| Trigger delay pulse width | 0.1mS~999.9mS(0.1ms step length) |
| Trigger response frequency | ≤20KHz |
| Trigger access terminal | 3.81mm15EDGK-5P Butt plugs support 0.3mm²~1.5mm² wire diameter |
| Channels | 4 |
| Total output (W) | 96 |
| Voltage | DC24V~30V 1A~4.5A |
Mechanical
| Installation method | Support DIN standard rail (35mm width) |
|---|---|

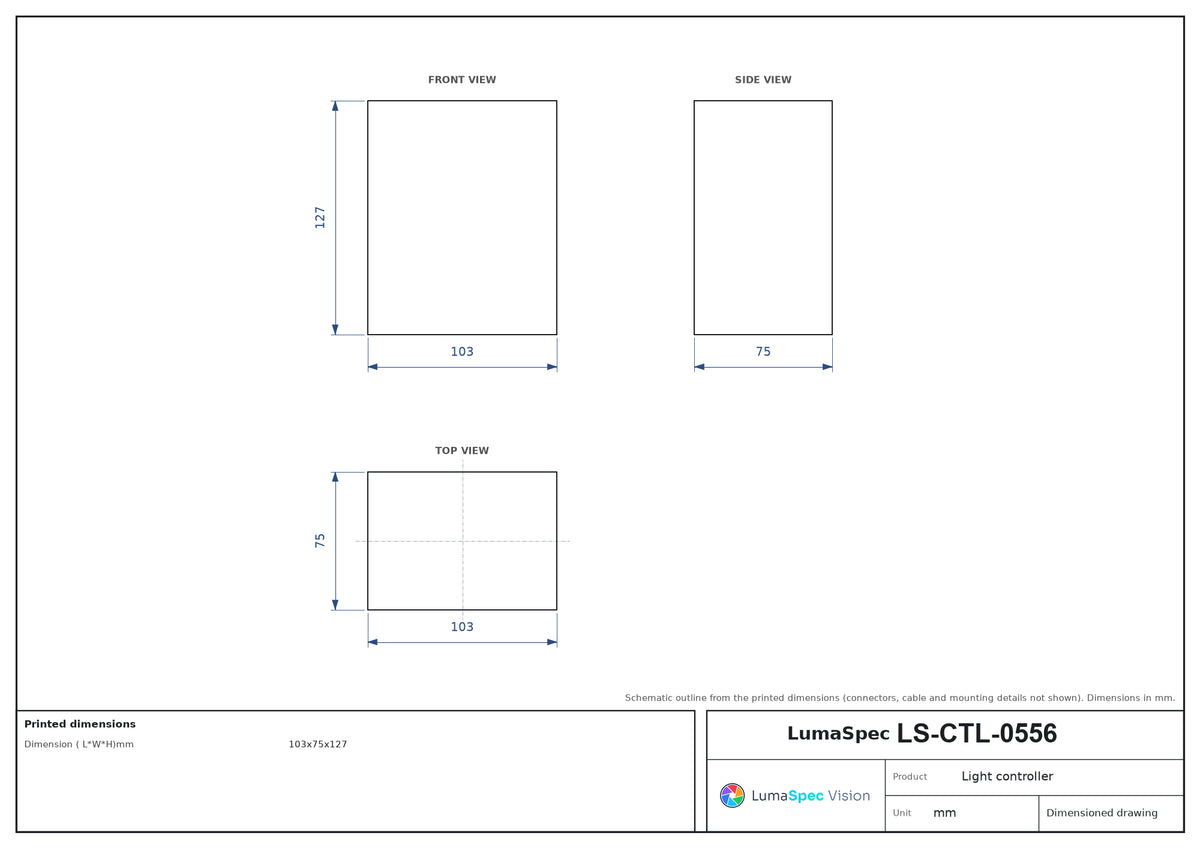

| Dimension ( L*W*H)mm | 103x75x127 |
| Weight (g) | 500g |
Other models in the Digital light controller, 2 / 4 / 8 channel (LS-CTL-S116) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0555 | 2 ch, 48 W | $239.00 | Ships in 2-3 weeks | View |
| LS-CTL-0557 | 8 ch, 192 W | $509.00 | Ships in 2-3 weeks | View |
