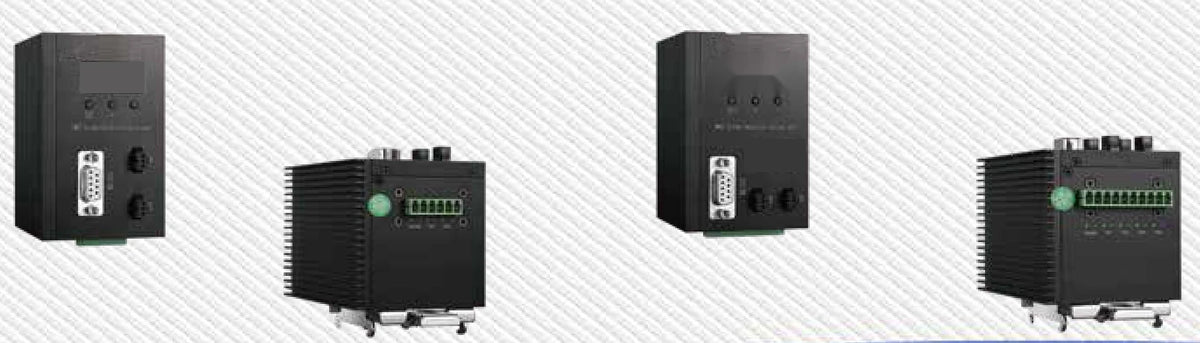

2 / 4 channel digital LED light controller, 4 ch (LS-CTL-0551)

Model LS-CTL-0551

Channels4
Output24V
ControlRS-232
TriggerContinuous, Switched, Strobe

$329.00

Ships in 2-3 weeks

0.7 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

A constant current type of 2 or 4 channels digital light controller for high precision and intensity control of machine vision LED light.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0551
Intensity levels	0~255
Control	Digital, 256 levels (0~255), RS-232

Interfaces and I/O

Communication port	RS-232

Environment and compliance

Operating environment	Temperature 0~40°C / Humidity 25%~85%

Electrical

Power supply	DC24V
Max. output current of each channel	1A
Max. output voltage of each channel	24V
Channels	4
External trigger mode	Continuous, Switched, Strobe
External trigger voltage	5~24V
Trigger delay time	< 50us
Internal output pulse-width	1ms-999ms, in steps of 1ms
Baud rate and data format	9600/data bit, 8/stop bit, 1/no parity

Mechanical

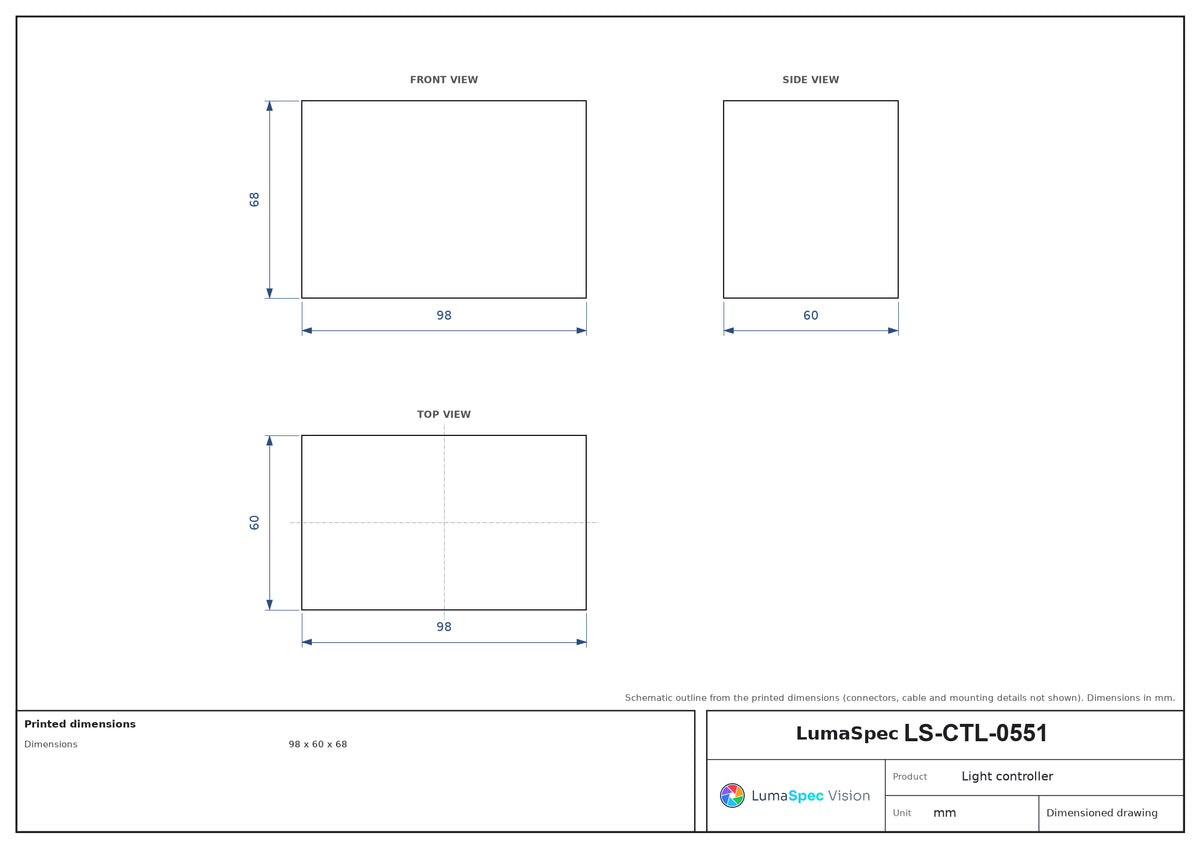

Dimensions (mm)	98 x 60 x 68
Installation mode	DIN
Weight	0.45kg

Downloads

Datasheet (PDF)LS-CTL-0551 · 830 KB

Features

Each channel functions individually with external trigger input
Constant current output. Maximum output current 1000mA, output voltage 24V of each channel
256 levels of intensity adjustment
External trigger mode has three types: Continuous, Switched, Strobe with trigger delay time <50us
Strobe mode output pulse width is adjustable from 1ms-999ms, in steps of 1ms; strobe mode improves the efficiency of the light source and extends the working life of the LED
RS232 communication port with PC for remote control
Professional heat dissipation design to ensure stability in full power operation and extend working time of the controller
External trigger mode has three types; Continuous, Switched strobe with trigger delag time

Applications

Machine vision LED light control

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the 2 / 4 channel digital LED light controller (LS-CTL-S112) series

See the category

Model	Size / key data	Price	Availability	Link
LS-CTL-0550	2 ch	$239.00	Ships in 2-3 weeks	View
