External power digital controller, 2/4 channels (LS-CTL-S109)

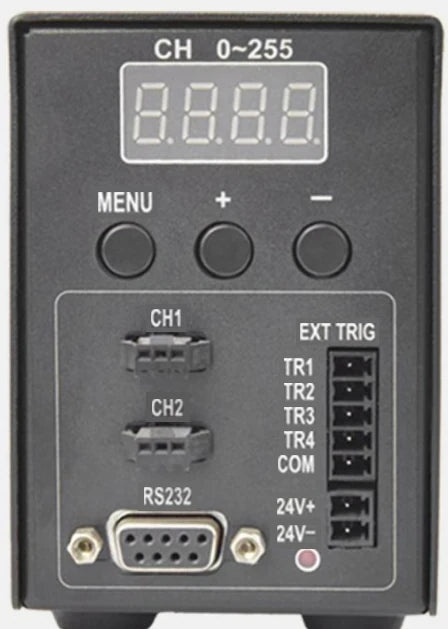

Representative photo of this series

Light controllers

External power digital controller, 2 ch (LS-CTL-0545)

Model LS-CTL-0545

Channels2
Control9600-115200bps optional
TriggerEdge + level trigger
OutputConstant voltage 24 V

$349.00

Ships in 2-3 weeks

0.4 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Support RS232/RS485 communication. External power supply up to 24V. Low trigger response time.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0545
Working mode	0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe
Control	digital (buttons, 4-digit display) / RS232 / RS485

Interfaces and I/O

Communication baud rate	9600-115200bps optional

Light

Brightness level	255 levels
Luminous mode	Normal light, normal extinction, strobe
Connected light source type	10mA~4A 24V power supply

Environment and compliance

Operating temperature	-5~50°C

Electrical

Maximum output current of single channel	4A
Maximum input voltage	24V
Maximum output voltage	24V
Short-circuit protection	have
Millisecond strobe time	1~999ms
Microsecond strobe time	1~999us
Trigger mode	Edge + level trigger
Driving mode	PWM
Built-in power supply power	NO
Number of channels	2
Overheat protection	no

Mechanical

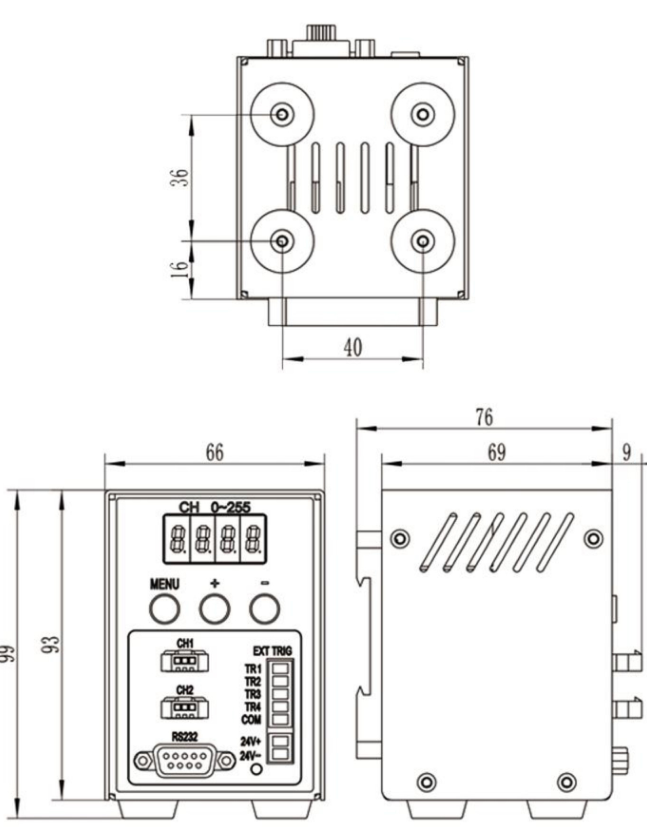

Dimension	66x85x99mm
Shipping weight	0.40 kg

Other models in the External power digital controller, 2/4 channels (LS-CTL-S109) series

See the category

Model	Size / key data	Price	Availability	Link
LS-CTL-0546	4 ch	$479.00	Ships in 2-3 weeks	View
