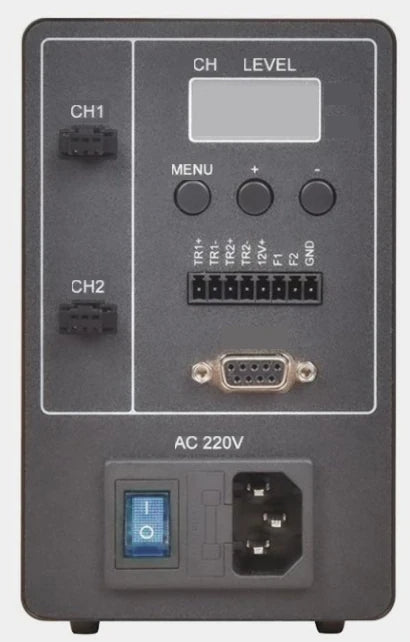

Representative photo of this series
Light controllers
Brightening strobe controller, 4 ch, 65 W (LS-CTL-0531)
Model LS-CTL-0531
- Channels4
- Total output65 W
- Control9600-115200bps optional
- Triggeredge
$699.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Supports RS232 communication. Low trigger response time (10us). Support external/internal triggering modes.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0531 |
|---|---|
| Working mode | 0: Internal trigger; 1: External trigger |
| Control | digital (buttons, 4-digit display) / RS232 |
Interfaces and I/O
| Communication baud rate | 9600-115200bps optional |
|---|
Light
| Brightness level | no |
|---|---|
| Luminous mode | Flicker |
| Connected light source type | 10mA~2.5A 24V power supply |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum output current of a single channel | Instantaneous 20A |
|---|---|
| Maximum input voltage | AC220V |
| Maximum output voltage | 48V |
| Overheat protection | 65W none, all others have |
| Short-circuit protection | no |
| Millisecond strobe time | no |
| Microsecond strobe time | 10~999us |
| Trigger mode | edge |
| Driving mode | 48V constant voltage |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Total output (W) | 65 |
Mechanical

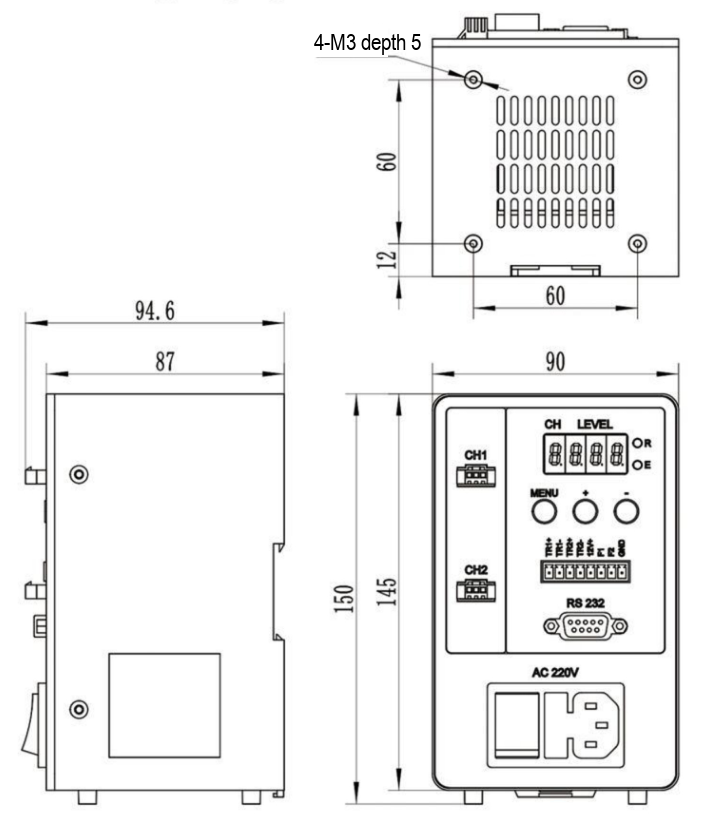

| Dimension | 90×94.6×150mm |
|---|---|
| Shipping weight | 0.65 kg |
Other models in the Brightening strobe controller, 2/4 channels (LS-CTL-S105) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0530 | 2 ch, 65 W | $699.00 | Ships in 2-3 weeks | View |
| LS-CTL-0532 | 2 ch, 120 W | $859.00 | Ships in 2-3 weeks | View |
| LS-CTL-0533 | 4 ch, 120 W | $859.00 | Ships in 2-3 weeks | View |
| LS-CTL-0534 | 4 ch, 200 W | $1,089.00 | Ships in 2-3 weeks | View |
