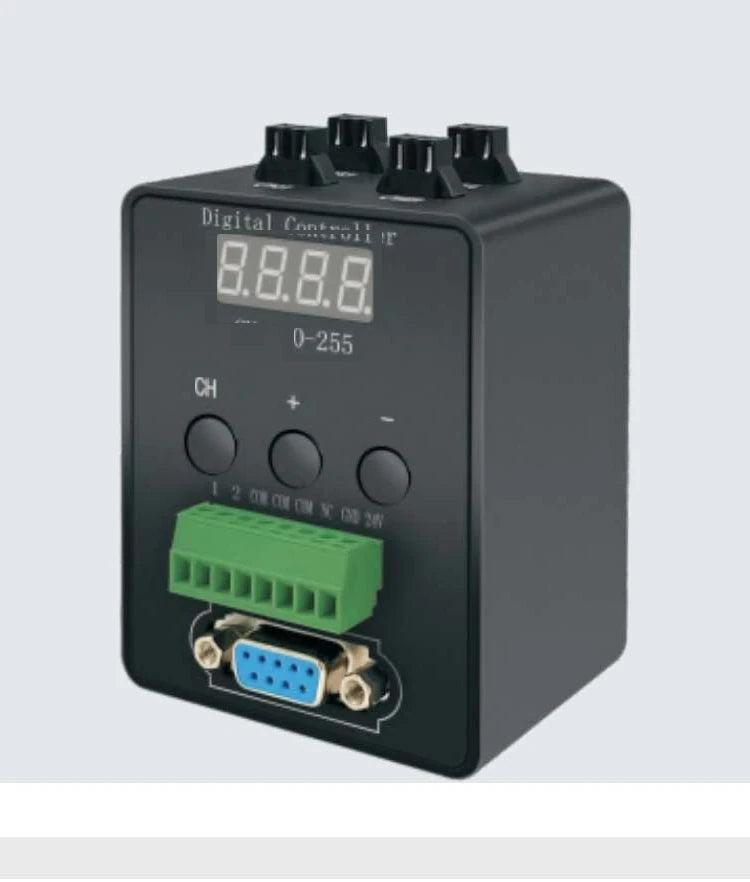

Representative photo of this series
Light controllers
MDPC digital power supply controller, 4 ch (LS-CTL-0527)
Model LS-CTL-0527
- Channels4
- Output16-24 V
- InputDC24V
- Total output4A
- ControlFront-panel keys + RS232 serial port
$419.00
Ships in 2-3 weeks
0.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-CTL-S103 series digital controllers provide brightness-control power for 24 V LED lights, controlled from the front panel or by serial communication (remote control) with 0-255 (256 steps) brightness; built-in external trigger; no internal power supply, small and light.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0527 |
|---|---|
| Control | Front-panel keys + RS232 serial port |
| Dimming | 0-255 (256 steps) |
| Control (perform) | KEY buttons, RS232 serial port |
Electrical
| Input voltage | DC24V |
|---|---|
| Output voltage | 16-24 V |
| Trigger wiring | Trigger terminals can be wired common-positive or common-negative; COM is the common input; numbers are the channel inputs; NC unused; +24V and GND are the DC 24 V input. |
| Channel / output | C4 O4 (4 channels, 4 outputs) |
| Single channel current | 2A |
| Total output current | 4A |
| Trigger input | Yes |
| Channels | 4 |
Mechanical
| Mounting | Base mounting clip |
|---|---|
| Shipping weight | 0.30 kg |
Other models in the MDPC digital power supply controller (LS-CTL-S103) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0526 | 2 ch | $319.00 | Ships in 2-3 weeks | View |
