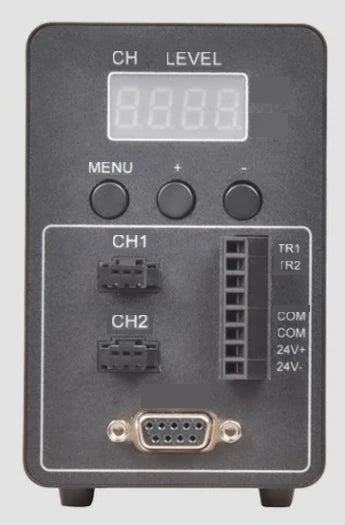

Representative photo of this series

Light controllers

ABS external power digital controller, 4 ch (LS-CTL-0524)

Model LS-CTL-0524

Channels4
Output24V
Control9600~115200 bps optional
TriggerEdge + level trigger

$479.00

Ships in 2-3 weeks

0.4 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Controller section 'ABS external power digital controller' of the light controller selection manual (cards P11-P12).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0524
Working mode	0: normally off, 1: on, 2: millisecond strobe, 3: microsecond strobe
Manual page code	P12
Control	Digital (display + buttons) / RS232

Interfaces and I/O

Communication baud rate	9600~115200 bps optional
Communication	RS232

Light

Connected light source type	10mA~1A 24V power supply
Brightness levels	255 levels
Luminous mode	Normally on / normally off / strobe

Environment and compliance

Operating temperature	-5~50 C

Electrical

Output voltage	24V
Number of channels	4
Built-in power supply	NO
Max input voltage	24V
Max output voltage	24V
Max current per channel	1A/3A
Overheat protection	1A none, 3A yes
Short-circuit protection	1A none, 3A yes
Millisecond strobe time	1~999 ms
Microsecond strobe time	1~999 us
Trigger mode	Edge + level trigger
Driving mode	PWM

Mechanical

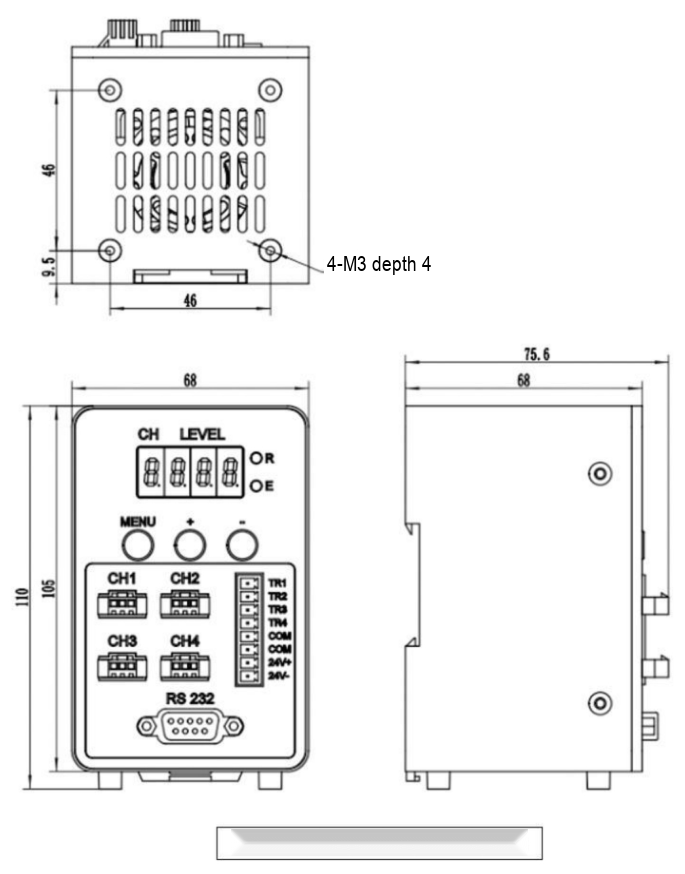

Dimension	68 x 76.5 x 110 mm
Mounting	Screw or C45 rail installation
Shipping weight	0.40 kg

Other models in the ABS external power digital controller (LS-CTL-S102) series

See the category

Model	Size / key data	Price	Availability	Link
LS-CTL-0525	4 ch	$479.00	Ships in 2-3 weeks	View
