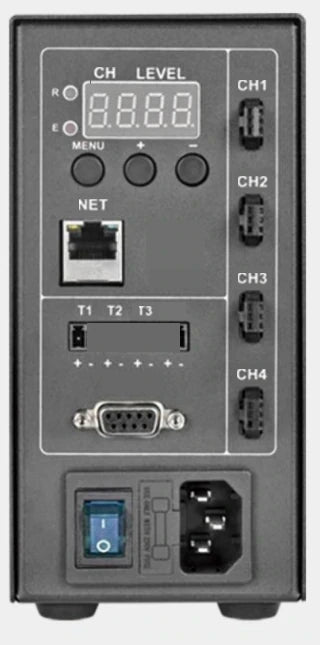

Representative photo of this series
Light controllers
Ethernet digital controller, 4 ch, 120 W (LS-CTL-0448)
Model LS-CTL-0448
- Channels4
- Total output120 W
- TriggerEdge + level trigger
- OutputConstant voltage 24 V
$499.00
Ships in 2-3 weeks
0.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Support RS232 communication. Support 100M Ethernet communication. Built-in 24V power supply.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0448 |
|---|---|
| Working mode | NORMAL: 0: Normally extinguished, 1: Bright, 2: Millisecond strobe; STROBE: 0: 1~999ms strobe, 1: 10~999 microseconds strobe |
| Control | digital (buttons, 4-digit display) / RS232 / Ethernet |
Interfaces and I/O
| Communication | RS232; 100Gb Ethernet |
|---|
Light
| Brightness level | 255 levels |
|---|---|
| Connection light source type | 24V light source |
| Luminous mode | Normal light, normal extinction, constant Brightness, strobe |
| Connected light source type | 10mA~4A 24V power supply |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum output current of single channel | 2.5A/4A |
|---|---|
| Maximum input voltage | AC220V |
| Maximum output voltage | 24V |
| Overheat protection | NO |
| Short-circuit protection | NO |
| Trigger delay time | 10us |
| Trigger mode | Edge + level trigger |
| Driving mode | PWM |
| Built-in power supply power | 120W |
| Number of channels | 4 |
| Total output (W) | 120 |
Mechanical

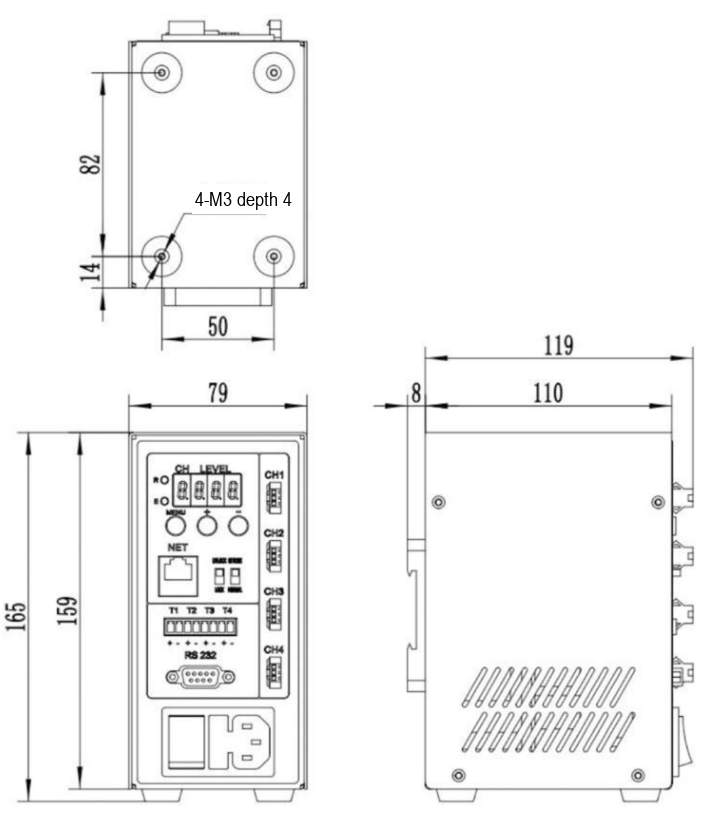

| Dimension | 79×127×165mm |
|---|---|
| Shipping weight | 0.80 kg |
