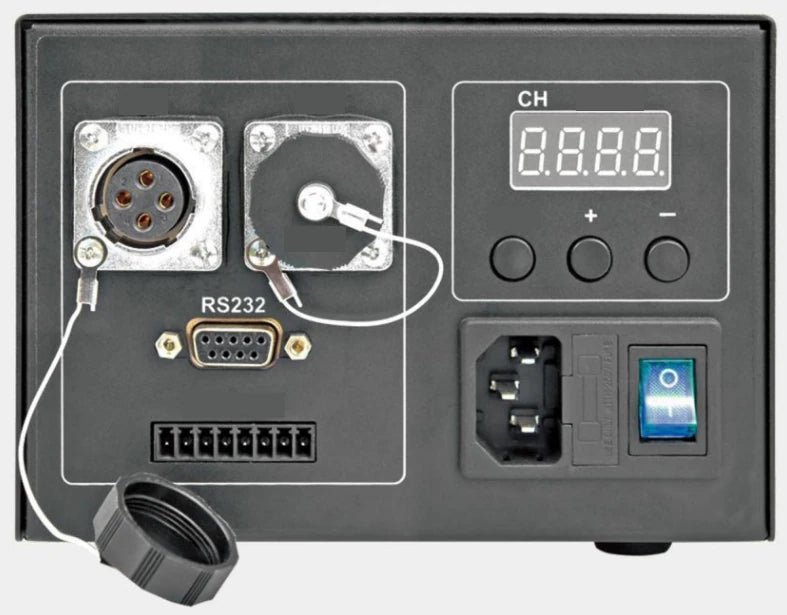

Representative photo of this series
Light controllers
High power controller, 2 ch, 600 W (LS-CTL-0445)
Model LS-CTL-0445
- Channels2
- Output24/48V
- Total output600 W
- ControlRS232 communication, 100M Ethernet
- TriggerEdge + level trigger
$969.00
Ships in 2-3 weeks
2.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High power digital voltage-type controllers with built-in high-power 24V switching power supply for high-power light sources, RS232 (and Ethernet on CE version), millisecond and microsecond strobe.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0445 |
|---|---|
| Working mode | 0: constant extinction, 1: always on, 2: millisecond strobe, 3: microsecond strobe |
| Control | Digital (4-digit display, buttons), RS232, 100M Ethernet |
Interfaces and I/O
| Communication | RS232 communication, 100M Ethernet |
|---|
Light
| Brightness levels | 255 |
|---|---|
| Luminous mode | Normal light, normal extinction, strobe |
| Connected light source type | 12A 24V light source |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Driving mode | PWM |
|---|---|
| Max input voltage | AC220V |
| Overheat protection | Yes |
| Short-circuit protection | No |
| Trigger | 5~24V external trigger, adaptable to high and low level trigger modes; edge + level |
| Trigger mode | Edge + level trigger |
| Built-in power supply power | 600W |
| Number of channels | 2 |
| Max output current per channel | 12A |
| Max output voltage | 24/48V |
| Built-in power supply | 600W |
| Total output (W) | 600 |
Mechanical

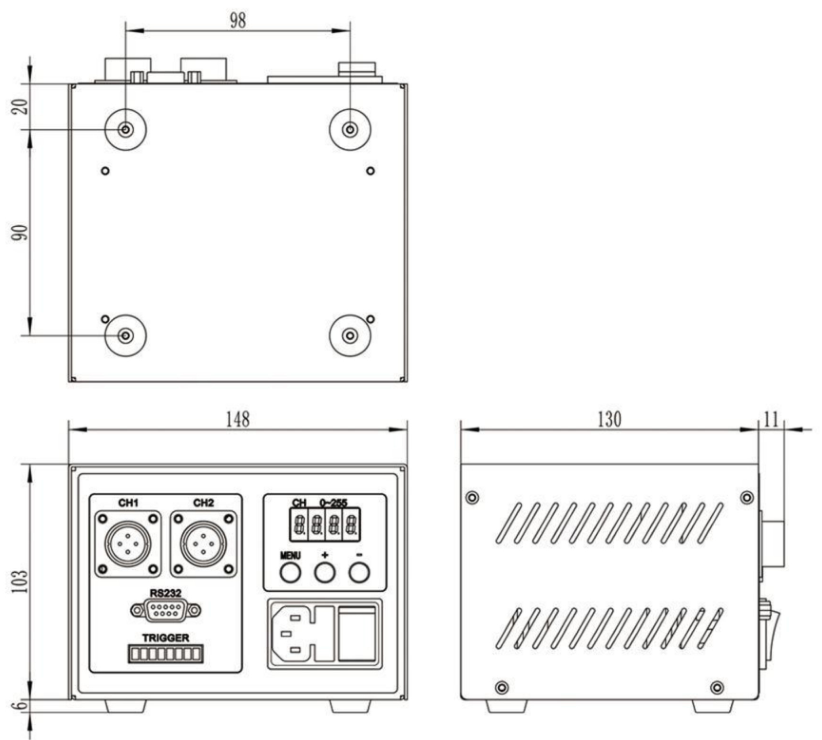

| Dimensions (mm) | 149 x 153 x 341 |
|---|---|
| Shipping weight | 2.70 kg |
