Light controllers

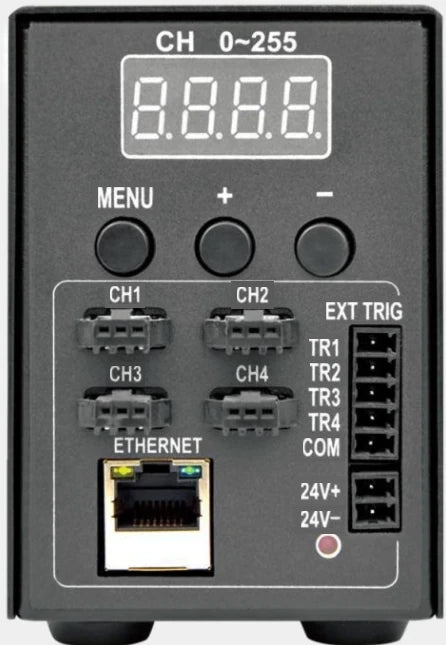

External power Ethernet controller, 4 ch (LS-CTL-0427)
Model LS-CTL-0427
- Channels4
- TriggerEdge + level trigger
- OutputConstant voltage 24 V
- ControlDigital
$479.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Support Ethernet communication. External power supply up to 24V. Low trigger response time (≤10us).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0427 |
|---|---|
| Working mode | 0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe |
| Ethernet | 100Gb Ethernet |
| Control | digital (buttons, 4-digit display) / Ethernet |
Light
| Brightness level | 255 levels |
|---|---|
| Luminous mode | Normal light, normal extinction, strobe |
| Connected light source type | 10mA~4A 24V power supply |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum output current of single channel | 4A |
|---|---|
| Maximum input voltage | 24V |
| Maximum output voltage | 24V |
| Overheat protection | NO |
| Short-circuit protection | NO |
| Millisecond strobe time | 1~99ms |
| Microsecond strobe time | 10~990us |
| Trigger mode | Edge + level trigger |
| Driving mode | PWM |
| Built-in power supply power | NO |
| Number of channels | 4 |
Mechanical

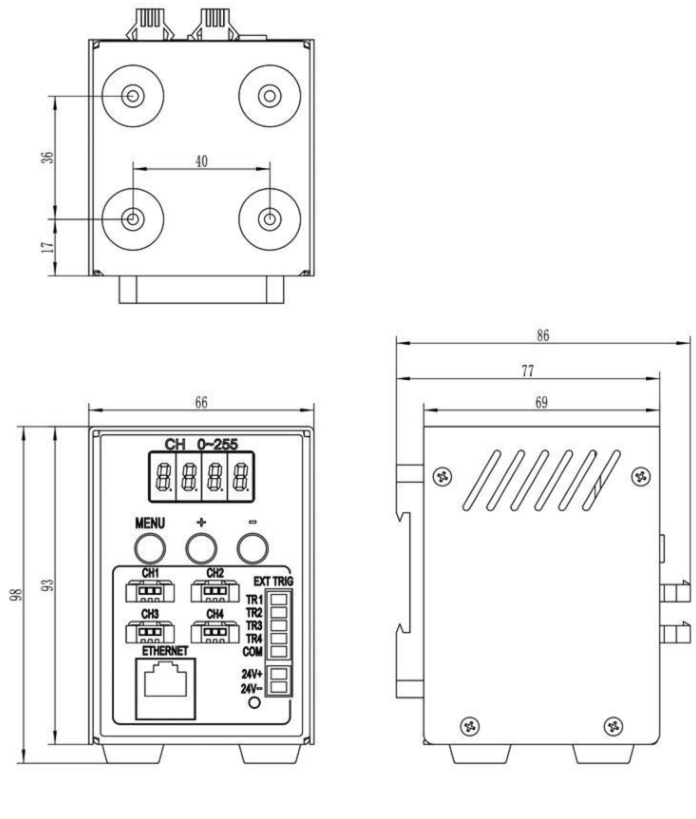

| Dimension | 66×86×98mm |
|---|---|
| Shipping weight | 0.40 kg |
