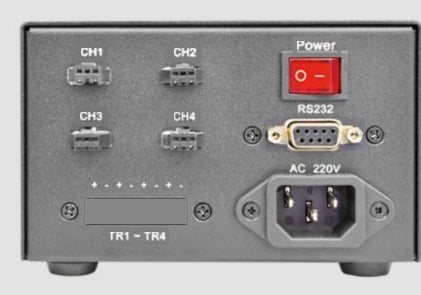

Representative photo of this series
Light controllers
Combination controller, 4 ch, 65 W (LS-CTL-0407)
Model LS-CTL-0407
- Channels4
- Output5/12/24V
- Total output65 W
- Control9600-115200bps optional
- TriggerEdge + level trigger
$259.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Support RS232 communication. Support 5V light source and 24V regular light source control at the same time. Built-in 24V switching power supply.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0407 |
|---|---|
| Working mode | 0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe |
| Feature 1 | Simultaneously supports a 5V point light source and 12/24V conventional light sources |
| Manual page code | P39 |
| Control | digital (buttons, 4-digit display) / RS232 |
Interfaces and I/O
| Communication baud rate | 9600-115200bps optional |
|---|---|
| Communication | RS232 |
Light
| Brightness level | 255 levels |
|---|---|
| Connected light source type | 5V point light source; 24V 10mA~1A light source |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum output current of single channel | 5V point light source interface maximum 0.5A; 24V interface max. 1A |
|---|---|
| Maximum input voltage | 220AC |
| Built-in power supply | 65W |
| Overheat protection | NO |
| Short-circuit protection | NO |
| Trigger mode | Edge + level trigger |
| Millisecond strobe time | 1~99ms |
| Microsecond strobe time | 10~990us |
| Driving mode | Constant voltage/current |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Output voltage | 5/12/24V |
| Max current per channel | 2.5/4A |
| Total output (W) | 65 |
Mechanical

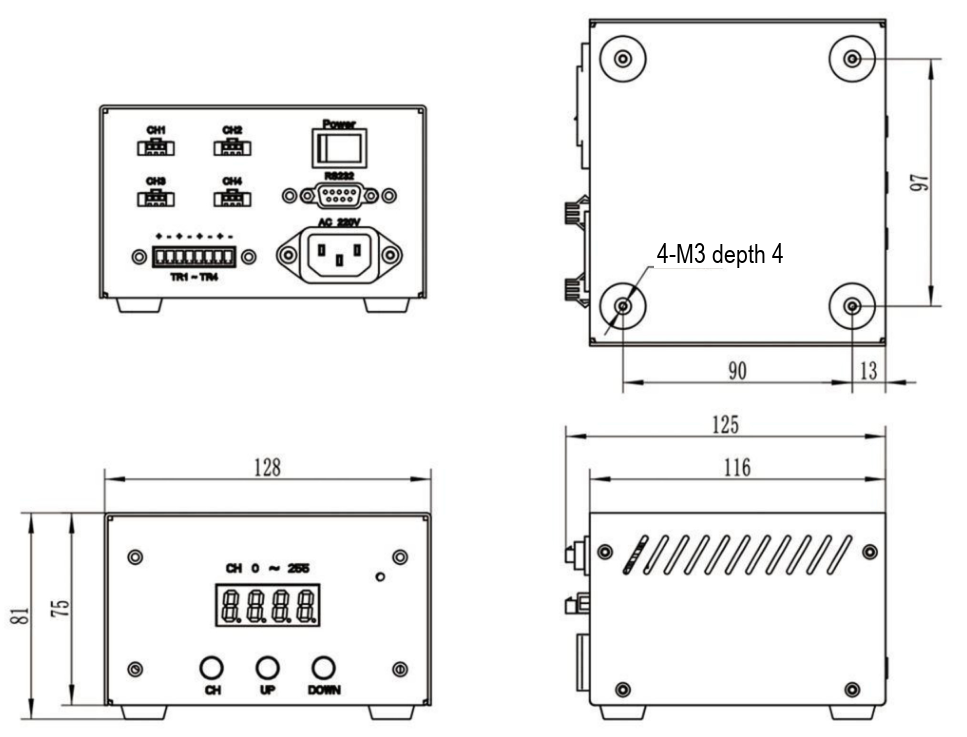

| Dimension | 128×125×81mm |
|---|---|
| Mounting | Screw or C45 rail installation |
| Shipping weight | 0.65 kg |
