Ordinary digital controller, 4 ch, 65 W (LS-CTL-0405)
Model LS-CTL-0405
- Channels4
- Total output65 W
- Control9600-115200bps optional
- TriggerLevel trigger
$459.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Controller section 'Ordinary digital controller' of the light controller selection manual (cards P31-P36).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0405 |
|---|---|
| Working mode | 0: Normally extinguished; 1: Bright |
| Control | digital (buttons, 4-digit display) / RS232 |
Interfaces and I/O
| Communication baud rate | 9600-115200bps optional |
|---|
Light
| Brightness level | 255 levels |
|---|---|
| Connected light source type | 10mA~2.5A 24V power supply |
| Luminous mode | Normal light, normal extinction, strobe |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum input voltage | AC220V |
|---|---|
| Maximum output voltage | 24V |
| Overheat protection | NO |
| Short-circuit protection | NO |
| Trigger mode | Level trigger |
| Driving mode | PWM |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Maximum output current of single channel | 2.5A/4A |
| Built-in power supply | 65W/120W |
| Microsecond strobe time | 10us |
| Total output (W) | 65 |
Mechanical

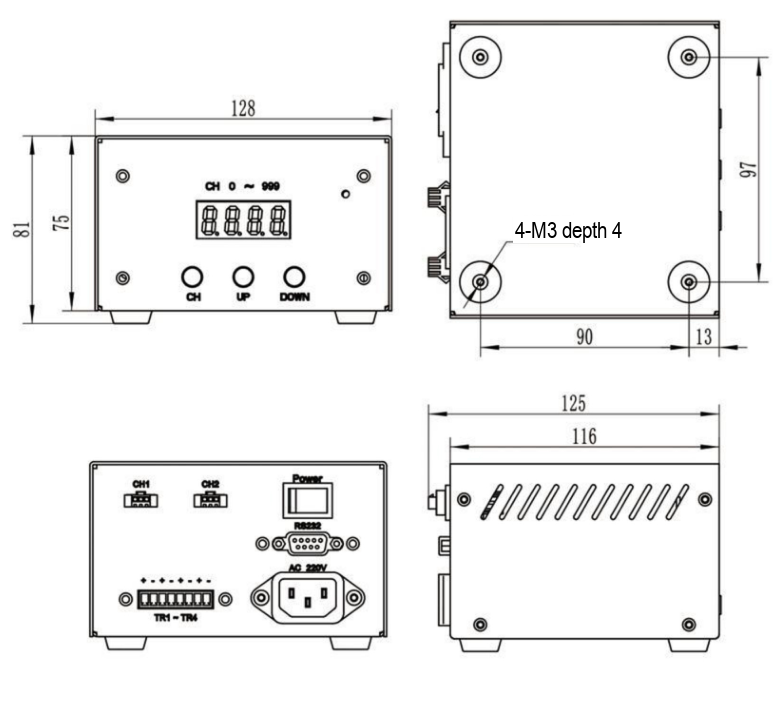

| Dimension | 128x125x81mm |
|---|---|
| Shipping weight | 0.65 kg |
