Light controllers

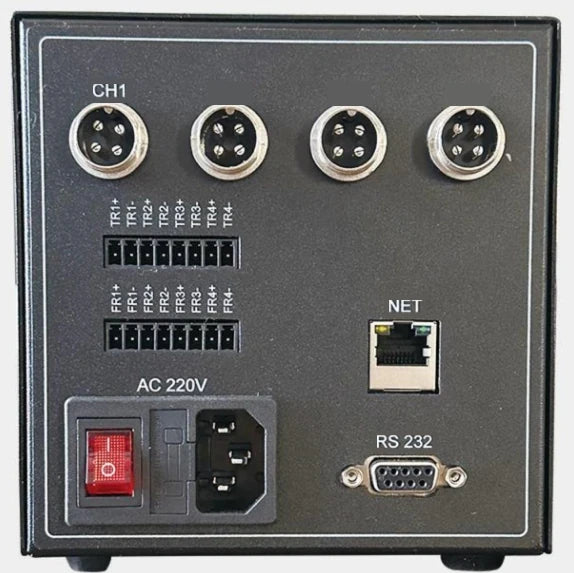

High speed time-sharing strobe controller, 4 ch, 350 W (LS-CTL-0403)
Model LS-CTL-0403
- Channels4 channels
- Total output350 W
- ControlSerial port/network port
- OutputConstant voltage 48 V
$569.00
Ships in 2-3 weeks
1.95 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Built in 48V (optional 24V) switching power supply. Supports RS232/100Mbps Ethernet communication. Having multiple input and output interfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0403 |
|---|---|
| Signal operation | frequency division |
| Working mode | Internal trigger/external trigger |
| Internal signal frequency | 1~100KHz |
| Control | digital / RS232 / Ethernet |
Interfaces and I/O
| Signal communication | Serial port/network port |
|---|
Light
| Luminous mode | Strobe light |
|---|---|
| Connected light source type | 48V power supply |
Environment and compliance
| Working environment temperature | -5~50°C |
|---|
Electrical
| Number of channels | 4 channels |
|---|---|
| Built-in power supply | 350W |
| Maximum output current of a single channel | Instantaneous 10A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 24V/48V |
| Short-circuit protection | NO |
| Input signal | Single ended signal/differential signal |
| Strobe pulse width time | 10~999us |
| Strobe response time | ≤500ns |
| Trigger method | Edge triggered |
| Built-in power supply power | 350W |
| Total output (W) | 350 |
Mechanical

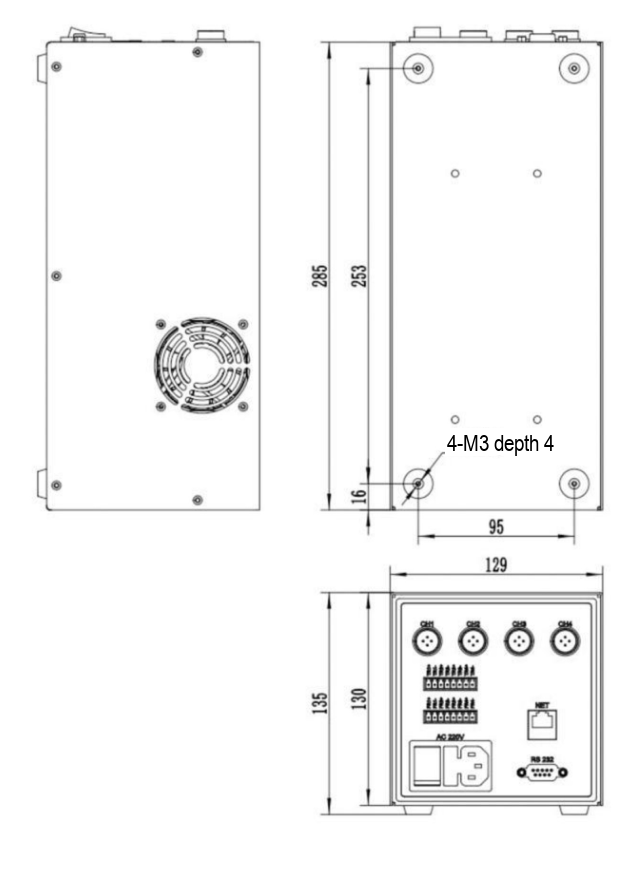

| Dimension | 129x285x129mm |
|---|---|
| Shipping weight | 1.95 kg |
