Touch-screen time-sharing strobe controller, 4 channels (LS-CTL-S78)
  • Touch-screen time-sharing strobe controller, 4 channels (LS-CTL-S78)

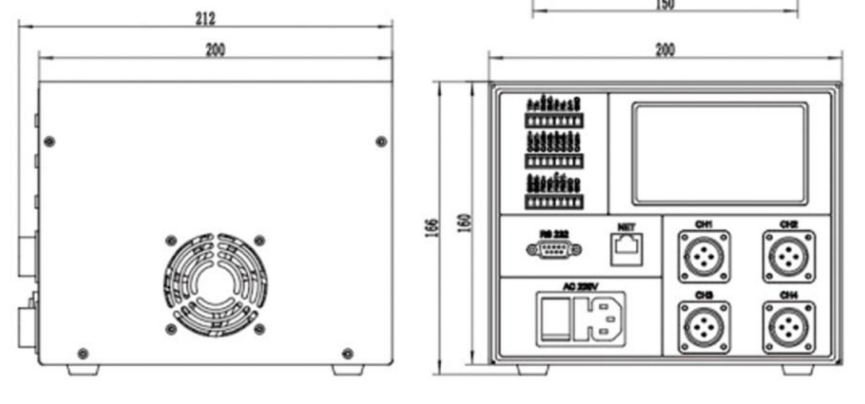

  • LS-CTL-0400 dimensions (mm)

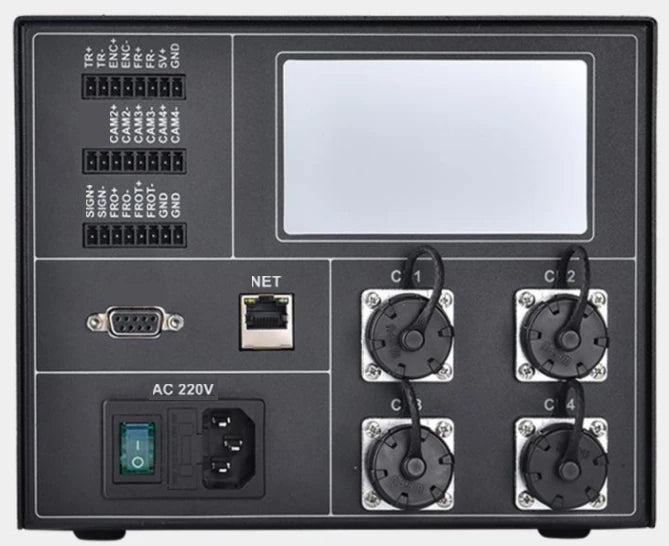

Representative photo of this series

Light controllers

Touch-screen time-sharing strobe controller, 4 ch, 500 W (LS-CTL-0402)

Model LS-CTL-0402

  • Channels4
  • Total output500 W
  • ControlRS232 / 100M Ethernet
  • TriggerEdge Trigger
$669.00

Ships in 2-3 weeks

2.4 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Touch-screen time-sharing strobe controller, 4 ch, 500 W (LS-CTL-0402)LS-CTL-0402

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Color LCD display, touch screen to set the frequency and mode manually. Support RS232/100M Ethernet communication. Built-in 24V/48V switching power supply.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0402
Signal operationFrequency Doubling / Dividing
Operating modesInternal trigger/external trigger
Controltouch screen (colour LCD) / RS232 / Ethernet

Interfaces and I/O

CommunicationRS232 / 100M Ethernet

Light

Light emitting modeStrobe
Connected light source type48V light source

Environment and compliance

Operating temperature-5~50°C

Electrical

Maximum output current per channelInstantaneous 10A
Maximum input voltageAC220V
Maximum output voltage24V/36V/48V
Short-circuit protectionYES
Input signalSingle-ended signal, differential signal
Strobe pulse width time1/Signal Source Frequency
Strobe response time≤500ns
Trigger modeEdge Trigger
Driving modeConstant voltage
Built-in power supply power500W
Number of channels4
Total output (W)500

Mechanical

Dimension200x212x166mm
Shipping weight2.40 kg

Other models in the Touch-screen time-sharing strobe controller, 4 channels (LS-CTL-S78) series

See all 3 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0400 4 ch, 500 W $669.00 Ships in 2-3 weeks View
LS-CTL-0401 4 ch, 500 W $669.00 Ships in 2-3 weeks View
