High speed strobe controller, 4 channels (LS-CTL-S77)
  • High speed strobe controller, 4 channels (LS-CTL-S77)

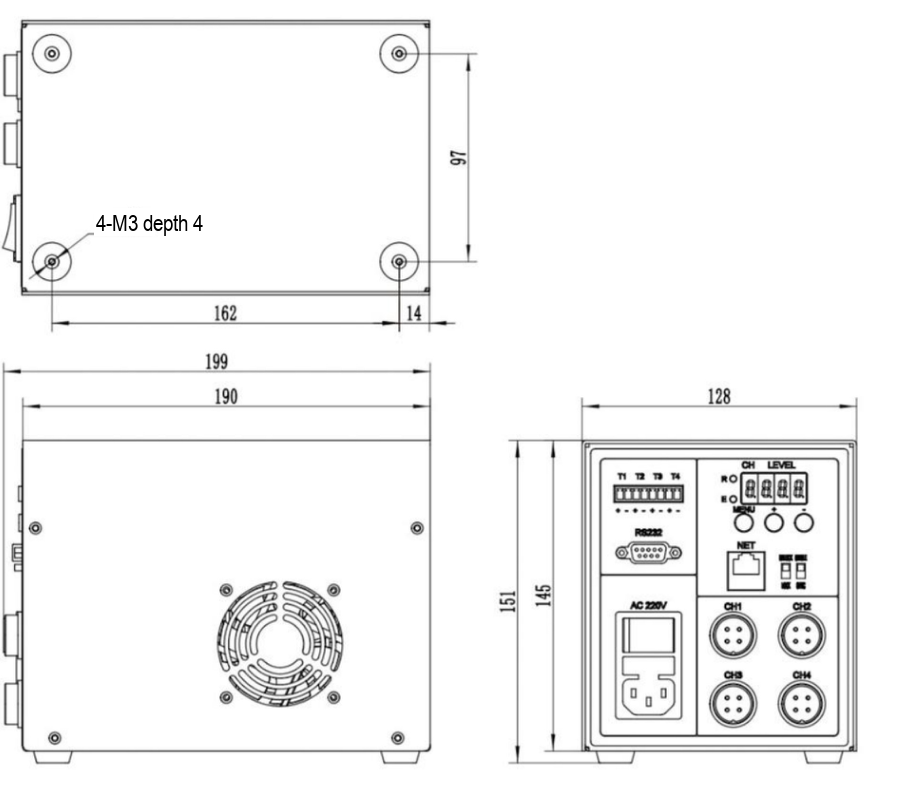

  • LS-CTL-0396 dimensions (mm)

Representative photo of this series

Light controllers

High speed strobe controller, 4 ch, 350 W (LS-CTL-0397)

Model LS-CTL-0397

  • Channels4
  • Total output350 W
  • OutputConstant voltage 48 V
  • ControlAnalog
$559.00

Ships in 2-3 weeks

1.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

High speed strobe controller, 4 ch, 350 W (LS-CTL-0397)LS-CTL-0397

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Supports RS232/100M Ethernet communication. Built-in 48V switching power supply. Trigger time with low latency (less than 500ns).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0397
Operating modesInternal trigger/external trigger
Internal signal frequency1-200KHz
Signal dithering0-99us
Controldigital (buttons, 4-digit display) / RS232 / Ethernet

Interfaces and I/O

CommunicationRS232; 100Gb Ethernet

Light

Connected light source type24V/48V light source
Light emitting modeStrobe

Environment and compliance

Operating temperature-5~50°C

Electrical

Maximum output current per channelInstantaneous 20A
Maximum input voltageAC220V
Maximum output voltage24/36/48V
Short-circuit protectionNO
Strobe pulse width time1~999us
Trigger response time<500ns
Driving modeConstant voltage
Built-in power supply power350W
Number of channels4
Total output (W)350

Mechanical

Dimension128x199x151mm
Shipping weight1.65 kg

Other models in the High speed strobe controller, 4 channels (LS-CTL-S77) series

See all 4 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0396 4 ch, 350 W $559.00 Ships in 2-3 weeks View
LS-CTL-0398 4 ch, 350 W $559.00 Ships in 2-3 weeks View
LS-CTL-0399 4 ch, 1000 W $949.00 Ships in 2-3 weeks View
