Light controllers

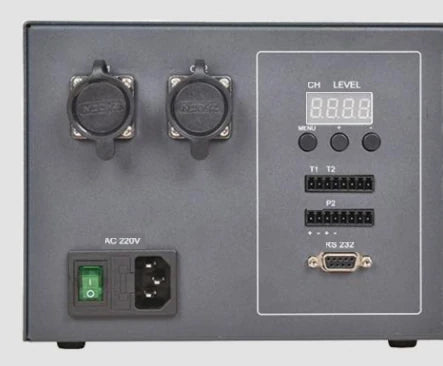

High power high-speed hybrid strobe controller, 2 ch, 700 W (LS-CTL-0395)

Model LS-CTL-0395

Channels2 channels
Output48V
Total output700 W
Control9600-115200bps optional

$709.00

Ships in 2-3 weeks

1.9 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Controller section 'High power high-speed hybrid strobe controller' of the light controller selection manual (cards P63).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0395
Response speed	500ns
Working mode	Internal trigger/external trigger
Feature 1	Automatic saving of data on power failure
Manual page code	P63
Control	digital (buttons, 4-digit display) / RS232

Interfaces and I/O

Communication baud rate	9600-115200bps optional
Communication	RS232

Light

Connection light source type	24/48V light source
Luminous mode	Strobe light
Connected light source type	24/48V light source

Environment and compliance

Working environment temperature	-5~50°C

Electrical

Maximum output current per channel	Instantaneous 20A
Maximum input voltage	AC220V
Maximum output voltage	48V
Overheat protection	HAVE
Trigger method	Edge
Number of channels	2 channels
Strobe pulse width time	10~999us
Internal trigger cycle value	10~999ms
Built-in power supply power	700W
Output voltage	48V
Built-in power supply	700W
Max current per channel	20A
Trigger	5~24V trigger
Total output (W)	700

Mechanical

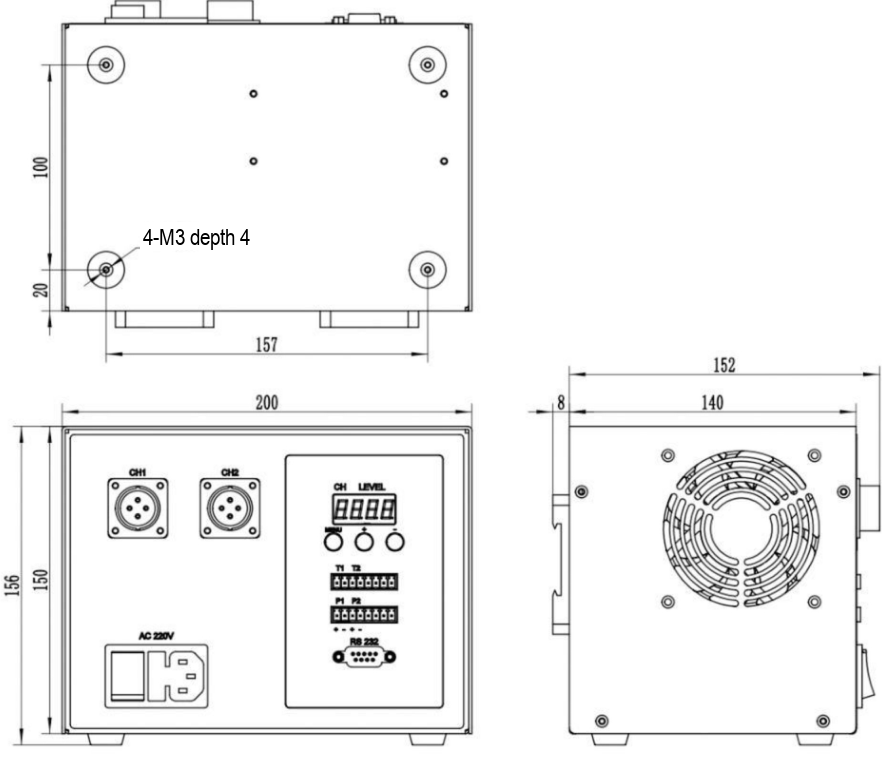

Dimension	200x152x156mm
Shipping weight	1.90 kg
