High speed hybrid strobe controller, 4 channels (LS-CTL-S75)

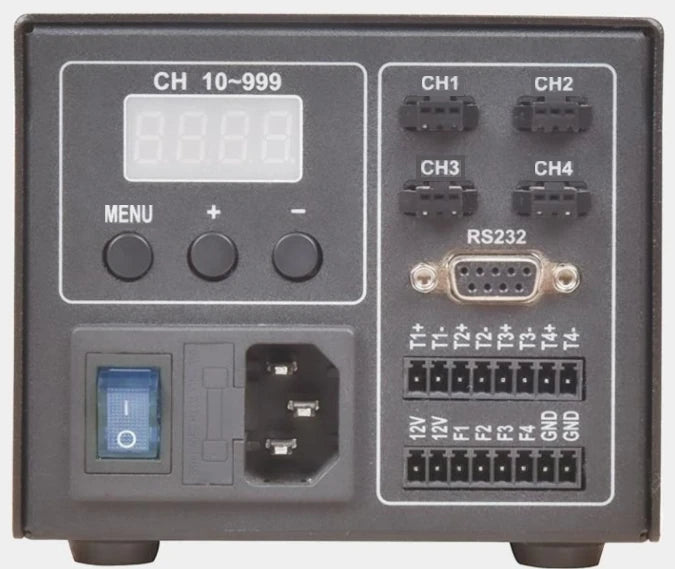

Representative photo of this series

Light controllers

High speed hybrid strobe controller, 4 ch, 120 W (LS-CTL-0394)

Model LS-CTL-0394

Channels4 channels
Total output120 W
Control9600-115200bps optional
OutputConstant voltage 48 V

$289.00

Ships in 2-3 weeks

0.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Supports RS232 communication. Support external/internal triggering modes. Low trigger response time.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0394
Response speed	500ns
Working mode	Internal trigger/external trigger
Control	digital (buttons, 4-digit display) / RS232

Interfaces and I/O

Communication baud rate	9600-115200bps optional

Light

Connection light source type	24V light source
Luminous mode	Strobe light
Connected light source type	24V light source

Environment and compliance

Working environment temperature	-5~50°C

Electrical

Maximum output current per channel	Instantaneous 20A
Maximum input voltage	AC220V
Maximum output voltage	24/48V
Overvoltage protection	NO
Trigger method	Edge
Number of channels	4 channels
Strobe pulse width time	10~999us
Internal trigger cycle value	10~999ms
Built-in power supply power	120W
Total output (W)	120

Mechanical

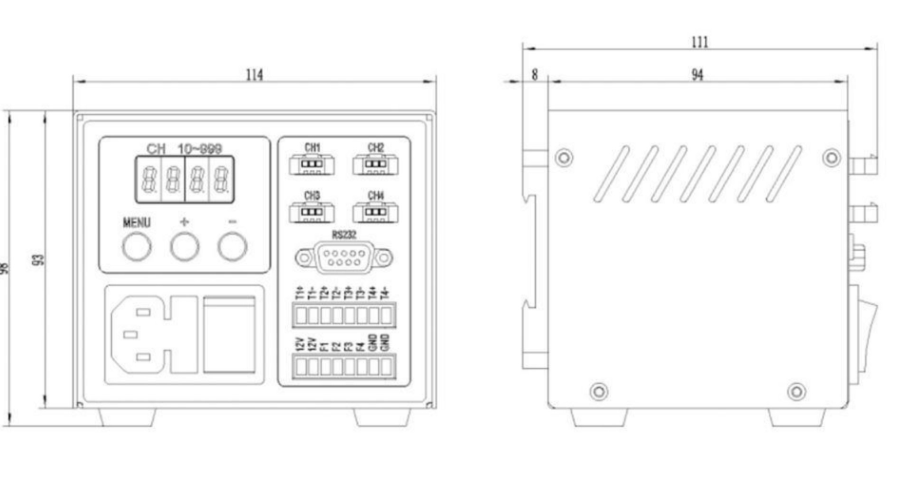

Dimension	121x118x90mm
Shipping weight	0.65 kg

Other models in the High speed hybrid strobe controller, 4 channels (LS-CTL-S75) series

See the category

Model	Size / key data	Price	Availability	Link
LS-CTL-0393	4 ch, 120 W	$289.00	Ships in 2-3 weeks	View
