Hybrid strobe controller, 2/4 channels (LS-CTL-S74)
  • Hybrid strobe controller, 2/4 channels (LS-CTL-S74)

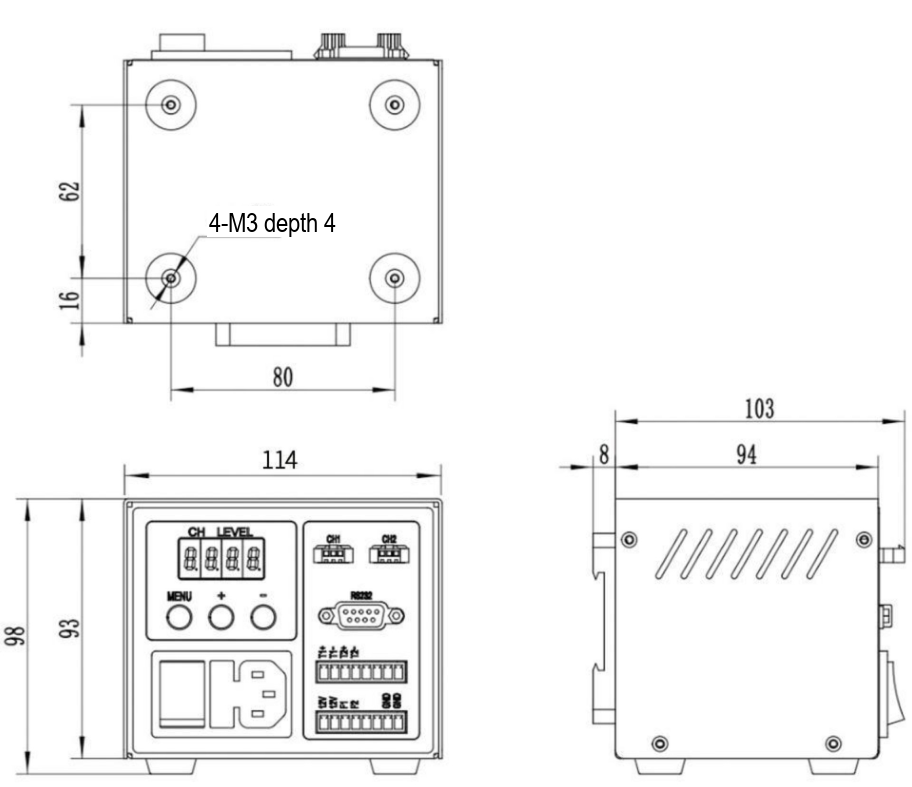

  • LS-CTL-0387 dimensions (mm)

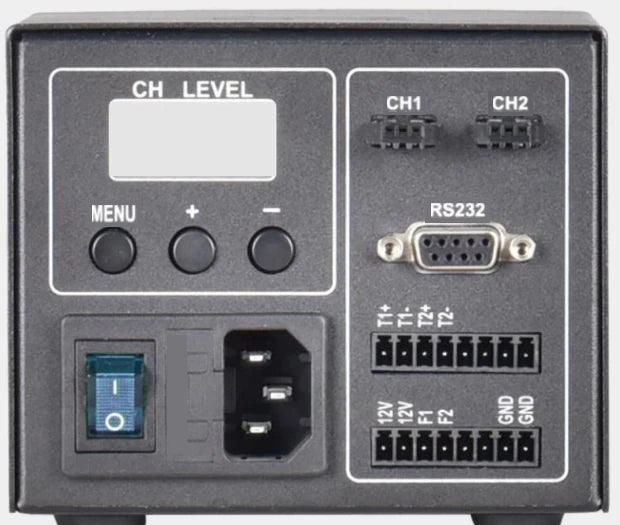

Representative photo of this series

Light controllers

Hybrid strobe controller, 4 ch, 65 W (LS-CTL-0388)

Model LS-CTL-0388

  • Channels4
  • Total output65 W
  • TriggerEdge (valid in external trigger mode)
  • OutputConstant voltage 48 V
$259.00

Ships in 2-3 weeks

0.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Hybrid strobe controller, 4 ch, 65 W (LS-CTL-0388)LS-CTL-0388

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Support RS232 communication. Built-in 48V switching power supply. Low trigger response time (≤10us).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0388
Operating modesInternal trigger/external trigger
Controldigital (buttons, 4-digit display) / RS232

Light

Light emitting modeStrobe
Connected light source type10mA~2.5A 24V power supply

Environment and compliance

Operating temperature-5~50°C

Electrical

Maximum output current per channelInstantaneous 20A
Maximum input voltageAC220V
Maximum output voltage48V
Overheat protection65W none, all others have
Short-circuit protectionNO
Internal trigger cycle value10~999ms
Strobe pulse width time10~999us
Strobe delay time0~99us
Baud rate9600-115200bps optional
Trigger modeEdge (valid in external trigger mode)
Driving modeConstant voltage
Built-in power supply power65W
Number of channels4
Total output (W)65

Mechanical

Dimension114x111x98mm
Shipping weight0.65 kg

Other models in the Hybrid strobe controller, 2/4 channels (LS-CTL-S74) series

See all 6 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0387 2 ch, 65 W $209.00 Ships in 2-3 weeks View
LS-CTL-0390 2 ch, 120 W $229.00 Ships in 2-3 weeks View
LS-CTL-0389 4 ch, 120 W $289.00 Ships in 2-3 weeks View
LS-CTL-0391 4 ch, 120 W $289.00 Ships in 2-3 weeks View
LS-CTL-0392 4 ch, 200 W $329.00 Ships in 2-3 weeks View
