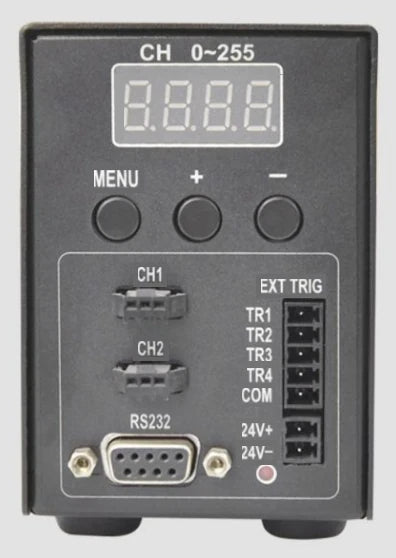

Representative photo of this series
Light controllers
External power controller, 4 ch (LS-CTL-0381)
Model LS-CTL-0381
- Channels4
- Output24V
- ControlRS232
- Built-in power supplyNo
$479.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Controller section 'External power controller' of the light controller selection manual (cards P26-P30).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0381 |
|---|---|
| Manual page code | P27 |
| Control | Digital (display + buttons) / RS232 |
Interfaces and I/O
| Communication | RS232 |
|---|
Electrical
| Output voltage | 24V |
|---|---|
| Number of channels | 4 |
| Built-in power supply | No |
| Max current per channel | 4A |
| Trigger | 5~24V trigger |
Mechanical
| Mounting | Screw or C45 rail installation |
|---|---|
| Shipping weight | 0.50 kg |
Other models in the External power controller (LS-CTL-S72) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0380 | 2 ch | $349.00 | Ships in 2-3 weeks | View |
