Light controllers

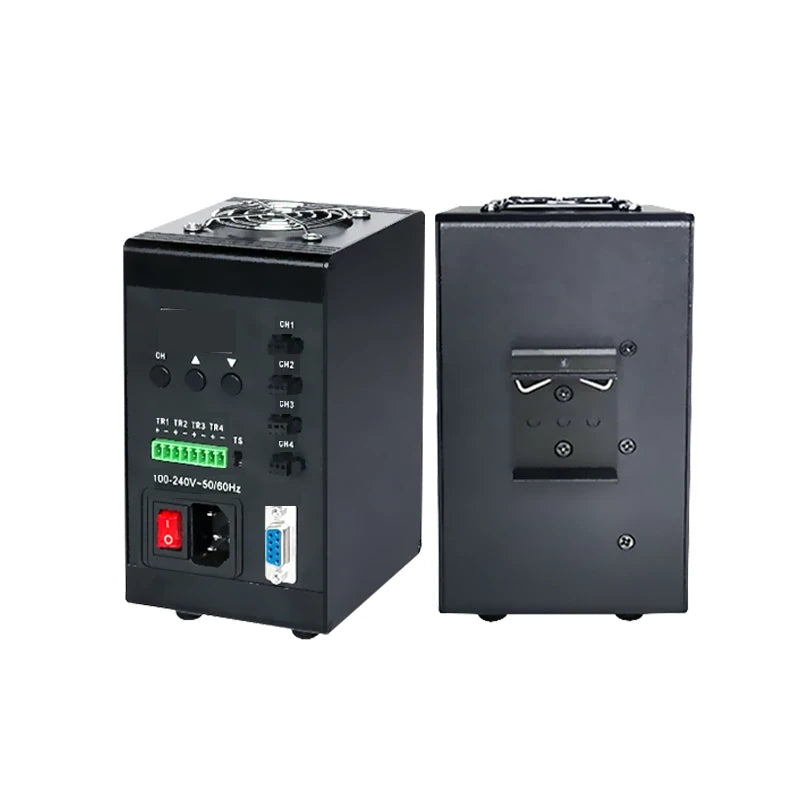

Two / four / eight channel standard digital controller, 4 ch, 60 W (LS-CTL-0279)

Model LS-CTL-0279

Channels4
OutputDC14.0V~24.0V
Total output60 W
Control9600

$319.00

Ships in 2-3 weeks

1.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Second generation standard digital constant-current controller, 2, 4 or 8 channels, 100-220V AC input, key and RS232 brightness control in 255 levels, passive external trigger. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0279
Control mode	Constant current
Manual adjustment	yes (adjust by key)
Remote adjustment	yes (through the upper computer software)
Type	Digital Standard

Interfaces and I/O

RS232 communication baud rate	9600

Light

Luminance level memory	yes (memory automatically remembered 8 seconds after adjustment)
Adjustable brightness level	Level 255 (long press rough adjustment, short press fine adjustment; also adjustable by PC software)

Environment and compliance

Work environment	Temperature: -10~50 °C, Humidity: 20~80%
Storage environment	Temperature: -20~70 °C, Humidity: 10~90%
Operating temperature	-10~50 ℃
Operating humidity	20~80%
Storage temperature	-20~70℃
Storage humidity	10~90%

Electrical

Output voltage range	DC14.0V~24.0V
External trigger mode	Passive triggering (effective trigger voltage range 5-24V DC)
External trigger delay time	H, ON→OFF <15us; H, OFF→ON <15us (H = high level trigger)
External trigger frequency	<1/T (determined by the strobe time, e.g. T=1ms gives at most 1KHz)
Standby power consumption	<3W
Current	DC
Input Volt	AC220V
Output Volt	24V
Output Power Per Channel	15W
Trigger	Yes
Input Volt	100-200VAC
Power/CH	15W
Output voltage	24V
External trigger	yes
Channels	4
Total output (W)	60

Mechanical

Weight	0.9Kg

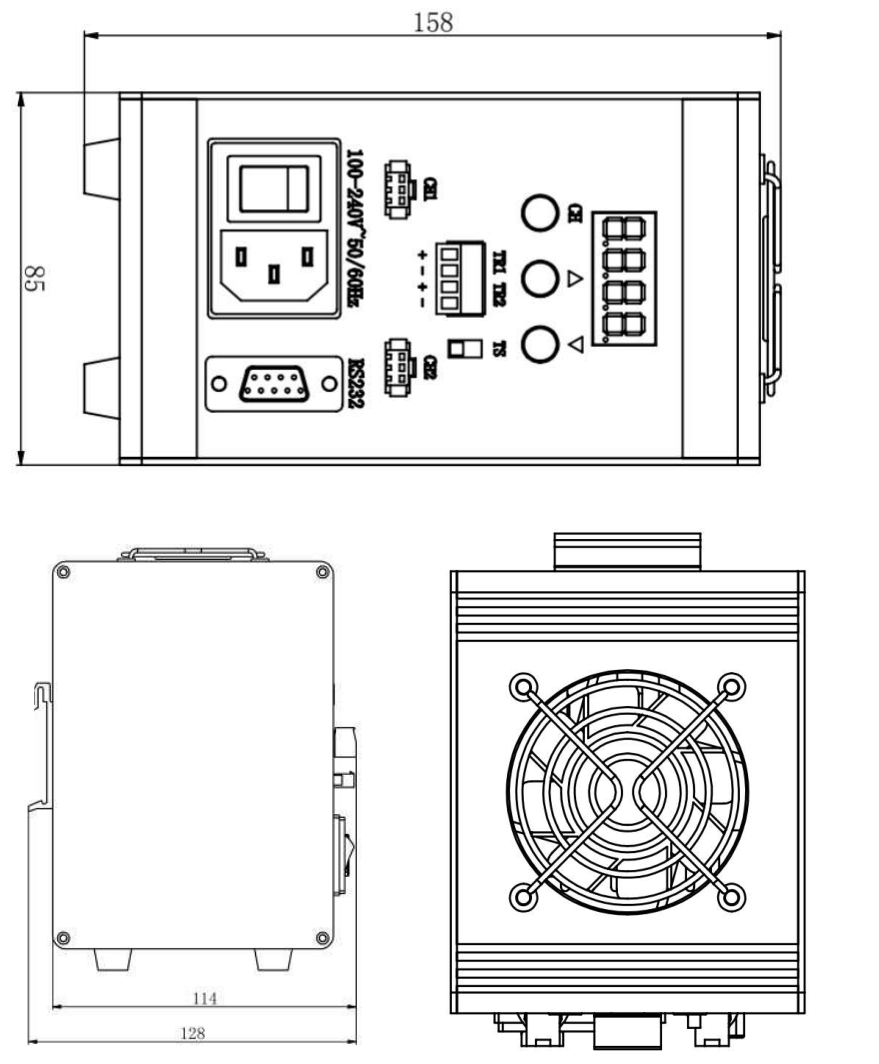

Boundary dimension (mm)	128x85x158mm (LxWxH)

Downloads

Datasheet (PDF)LS-CTL-0279 · 2.9 MB

Features

Exquisite appearance
Easy installation
Add guide buckle (DIN rail clip)
Easy operation
Operation panel front
Noiseless fan
High power
Strong heat dissipation
Constant current stable output/no strobe
Adjust by key or upper computer software (RS232)
Luminance level memory
Eight channel version: large number of channels
4 trigger modes.
Abnormal light source protection.
Automatic adaptation of light source power.
Automatic memory function, no data loss during power outage.
Very stable output and no flicker.

Applications

Powering machine vision LED light sources, brightness control and strobe (trigger) control
