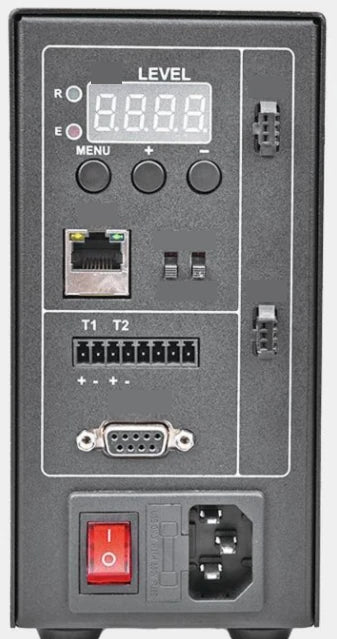

Representative photo of this series
Light controllers
Digital point light controller, Ethernet, 4 ch, 65 W (LS-CTL-0216)
Model LS-CTL-0216
- Channels4
- Total output65 W
- TriggerEdge + level trigger
- OutputConstant current
$319.00
Ships in 2-3 weeks
0.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Support RS232 communication. Support 100Gb Ethernet communication. Built-in 5V switching power supply.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0216 |
|---|---|
| Working mode | NORMAL: 0: Normally extinguished, 1: Bright, 2: Millisecond strobe; STROBE: 0: 1~999ms strobe, 1: 10~999 microseconds strobe |
| Control | digital (buttons, 4-digit display) / RS232 / Ethernet |
Interfaces and I/O
| Communication | RS232; 100Gb Ethernet |
|---|
Light
| Brightness level | 255 levels |
|---|---|
| Connection light source type | 5V point light source |
| Luminous mode | Normal light, normal extinction, constant Brightness, strobe |
| Connected light source type | 5V point light source |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Single channel instantaneous maximum current | 0.8A |
|---|---|
| Maximum input voltage | AC220V |
| Maximum output voltage | 5V |
| Overheat protection | NO |
| Short-circuit protection | NO |
| Millisecond strobe time | 1~999ms |
| Trigger mode | Edge + level trigger |
| Driving mode | Constant Current |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Total output (W) | 65 |
Mechanical

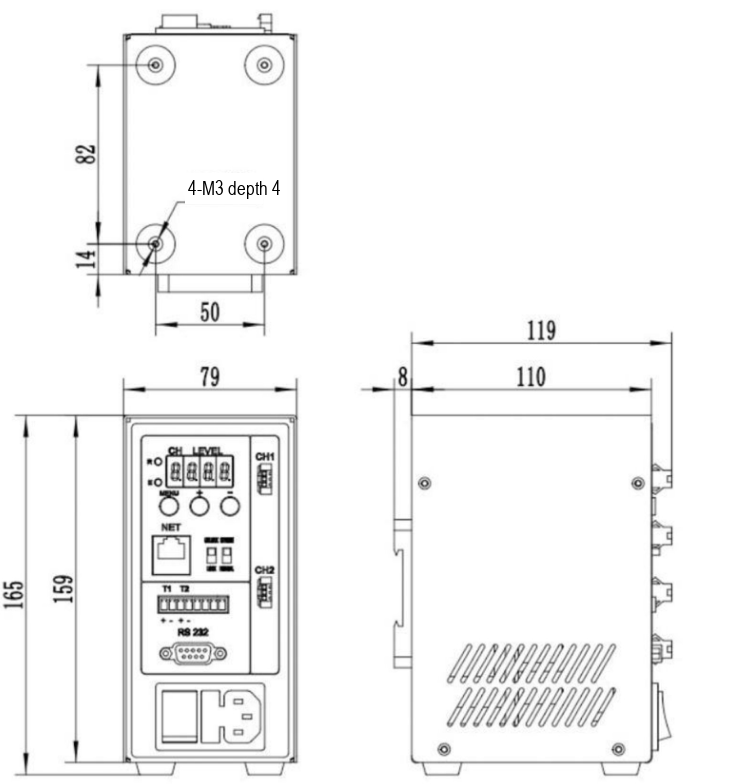

| Dimension | 79×127×165mm |
|---|---|
| Shipping weight | 0.80 kg |
Other models in the Digital point light controller, Ethernet, 2/4/8/16 channels (LS-CTL-S46) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0217 | 8 ch, 65 W | $459.00 | Ships in 2-3 weeks | View |
| LS-CTL-0218 | 16 ch, 65 W | $699.00 | Ships in 2-3 weeks | View |
