Constant current controller, high-speed strobe (L02)

Representative photo of this series

Light controllers

Constant current controller, high-speed strobe, 2 ch, 600 W (LS-CTL-0211)

Model LS-CTL-0211

Channels2
Output48V
Total output600 W
ControlRS232 communication, 100M Ethernet
TriggerEdge + level trigger

$719.00

Ships in 2-3 weeks

2.45 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

High-current digital constant current controllers (high-speed strobe series) with remote control through serial port and network port, temperature-controlled cooling and aviation-plug outputs.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0211
Control	Digital (4-digit display, buttons), RS232, 100M Ethernet
Working mode	0: normally extinguished, 1: normally light, 2: constant light

Interfaces and I/O

Communication	RS232 communication, 100M Ethernet
Light source interface	6-core aviation plug

Light

Brightness levels	255
Luminous mode	Constant brightness, constant out, constant brightness strobe
Connected light source type	24V light source

Environment and compliance

Operating temperature	-5~50°C

Electrical

Driving mode	Constant current
Max input voltage	AC220V
Overheat protection	Yes
Strobe time	1~999ms
Trigger	External trigger, edge + level
Trigger mode	Edge + level trigger
Built-in power supply power	600W
Number of channels	2
Max output current per channel	9/12.5A
Max output voltage	48V
Short-circuit protection	Yes
Total output (W)	600

Mechanical

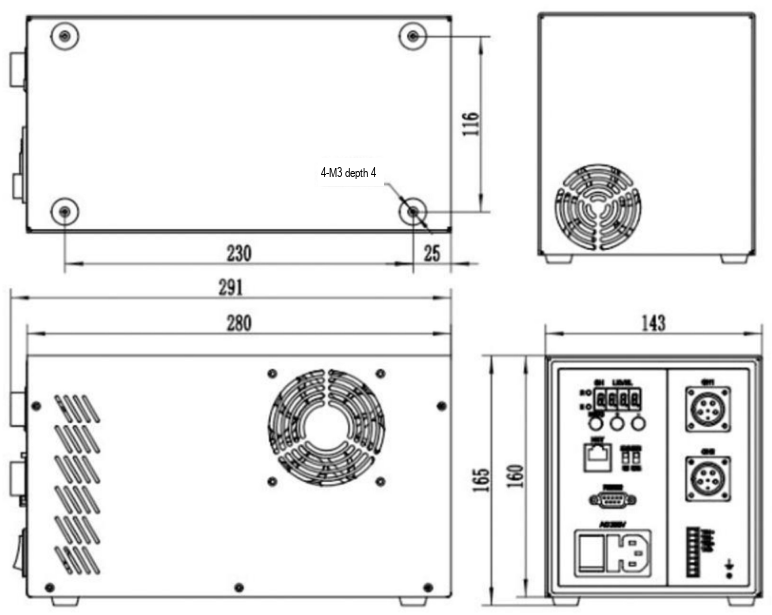

Dimensions (mm)	291 x 143 x 165
Shipping weight	2.45 kg

Downloads

Datasheet (PDF)LS-CTL-0211 · 987 KB

Features

Digital constant current controller
Output current up to 9A per channel
Constant current output, flicker-free brightness
Parameters saved in real time, no need to set them at every power-on
Remote parameter control via serial port and network port
Temperature-controlled heat dissipation
Trigger level can be set to adapt to different trigger modes
Trigger debounce filter, stronger anti-interference
Built-in output short circuit protection
Remote parameter setting through serial port and network port
Temperature-controlled cooling
