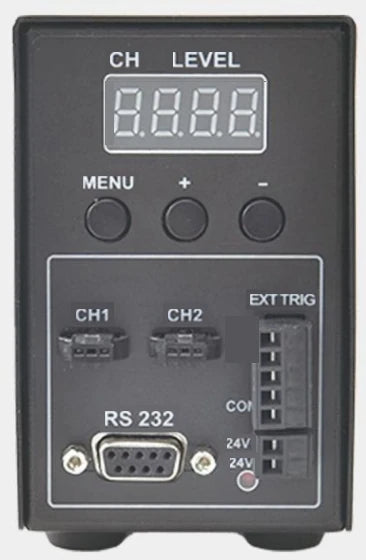

Representative photo of this series
Light controllers
Constant current controller, external 24 V supply, 4 ch (LS-CTL-0207)
Model LS-CTL-0207
- Channels4
- Output24V
- TriggerEdge + level trigger
- ControlDigital
$329.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Small digital constant current controller powered from an external 24V supply, with RS232, external triggering and millisecond and microsecond strobe.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0207 |
|---|---|
| Control | Digital (4-digit display, buttons), RS232 |
| Working mode | 0: normally extinguished, 1: always on, 2: millisecond strobe, 3: microsecond strobe |
Light
| Brightness levels | 255 |
|---|---|
| Connected light source type | 10mA~2A 24V power supply |
| Luminous mode | Normal light, frequently extinguished, strobe |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Baud rate | 9600-115200bps optional |
|---|---|
| Built-in power supply | No (external 24V supply) |
| Built-in power supply power | NO |
| Driving mode | Constant current |
| Max input voltage | 24V |
| Max output voltage | 24V |
| Microsecond strobe time | 1~999us |
| Millisecond strobe time | 1~999ms |
| Overheat protection | No |
| Short-circuit protection | No |
| Single channel instantaneous max current | 2A |
| Trigger | 5~24V external trigger, adaptable to high and low level trigger modes; edge + level |
| Trigger mode | Edge + level trigger |
| Number of channels | 4 |
Mechanical

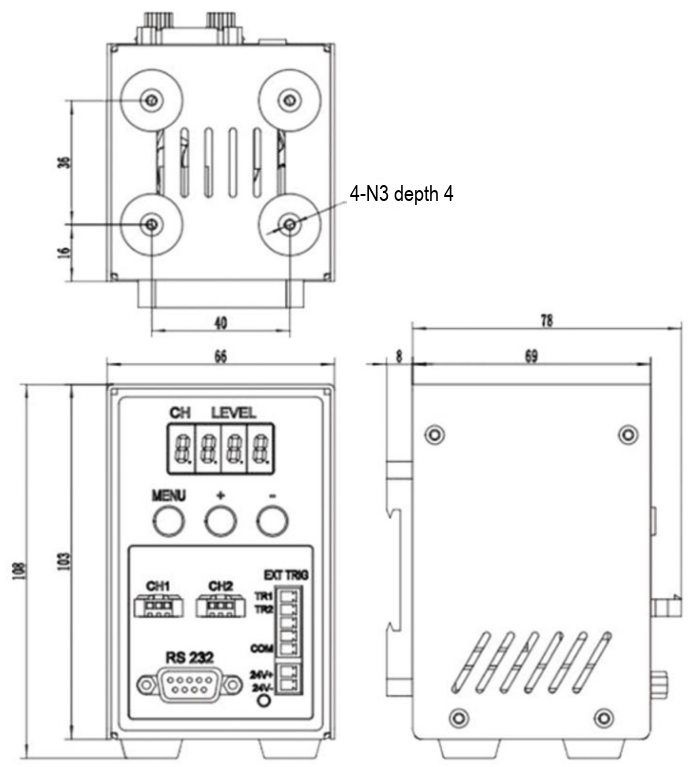

| Dimensions (mm) | 66 x 85.5 x 99 |
|---|---|
| Shipping weight | 0.40 kg |
Other models in the Constant current controller, external 24 V supply (LS-CTL-S43) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0206 | 2 ch | $239.00 | Ships in 2-3 weeks | View |
