Constant current hybrid controller (I20)
  • Constant current hybrid controller (I20)

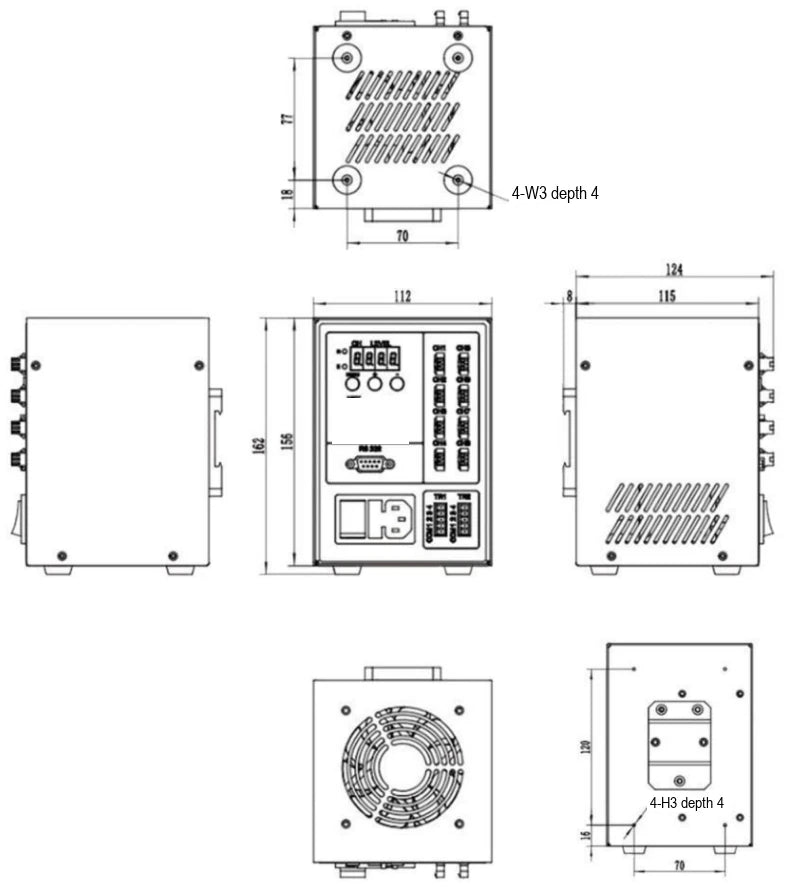

  • LS-CTL-0203 dimensions (mm)

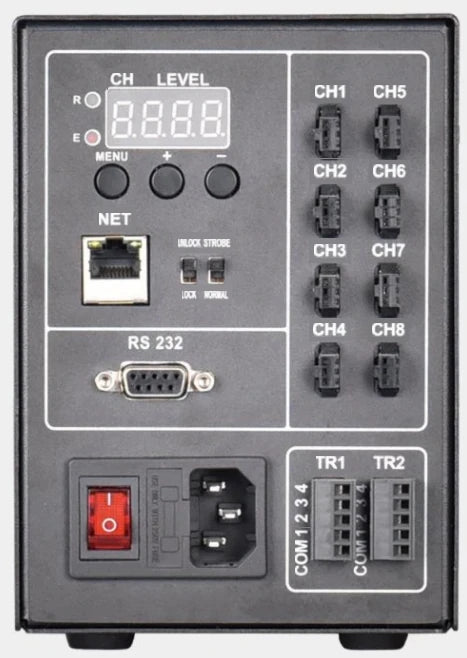

Representative photo of this series

Light controllers

Constant current hybrid controller, 8 ch, 120 W (LS-CTL-0203)

Model LS-CTL-0203

  • Channels8
  • Output24V
  • Total output120 W
  • ControlRS232 communication, 100M Ethernet
  • TriggerEdge + level trigger
$489.00

Ships in 2-3 weeks

1.1 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Constant current hybrid controller, 8 ch, 120 W (LS-CTL-0203)LS-CTL-0203

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Digital constant current controllers with built-in switching power supply, RS232/100M Ethernet, switchable constant light / strobe and millisecond and microsecond strobe; versions for 24V light sources and combined 24V + 5V point light sources.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0203
ControlDigital (4-digit display, buttons), RS232, 100M Ethernet
Working modeNORMAL: 0 normally extinguished, 1 bright, 2 millisecond strobe; STROBE: 0 1~999 ms strobe, 1 10~999 microseconds strobe

Interfaces and I/O

CommunicationRS232 communication, 100M Ethernet

Light

Brightness levels255
Connected light source type10mA~2A 24V power supply
Luminous modeNormal light, normal extinction, constant brightness, strobe

Environment and compliance

Operating temperature-5~50°C

Electrical

Driving modeConstant current
Max input voltageAC220V
Microsecond strobe time1~999us
Millisecond strobe time1~999ms
Trigger5~24V external trigger, adaptable to high and low level trigger modes; edge + level
Trigger modeEdge + level trigger
Built-in power supply power120W
Number of channels8
Single channel instantaneous max current2A
Max output voltage24V
Overheat protectionYes
Short-circuit protectionNo
Total output (W)120

Mechanical

Dimensions (mm)112 x 132 x 162
Shipping weight1.10 kg
