Light controllers

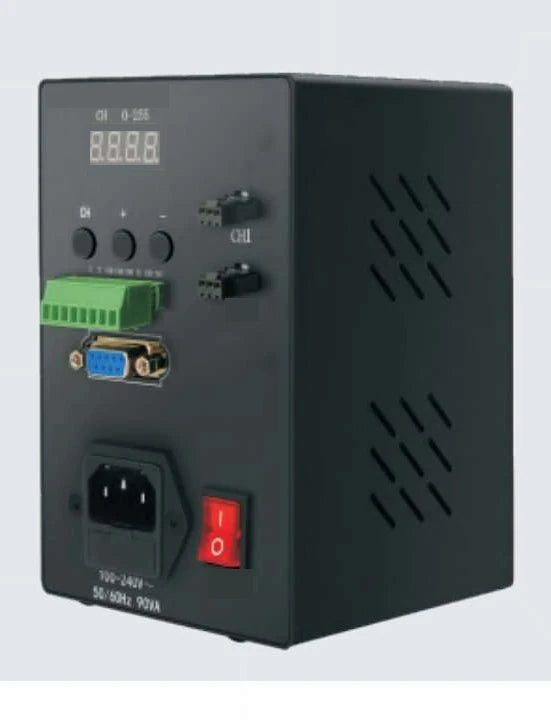

CPL constant current power supply, 2 ch (LS-CTL-0157)
Model LS-CTL-0157
- Channels2
- Output5V
- InputAC100-240V 50/60Hz
- Total output1.46A
- ControlFront-panel keys + RS232 serial port
$219.00
Ships in 2-3 weeks
0.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
The LS-CTL-0157 constant-current controller provides brightness-control power for LED spot lights; with only one channel loaded the rated output current reaches 730 mA. Brightness is controlled precisely from the front panel or by serial communication (remote control), 0-255 (256 steps); constant-on mode can be switched by serial command or external trigger. Suited to spot lights that need very stable brightness.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0157 |
|---|---|
| Control | Front-panel keys + RS232 serial port |
| Dimming | 0-255 (256 steps) |
| Control (perform) | KEY buttons, RS232 serial port |
Electrical
| Input voltage | AC100-240V 50/60Hz |
|---|---|
| Output voltage | 5V |
| Channel / output | C2 O2 (2 channels, 2 outputs) |
| Single channel current | 0-730mA |
| Total output current | 1.46A |
| Trigger input | Yes |
| Channels | 2 |
Mechanical
| Shipping weight | 0.70 kg |
|---|
