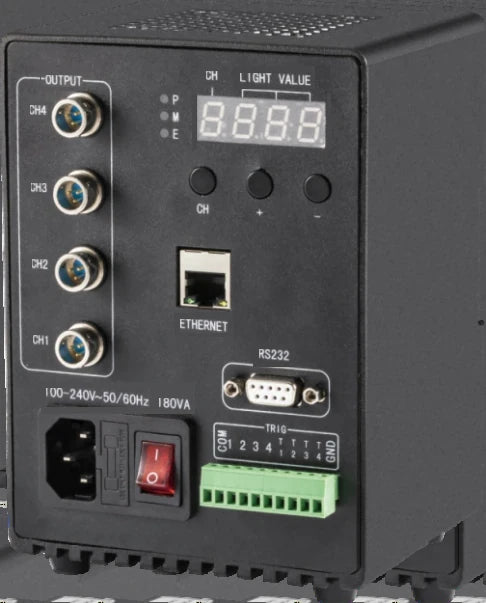

Strobe controller, 4 ch, 120 W (LS-CTL-0156)
Model LS-CTL-0156
- Channels4
- Output48V
- InputAC100-240V 50/60Hz
- Total output120 W
- ControlPanel buttons / RS232 / Ethernet
$299.00
Ships in 2-3 weeks
1.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Constant-voltage 4-channel strobe controller whose output pulse width can be set from 1 us to 999 us, suited to short-exposure flash lighting. It outputs the camera trigger signal automatically so the photo is taken at the same time as the flash.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0156 |
|---|---|
| Drive method | Constant voltage |
| Cooling | Forced cooling |
| Front panel rating label | 100-240V~50/60Hz 180VA |
| Control | Panel buttons / RS232 / Ethernet |
Environment and compliance
| Operating temperature/humidity | 0~40 °C, 20~85% RH (non-condensing) |
|---|---|
| Storage temperature/humidity | -20~60 °C, 20~85% RH (non-condensing) |
Electrical
| Input voltage | AC100-240V 50/60Hz |
|---|---|
| Channels | 4 |
| Output voltage | 48V |
| Max output | Peak value 50A (single channel) |
| Total power | 120W |
| Output port | dia.10-3 (1: Output+ 2: NC 3: Output-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <2μs |
| External trigger port | COM (common input, non-polar), 1-4 (CH1-CH4 external trigger input), T1-T4 (CH1-CH4 camera trigger signal), GND (camera trigger signal output negative pole) |
| Camera signal voltage | 12V |
| Strobe pulse width | 0-50μs |
| External trigger voltage | DC12V~24V (current about 5.6mA) |
| Trigger delay | <15μs |
| Total output (W) | 120 |
Mechanical
| Pulse width adjust mode | Panel button / RS232 / Ethernet |
|---|---|
| Pulse width | 1 us ~ 999 us |
| Mounting | C45 DIN rail 35 installation |

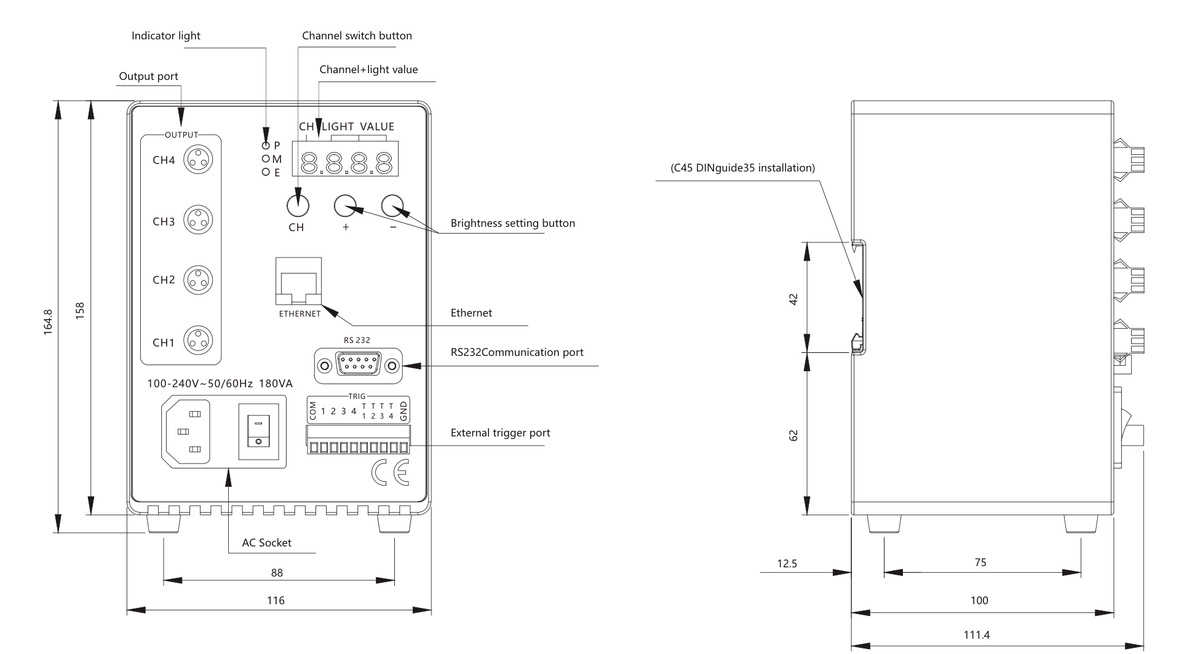

| Dimensions (mm) | 116 W x 111.4 D x 164.8 H (body 158 H, 100 D; foot spacing 88 / 75) |
| Weight | 950g or less |
