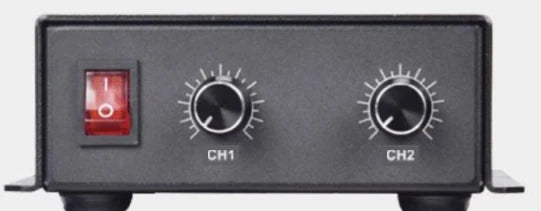

Compact analog point light controller, 2 ch, 10 W (LS-CTL-0096)
  • Compact analog point light controller, 2 ch, 10 W (LS-CTL-0096)

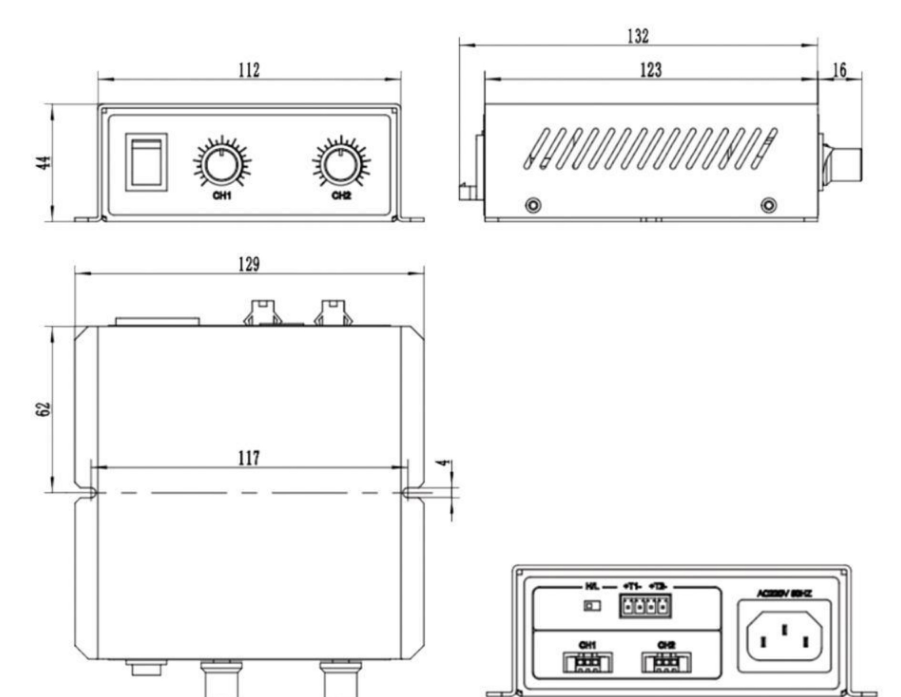

  • LS-CTL-0096 dimensions (mm)

Light controllers

Compact analog point light controller, 2 ch, 10 W (LS-CTL-0096)

Model LS-CTL-0096

  • Channels2
  • Total output10 W
  • Controlanalog knob
  • TriggerLevel Trigger
$219.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Compact analog point light controller, 2 ch, 10 W (LS-CTL-0096)LS-CTL-0096

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Analog constant current control. Support external trigger mode. Low trigger response time.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0096
Working modeConstant on mode, constant off mode
Controlanalog knob

Light

Brightness levelKnob stepless linear adjustment
Luminous modeConstant Brightness
Connected light source type5V point light source

Environment and compliance

Operating temperature-5~50°C

Electrical

Maximum output current of single channel0.75A
Maximum input voltage220VAC
Maximum output voltage5V
Overheat protectionNO
Short-circuit protectionNO
Trigger modeLevel Trigger
Driving modeConstant Current
Built-in power supply power10W
Number of channels2
Total output (W)10

Mechanical

Dimension129x148x44mm
Shipping weight0.50 kg
