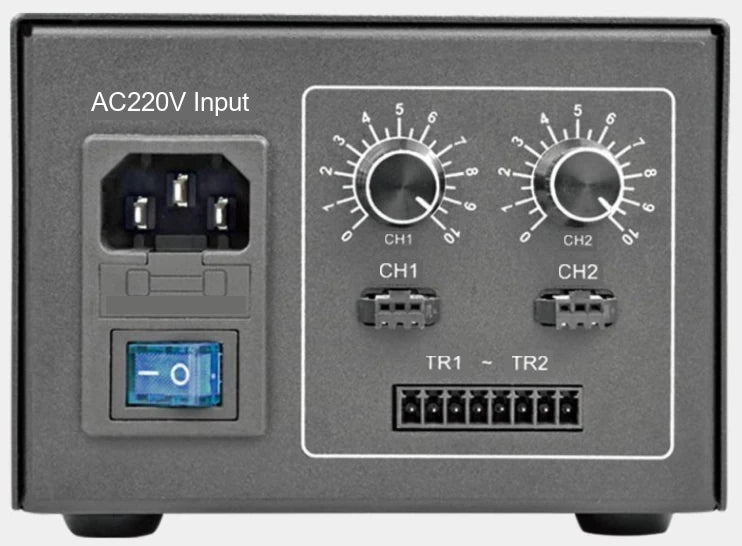

Analog point light controller, 2 ch, 65 W (LS-CTL-0095)
  • Analog point light controller, 2 ch, 65 W (LS-CTL-0095)

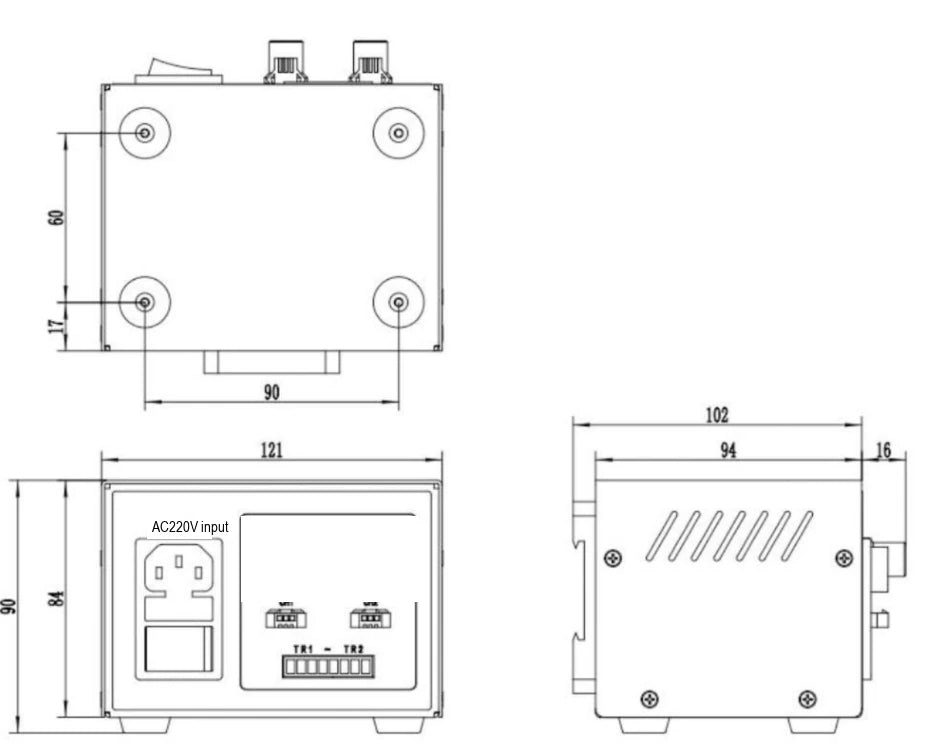

  • LS-CTL-0095 dimensions (mm)

Light controllers

Analog point light controller, 2 ch, 65 W (LS-CTL-0095)

Model LS-CTL-0095

  • ChannelsTwo channels
  • Total output65 W
  • Controlanalog knob
  • TriggerLevel Trigger
$249.00

Ships in 2-3 weeks

0.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Analog point light controller, 2 ch, 65 W (LS-CTL-0095)LS-CTL-0095

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Analog constant current control. Support external trigger mode. Low trigger response time.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0095
Working modeConstant on mode, constant off mode
Controlanalog knob

Light

Brightness levelKnob stepless linear adjustment
Connected light source type5V point light source
Luminous modeConstant Brightness

Environment and compliance

Operating temperature-5~50°C

Electrical

Maximum output current of single channel0.75A
Maximum input voltage220VAC
Maximum output voltage5V
Overheat protectionYES
Short-circuit protectionNO
Trigger modeLevel Trigger
Number of channelsTwo channels
Built-in power supply65W
Driving modeConstant Current
Built-in power supply power65W
Total output (W)65

Mechanical

Dimension121x118x90mm
Shipping weight0.65 kg

LS-CTL-0095

See this component from every angle.

Dimension-based illustration; details may differ from the product. Verify the dimensioned drawing.

Explore the visual library
LS-CTL-0095 — Light controllers, View 1 Dimension-based 3D

FROM THE PRINTED SPECIFICATIONS

Number of channels
Two channels
Maximum output voltage
5V
Maximum output current of single channel
0.75A
Dimension
121x118x90mm

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
