Representative photo of this series
Light controllers

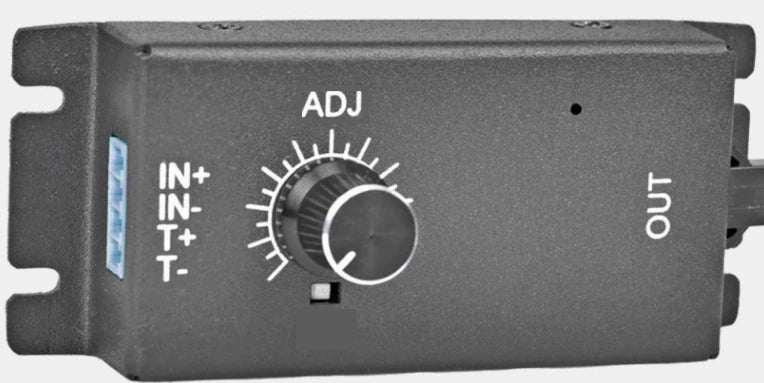

Mini analog point light controller, 1 ch, input voltage 5V (LS-CTL-0093)
Model LS-CTL-0093
- Channels1
- Input5V
- Controlanalog knob
- TriggerEdge + Level Trigger
$159.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Small size, can be applied to the narrow space installation. Stepless brightness adjustment. Support external trigger function, the response speed is less than (value not printed).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0093 |
|---|---|
| Adjustment knob | Adjust the brightness of the light source |
| Mode selection button | Select the mode of always on, always off |
| Control | analog knob |
Interfaces and I/O
| Power input interface | Input DC5V/24V |
|---|
Light
| Connection light source type | 5V point light source |
|---|---|
| Light source | Output DC5V |
| Connected light source type | 5V point light source |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum output current of single channel | 0.5A |
|---|---|
| Maximum input voltage | 5V/24V |
| Maximum output voltage | 5V |
| Overheat protection | NO |
| Short-circuit protection | NO |
| Trigger mode | Edge + Level Trigger |
| Output indication | Light source interface output indication |
| Built-in power supply power | NO |
| Number of channels | 1 |
| Input voltage | 5V |
| Driving mode | Constant current |
Mechanical

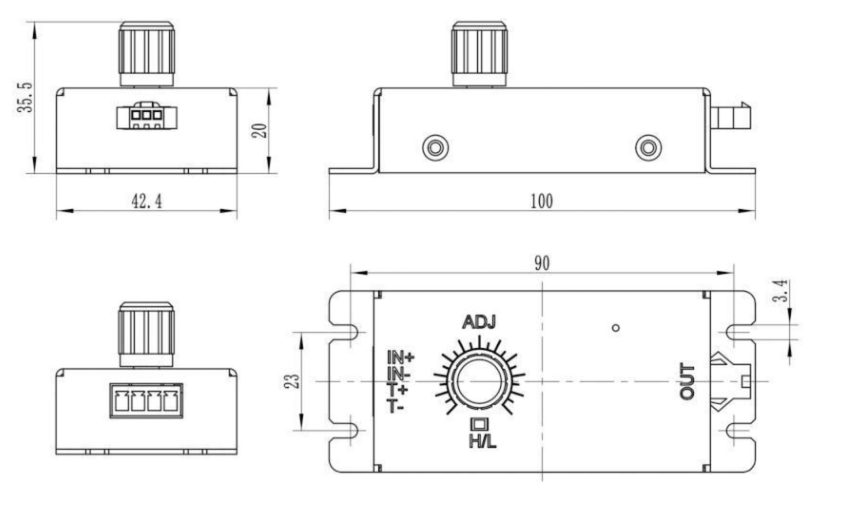

| Dimension | 100×42×36mm |
|---|---|
| Shipping weight | 0.25 kg |
Other models in the Mini analog point light controller, 1 channel (LS-CTL-S14) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0094 | 1 ch | $159.00 | Ships in 2-3 weeks | View |
