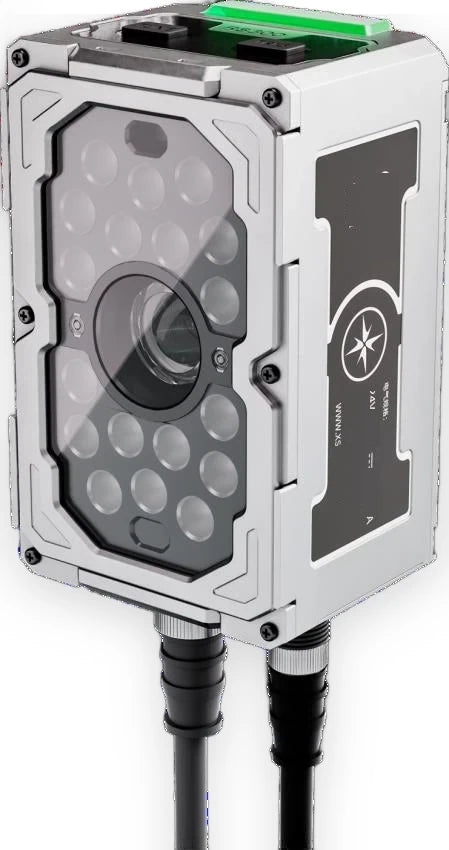

Representative photo of this series
Fixed code readers
Dual aviation plug LS-CRD-S05 series fixed industrial barcode reader, 2.5 MP, field of view D:30° (LS-CRD-0055)
Model LS-CRD-0055
- Resolution2048 x 1200
- Speed120FPS
- Focal length16 mm
- ShutterGlobal
$559.00
Ships in 2-3 weeks
0.59 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Top flagship fixed industrial barcode reader for complex scenarios such as extremely difficult codes, extremely small codes and high-speed lines; super resolution algorithm and 19 high-power illuminators read blurred and low-contrast 1D/2D codes, with a large field of view for packages of various sizes.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CRD-0055 |
|---|---|
| Support barcode | 2D: Datamatrix (ECC200), QR Code; 1D: Code39, Code93, Code128, EAN13, EAN8, UPC-E, interleaved 2 of 5 |
| Lighting system | Direct light (D), Polarized light (P), Uniform light (U) |
| Sight | 2 green LED dot aiming |
| Barcode level verification | ISO/IEC 15415, ISO/IEC 16022, ISO/IEC TR29158 (AIM DPM-1-2006) |
| Ordering note | The actual model needs to be confirmed before placing an order; the light source color is selected when ordering. |
| Lenses | 16mm (Standard) |
Optics
| Focus | Automatic focus system |
|---|---|
| Field of view | D:30° |
| Focal length (mm) | 16 |
Sensor and imaging
| Image sensor | 2048*1200 Pixel Global Shutter CMOS |
|---|---|
| Max acquisition frame rate | 120FPS |
| Resolution | 2048 x 1200 |
| Shutter | Global |
Interfaces and I/O
| Communication interface | Ethernet 100 Mbit/s, RS232 |
|---|---|
| Supported communication protocols | TCP/IP, RS232, EIP, Profinet, FTP, Modbus TCP |
Light
| Lighting color | Red / White / Blue |
|---|
Environment and compliance
| Ambient temperature | -10~50°C |
|---|---|
| Certification | CE, FCC, RoHS |
Electrical
| Input/Output IO | Non-polarized 2-way isolated IO input + Non-polarized 3-way isolated IO output |
|---|---|
| Powered by | 24V DC |
| Protection level | IP67 |
| Voltage | 24 V DC |
Mechanical
| Shipping weight | 0.59 kg |
|---|
Other models in the Dual aviation plug LS-CRD-S05 series fixed industrial barcode reader series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CRD-0054 | 2.5 MP | $559.00 | Ships in 2-3 weeks | View |
| LS-CRD-0056 | 2.5 MP | $559.00 | Ships in 2-3 weeks | View |
